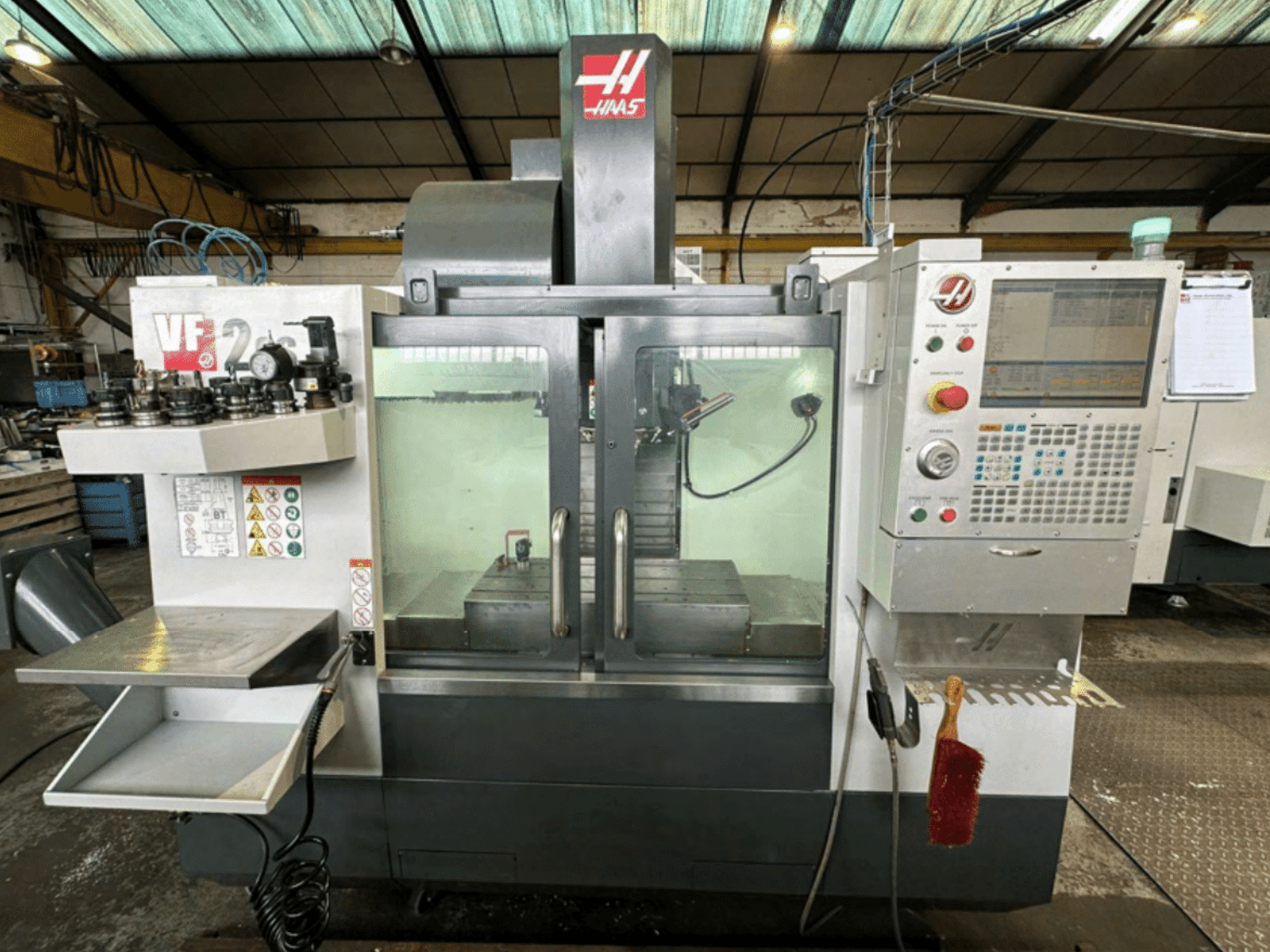

This 4-axis HAAS VF-2SS-EU vertical machining center was manufactured in 2018. It features a 762 mm X-axis travel, 406 mm Y-axis travel, and 508 mm Z-axis travel. Equipped with a BT-40 spindle achieving up to 12,000 rpm and a side-mount tool changer with a 30 + 1 tool capacity. Rapid traverse rates reach 35.6 m/min. Consider the opportunity to buy this HAAS VF-2SS-EU vertical machining center. Contact us for more information about this machine.
Overview
- brand: HAAS
- year: 2018
- MODEL: VF-2SS-EU
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
Technical Information - HAAS VF-2SS-EU
Dimensions
- Machine Height: 2800 mm
- Machine Length: 2700 mm
- Machine Weight: 3700 kg
- Table Load: 680 kg
Movement
- Number of Axes: 4
- X-axis Travel: 762 mm
- Y-axis Travel: 406 mm
- Z-axis Travel: 508 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Table: 914 × 356 mm, 3 T-slots, 16 mm (5/8") width, 125 mm spacing
Spindle:
Max torque: 120–125 Nm at low rpm
Rotation: CW/CCW programmable (M03/M04), orientation M19
Bearing lubrication: air/oil
Tool changer:
Side-mount SMTC super-speed, 30+1 stations
Tool-to-tool: ~1.6 s; chip-to-chip: ~2.2 s
Max tool: 5 kg; Ø 76 mm (adjacent full) / Ø 127 mm (adjacent empty); length 279 mm
Feedrates and performance:
Rapids (X/Y/Z): 35.6 m/min
Max cutting feed: 21 m/min
High acceleration (Super Speed) and high-speed machining activated
Probing (WIPS, Renishaw), fully integrated with Haas VPS:
Work probe: auto zeroing, contour measurement, hole centers, angled faces, position verification
Tool probe: length/diameter measurement, tool break detection
Coolant and pneumatics:
Flood coolant with 200 L tank; standard nozzle orientation + spindle ring
Mist lubrication for drilling/tapping
Compressed air: 6.5–7 bar (95–100 psi) for tool change and purges
Control and connectivity (Haas NGC, 15" color screen):
Program memory: 32 GB
UI: menus, file browser, offsets, VPS integrated
Connectivity: Wi‑Fi, Ethernet, front USB
Programming: macros (# variables, IF/THEN, WHILE, calculations), VPS editor, media display
Activated options/software:
Macros, rotation & scaling, rigid tapping, M19 spindle orientation
High-speed machining, VPS editor, media display
4th-axis capability (control), 32 GB memory, Wi‑Fi connectivity
Tool and work offsets, 12,000 rpm spindle, WIPS (workpiece + tool probe)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
