HAAS - UMC-750SSBA-MIL-HAA-2021-00001

Name: HAAS UMC-750SS
Brand: HAAS
SKU: BA-MIL-HAA-2021-00001
Price: 106450 GBP
Availability: InStock

£ 106,450

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS UMC-750SS For Sale | gindumac.com

Show in original language

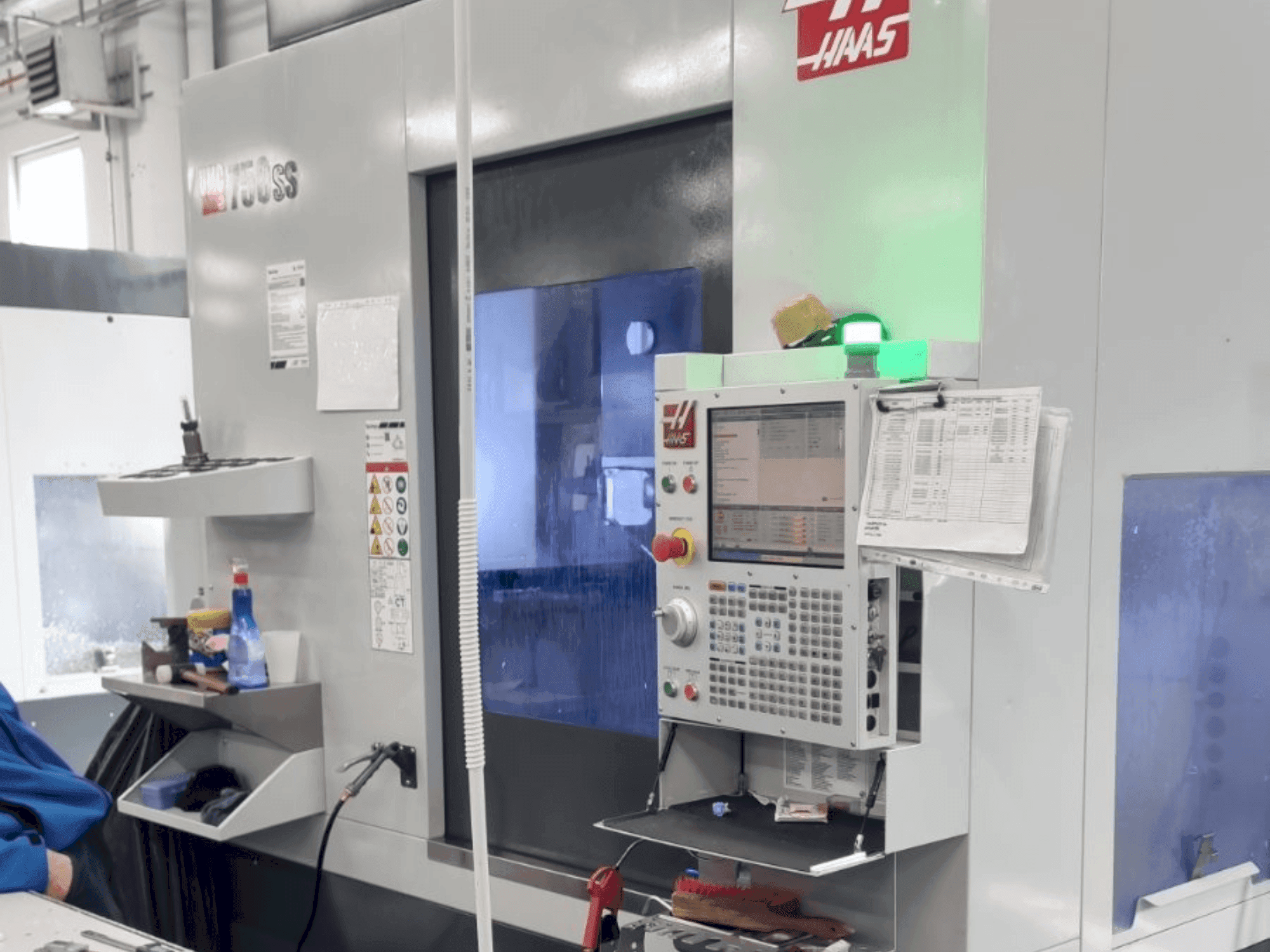

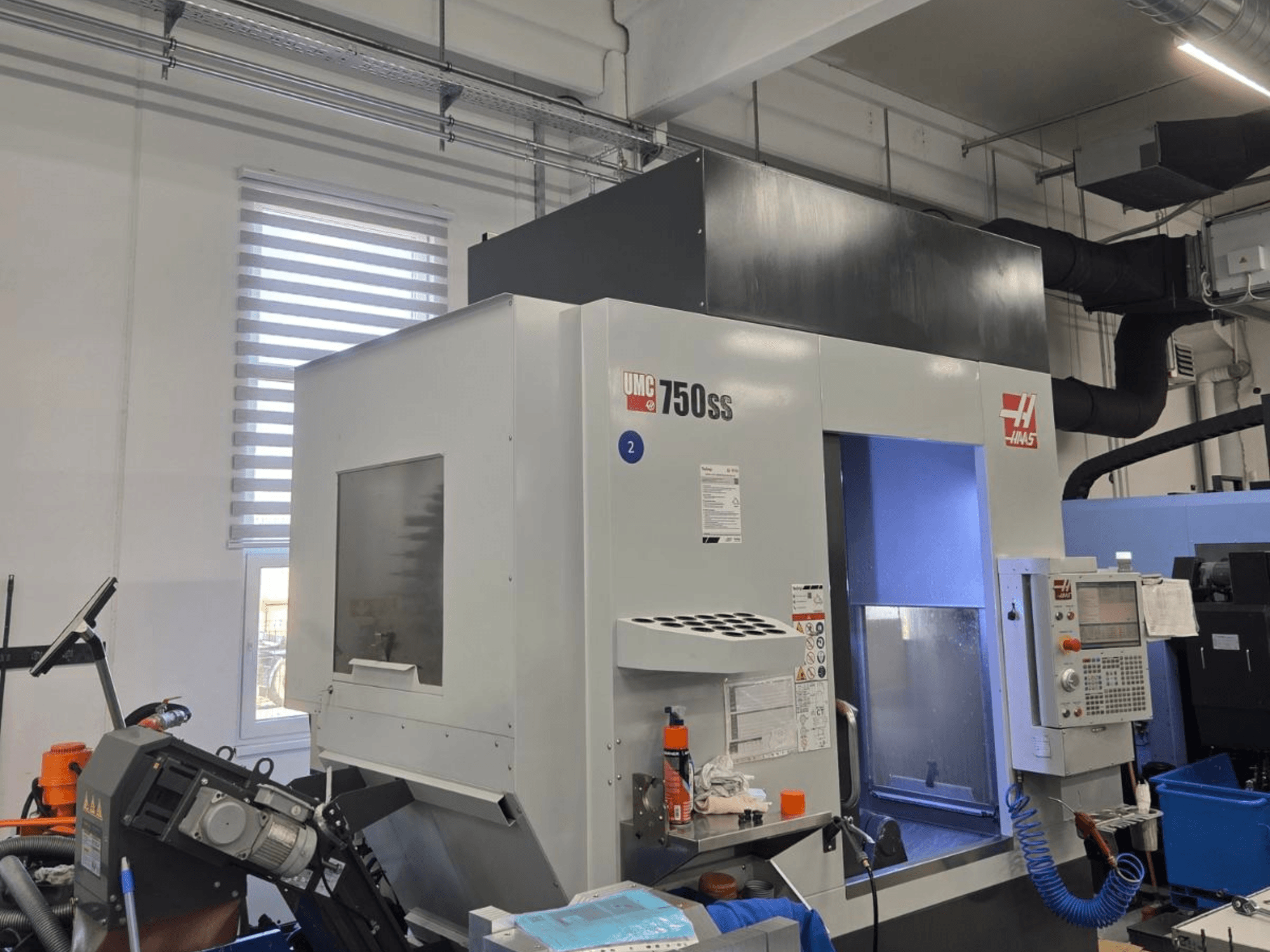

This 5-axis HAAS UMC-750SS vertical machining centre was manufactured in 2021. It features a 22.4 kW vector drive spindle motor with a 12,000 rpm spindle speed, a 30+1 tool side-mount tool changer and comes equipped with a wireless intuitive probing system (WIPS). Consider the opportunity to buy this HAAS UMC-750SS vertical machining centre. For more information about this machine, please reach out to us.

Overview

brand: HAAS
year: 2021
MODEL: UMC-750SS
application type: Milling
Location: Bosnia and Herzegovina
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC-750SS

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Additional Information

Additional equipment

Coolant tank – 208 liters with mobile cart
Programmable coolant pump (M-code controlled) // Programmable Coolant Nozzle (P-COOL)
Safe Run – crash and overload detection system
Control cabinet surge protection
Voltage fault detection module (EPFDM)
Second Home Position button
Remote Jog Handle with 2m cable (RJH-XL)
Memory lock key-switch
Rotary axis scales
Top cover

Machine Benefits

Technical Machine Benefits

30+1 tool side-mount tool changer
Wireless intuitive probing system (wips)
Broken tool detection (btd)

Extra Information

Media display via M130 (images, videos, PDF on screen) Standard machine memory: 1 GB Control Unit 15" color LCD monitor with USB port Touchscreen control interface Ethernet interface HaasConnect remote monitoring HaasDrop wireless file transfer WiFi connectivity Controller High-speed machining (HSM) Rigid tapping Dynamic Work Offsets / Tool Center Point Control (DWO/TCPC) Macro programming, coordinate rotation & scaling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
