Goodway TS-150M

Photo Gallery

Goodway - TS-150MPL-TUR-GOO-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

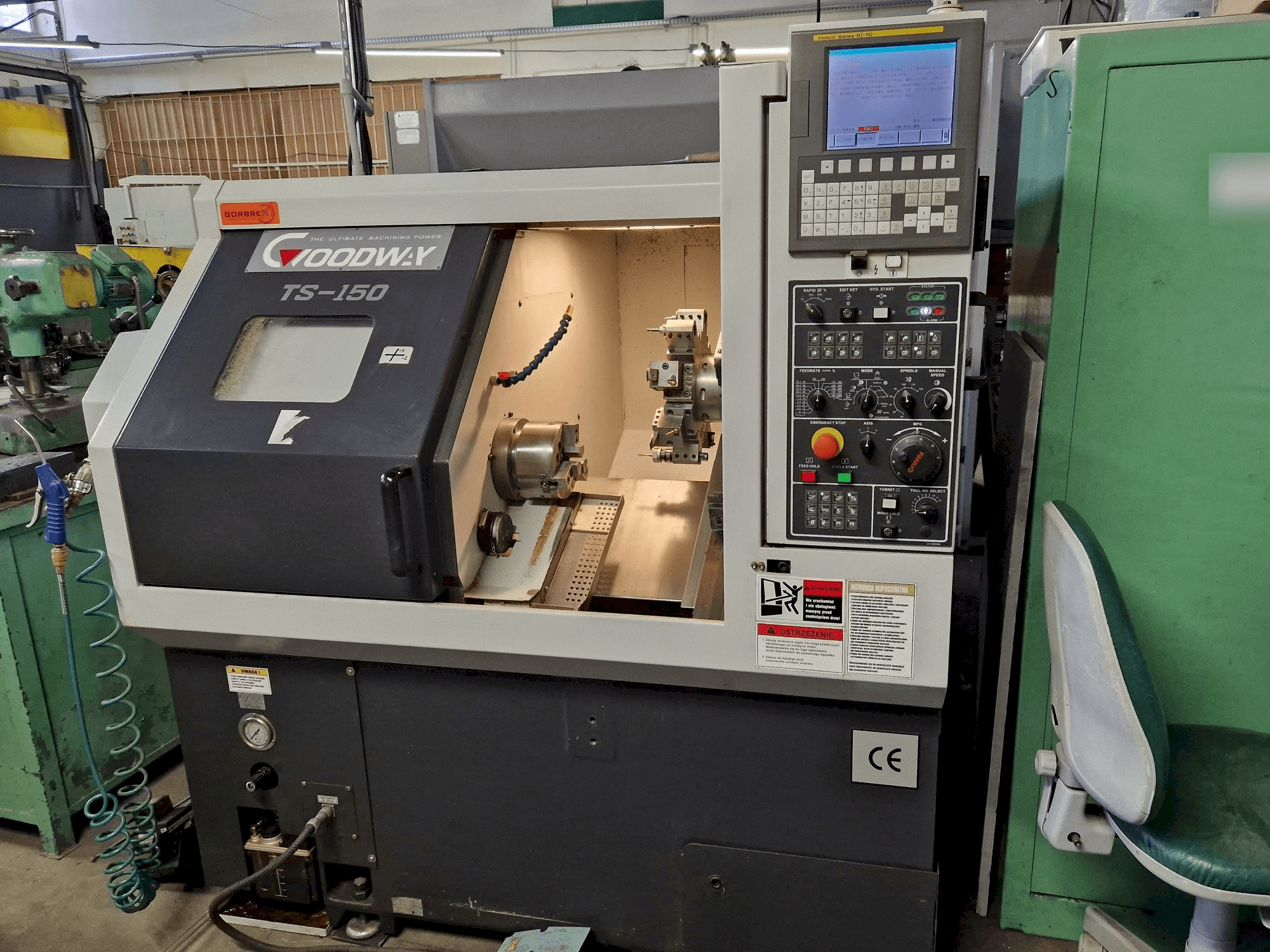

Goodway TS-150M CNC lathe

Show in original language

This Goodway TS-150M CNC lathe was made in 2008 in Taiwan and has 6500 hours. It is equipped with a FANUC Series Oi-TC control unit. The machine has a spindle speed of 6000 rpm, a large number of tools and accessories new and used included, and is in very good working condition.

Overview

brand: Goodway
year: 2008
MODEL: TS-150M
production hours: 6500
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Goodway TS-150M

General Data

Measurements width: 1758 mm
Measurements depth: 1353 mm
Measurements height: 1600 mm
Machine weight: 1750 kg

Control Unit

Model: Series Oi-TC
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 305 mm
Z-AXIS Movement: 320 mm

Media

Chip conveyor: Yes

Additional Equipment

- large number of tools and accessories new and used included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over saddle dia. : 400 mm
- - Max turning dia. : 200 mm
- - Max turning length: 290 mm
- - Bar capacity dia. : 45 mm
- - Max. Weight load: 50 kg
- - Hole through spindle dia. : 56 mm
- - Spindle drive system: direct belt drive
- - Turret: 8 positions / fixed
Qualitative Machine Benefits:
- - The machine is in very good working conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
