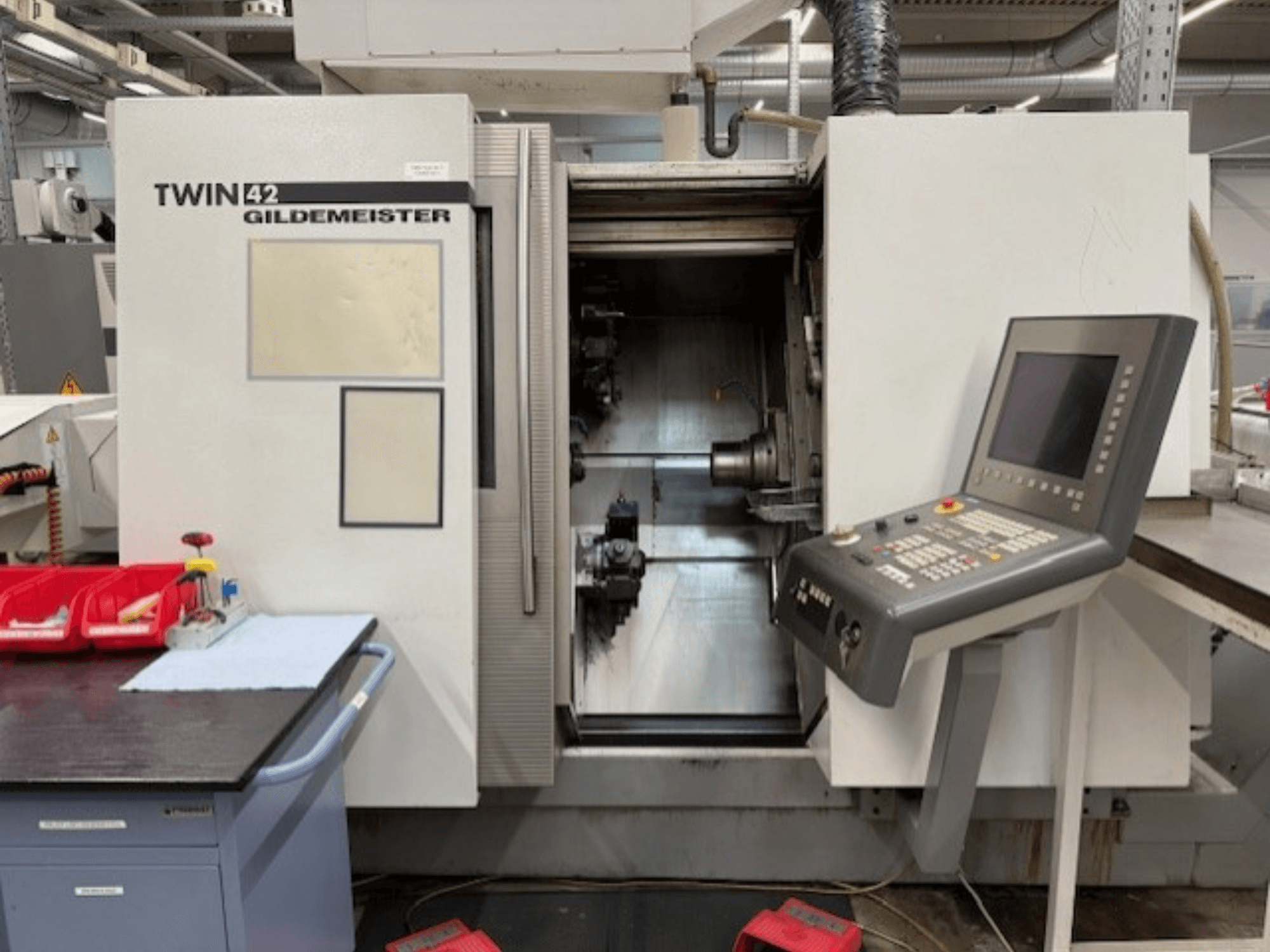

This 7-axis Gildemeister TWIN 42 was manufactured in 2008. It features a CNC control Siemens 840D Powerline, two 12-station star turrets, and live tooling capabilities. The machine has a tailstock stroke of 230 mm and is equipped with a optional chip conveyor. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 42 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Gildemeister
- year: 2008
- MODEL: TWIN 42
- production hours: 76595
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Gildemeister TWIN 42
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D Powerline
Movement
- Number of Axes: 7
- X-axis Travel: 160 mm
- Z-axis Travel: 320 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Speed: 7000 RPM
Additional Information
CNC Control: Siemens 840D Powerline
C-Axis: 2
Y-Axis: Upper Slide
Cross Slides: 2
Turrets: 2 × 12-Station Star Turrets
Live Tooling: 2
Tailstock Mounted on Counter Spindle Slide
Tailstock Stroke: 230 mm
Tailstock Force: 300 daN
Tailstock Center: MT3
Overload Clutch for X- and Z-Axes
Chip Conveyor: Bürener, optional
Tool Monitoring System: Artis CTM
Workpiece Diameter: Ø 6–65 mm
Maximum Workpiece Length: approx. 300 mm
Maximum Workpiece Weight: 3.5 kg
Bar Feeder Interface
Bar Feeder: IRCO SiMag 42
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
