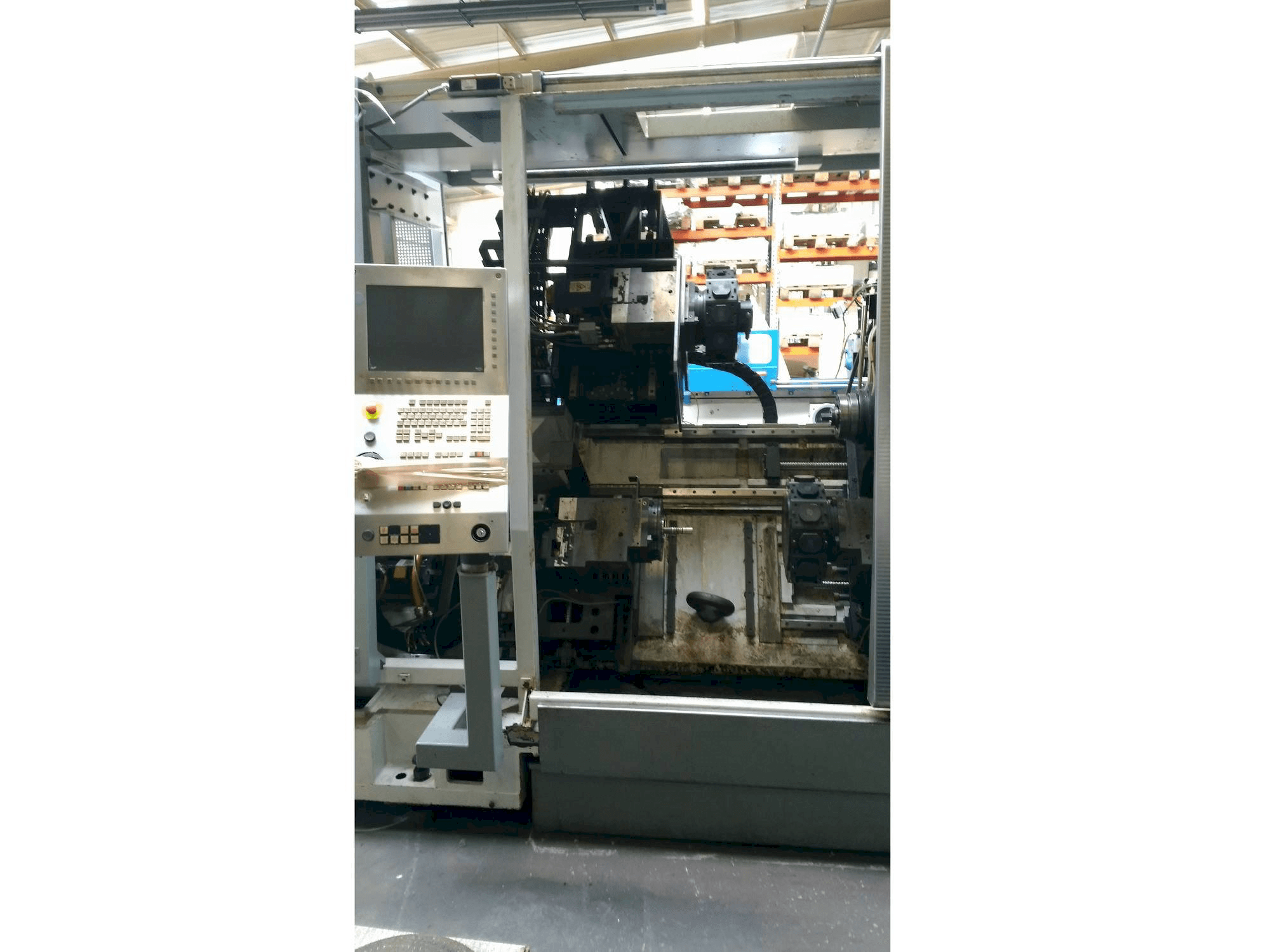

Front view of Gildemeister Sprint 65 Linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister Sprint 65 Linear

Photo Gallery

Gildemeister - Sprint 65 LinearDE-TUR-GIL-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister Sprint 65 Linear

Show in original language

This Gildemeister Sprint 65 Linear lathe machine was built in 2006 in Italy. The machine has a record of 32648, of which 14482 are operating hours. It is operated through a FANUC 310i control unit. This 10 axis machine has a main spindle speed up to 5000 rpm. It includes a bar feeder.

Overview

brand: Gildemeister
year: 2006
MODEL: Sprint 65 Linear
production hours: 32648
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Gildemeister Sprint 65 Linear

Control Unit

Control Brand: FANUC
Control Model: 310i

Dimensions

Machine Depth: 2480 mm
Machine Height: 2700 mm
Machine Weight: 11000 kg

Movement

Number of Axes: 10

Technical Specification

Spindle Power: 20 kW
Spindle Speed: 5000 RPM

Additional Information

Additional equipment

bar feeder

Machine Benefits

Technical Machine Benefits

Axis x1: travel 165 mm; max. Speed 30 m/min
Axis z1: travel 220 mm; max. Speed 30 m/min
Axis w2: travel 690 mm; max. Speed 30 m/min
Axis x2: travel 165 mm; max. Speed 30 m/min
Axis z2: travel 150 mm; max. Speed 30 m/min
Axis x3: travel 165 mm; max. Speed 40 m/min
Axis z3: travel 678 mm; max. Speed 30 m/min
Axis y3: travel 80(+50/-30) mm; max. Speed 30 m/min

Extra Information

This machine has been partially disassembled. during disassembly it was found that the telescopic cover, wiper, float switch, central lubrication, toothed belt, lubrication lines and cables need to be replaced.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
