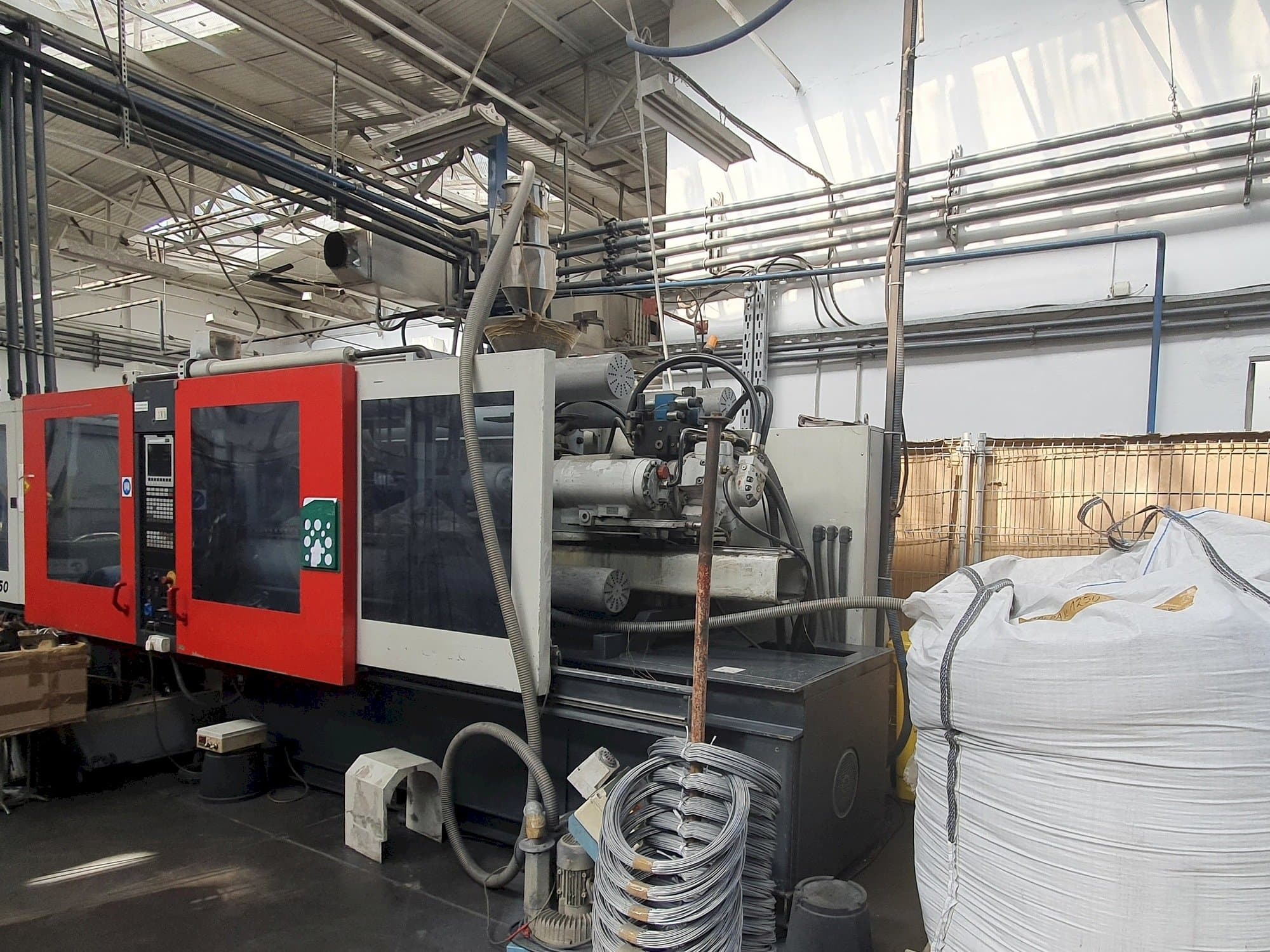

Front view of FERROMATIK MILACRON MAXIMA MV 350 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FERROMATIK MAXIMA MV 350

Photo Gallery

FERROMATIK - MAXIMA MV 350PL-INJ-FER-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
FERROMATIK MILACRON MAXIMA MV 350 Injection Moulding Machine

Show in original language

This FERROMATIK MAXIMA MV 350 Injection Moulding Machine was built in Germany in the year 2002. This machine can work with a clamping force of 3500 kN, and an injection pressure of 1942 bar. It is in very good working conditions, ready for tests, and full documentation available.

Overview

brand: FERROMATIK
year: 2002
MODEL: MAXIMA MV 350
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine

Technical Information - FERROMATIK MAXIMA MV 350

General Data

Measurements width: 6800 mm
Measurements depth: 2200 mm
Measurements height: 2700 mm
Machine weight: 16000 kg

Injection Unit

Injection pressure: 1942 bar

Clamping unit

Clamping force: 3500 kN
Mould height min: 300 mm
Mould height max: 1200 mm
Size of mold platens: 1080 x 1080 mm

Media

Main electronic connection: 400V / 50Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in very good working condition
Ready for tests
Full documentation available.

Technical Machine Benefits

Column spacing: 710 x 710 mm
Installed heating power: 23,1 kw
Installed power motors: 75 kw
Injection volume: 792 cm3

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
