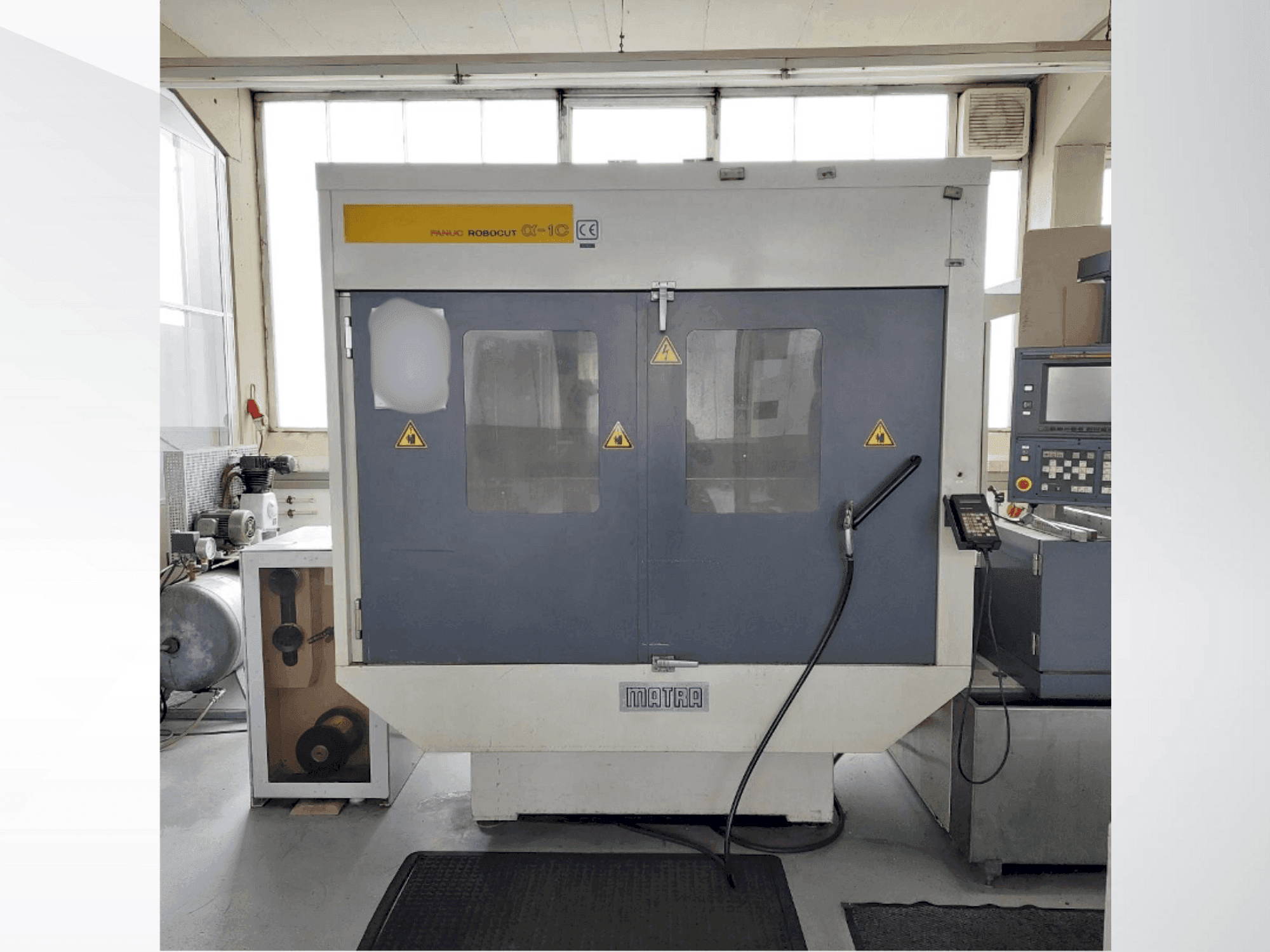

FANUC - Robocut Alpha 1CDE-EDM-FAN-1997-00001

Additional equipment

• Bedra wire unwinding device BAS 45/100E (to the left of the machine), capable of handling wire spools weighing up to 45 kg

Machine Benefits

Qualitative Machine Benefits

• Advanced control system with fanuc system 16-wb

• Versatile wire edm capabilities with adjustable wire diameter and tension

Technical Machine Benefits

• Machine Type: CNC Wire EDM (Wire Electrical Discharge Machine)

• Control System: FANUC System 16-WB (32-bit CNC)

• Number of Controlled Axes: 5

• Coordinate Travel X Axis: 520 mm

• Coordinate Travel Y Axis: 370 mm

• Coordinate Travel U Axis: ±60 mm

• Coordinate Travel V Axis: ±60 mm

• Z-Axis Travel: 300 mm (275 mm possible in water bath)

• Maximum Taper Angle: ±30° / 80 mm

• Optional Maximum Taper Angle: ±45° / 40 mm

• Rapid Traverse X Axis: 900 mm/min

• Rapid Traverse Y Axis: 900 mm/min

• Rapid Traverse U Axis: 450 mm/min

• Rapid Traverse V Axis: 450 mm/min

• Rapid Traverse Z Axis: 450 mm/min

• Maximum Rapid Traverse: 900 mm/min

• Smallest Drive Step Size: 0.0001 mm

• Minimum Input Increment: 0.0001 mm

• Minimum Command Increment: 0.0001 mm

• Maximum Programmable Dimension: ±9999.9999 mm

• Programming Mode: Incremental / Absolute

• Interpolation: Linear and Circular

• Program Memory Capacity: 280 m

• Control Display: 9.5 inch Plasma Color Screen

• Interface: RS-232C read / print

• Scaling Range: 0.001 – 99.999 ×

• Rotation Function: ±0.001° – ±360°

• Wire Diameter Compensation: ±99.9999 mm

• Maximum Cutting Feed Rate: 25 mm/min

• Wire Guide Elements Material: Diamond

• Applicable Wire Diameter: 0.2 – 0.3 mm

• Adjustable Wire Speed: 0 – 15 m/min

• Wire Tension Range: 200 – 2500 g

• Maximum Workpiece Clamping Surface: 750 × 590 mm

• Maximum Workpiece Size: 790 × 730 × 275 mm

• Maximum Workpiece Height (Water Bath): 300 mm (275 mm submerged)

• Maximum Workpiece Weight with Coaxial Spindle: 650 kg

• Maximum Workpiece Weight with Water Bath: 450 kg

• Permissible Workpiece Mass: 650 kg

• Machine Weight: approx. 2600 kg

• Mass of Machine (nameplate): 2.3 t

• Machine Width: 3270 mm

• Machine Depth: 2610 mm

• Machine Height: 2240 mm

• Required Installation Area: 4000 × 2860 mm

• Power Supply: 380 / 400 / 415 V ±10–15 %

• Electrical Phases: 3-Phase

• Frequency: 50 / 60 Hz

• Power Requirement: 11 kVA

• Connection Value with Cooler: 14 kVA

• Smallest Command Resolution: 0.0001 mm

• Maximum Programmable Range: ±9999.9999 mm

• Bedra Wire Unwinding Device: BAS 45/100E

• Maximum Wire Spool Weight (with unwinding device): 45 kg

• Operating Hours: 52881.1 h

Extra Information

Machine still under power
