➤ Used CHARMILLES Robofil 240 CC For Sale | gindumac.com

Show in original language

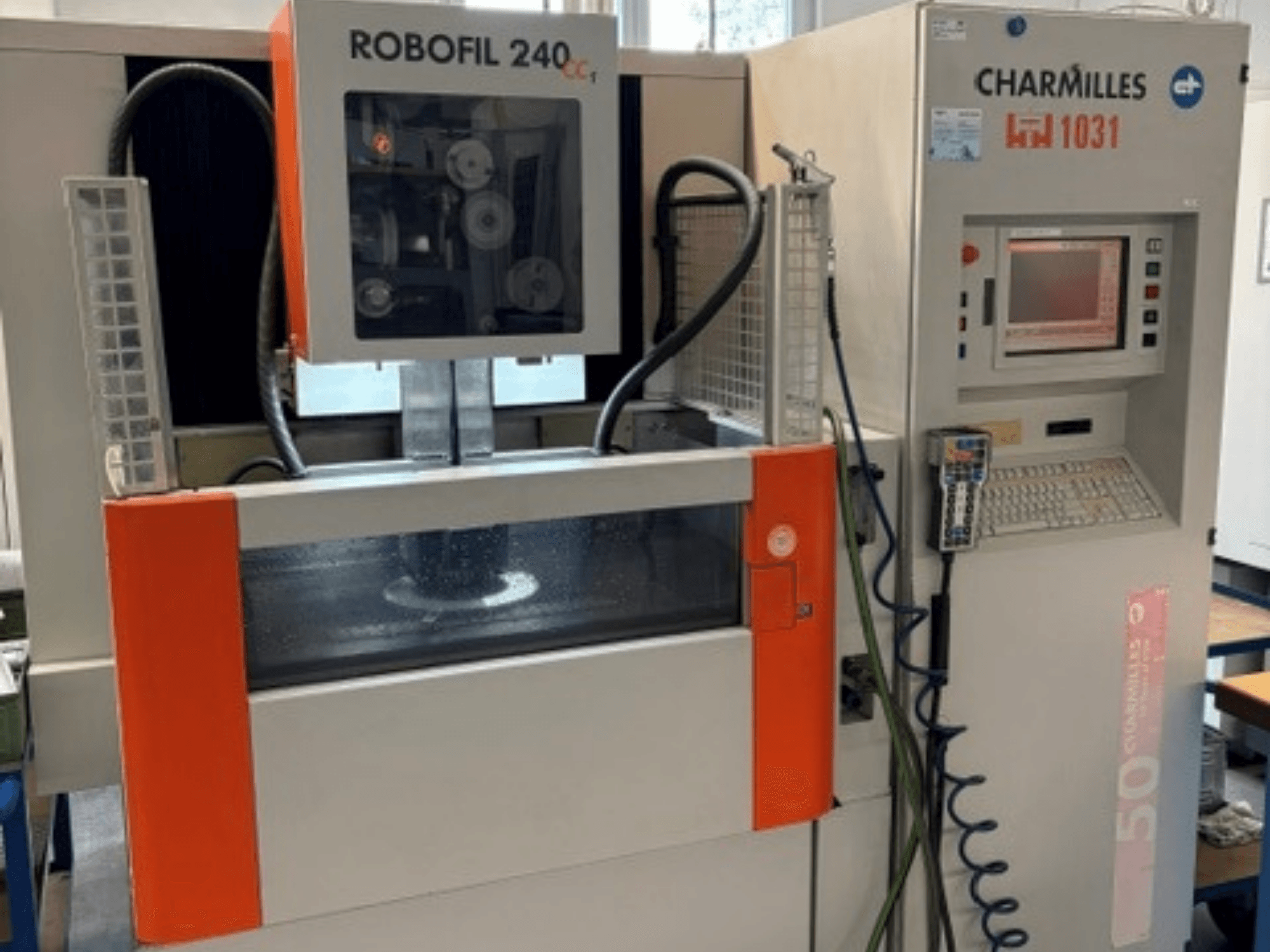

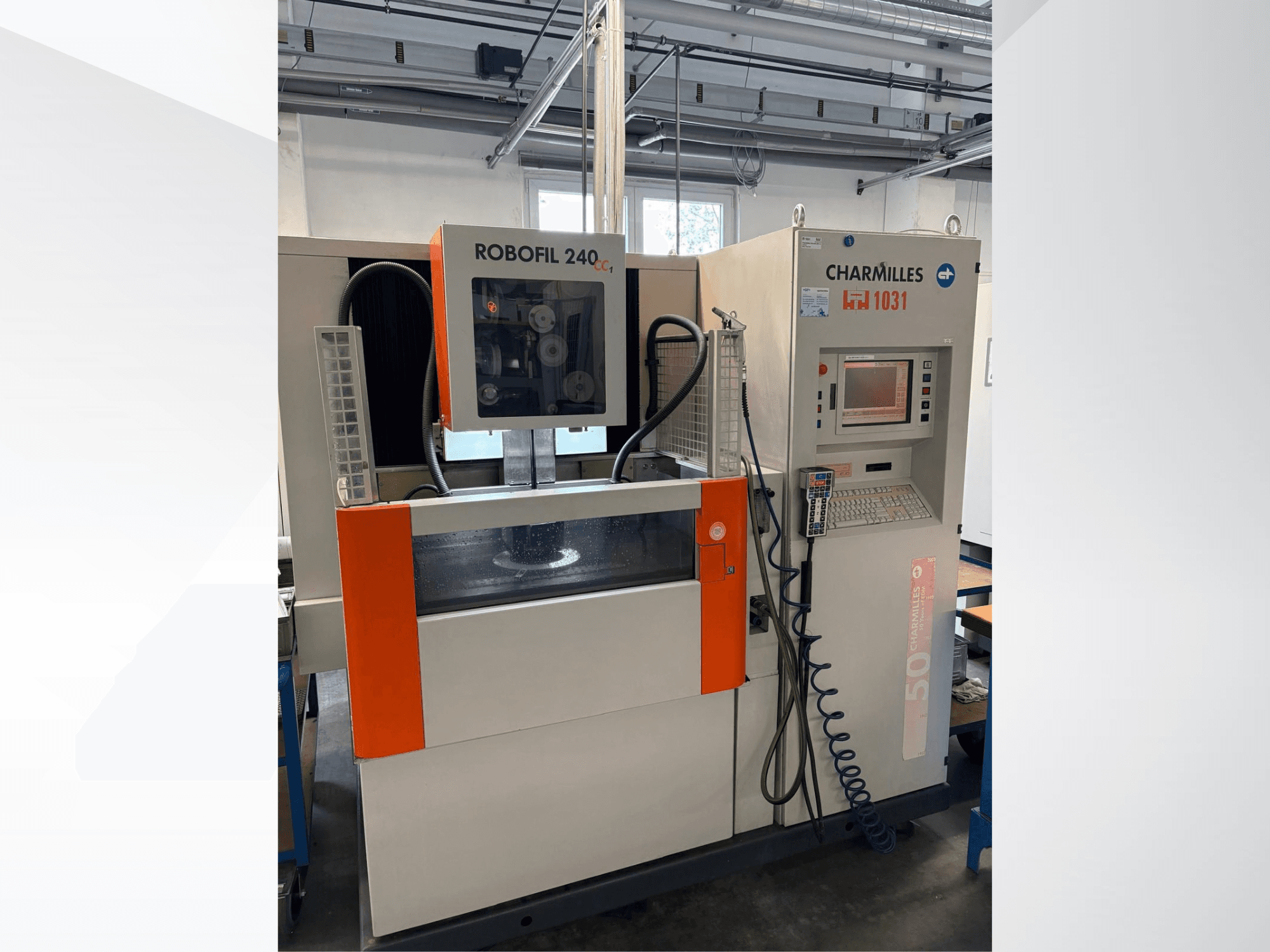

This 3-axis CHARMILLES Robofil 240 CC was manufactured in 2003. It features a travel range of 350 x 220 x 220 mm and can accommodate workpieces up to 1000 x 550 mm with a maximum weight of 750 kg. The machine has a robust table size of 680 x 450 mm. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES Robofil 240 CC machine we have for sale. Contact us for further details.

Overview

brand: CHARMILLES
year: 2003
MODEL: Robofil 240 CC
production hours: 97916
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - CHARMILLES Robofil 240 CC

Dimensions

Machine Weight: 2100 kg

Movement

Number of Axes: 3
X-axis Travel: 350 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.15 mm

Additional Information

- X/Y/Z Travel Range: 350 x 220 x 220 mm

- Table Dimensions: 680 x 450 mm

- Max. Workpiece Dimensions: 1000 x 550 mm

- Max. Workpiece Weight: 750 kg

- Machine Weight: approx. 2100 kg

- Dimensions: 2020 x 2050 x 2000 mm

- Electrical Phase: 3 ~ Phases

- Frequency: 50 / 60 Hz

- Voltage: 400 Volts

- Amperage: 18 A

- Power Capacity: 12 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
