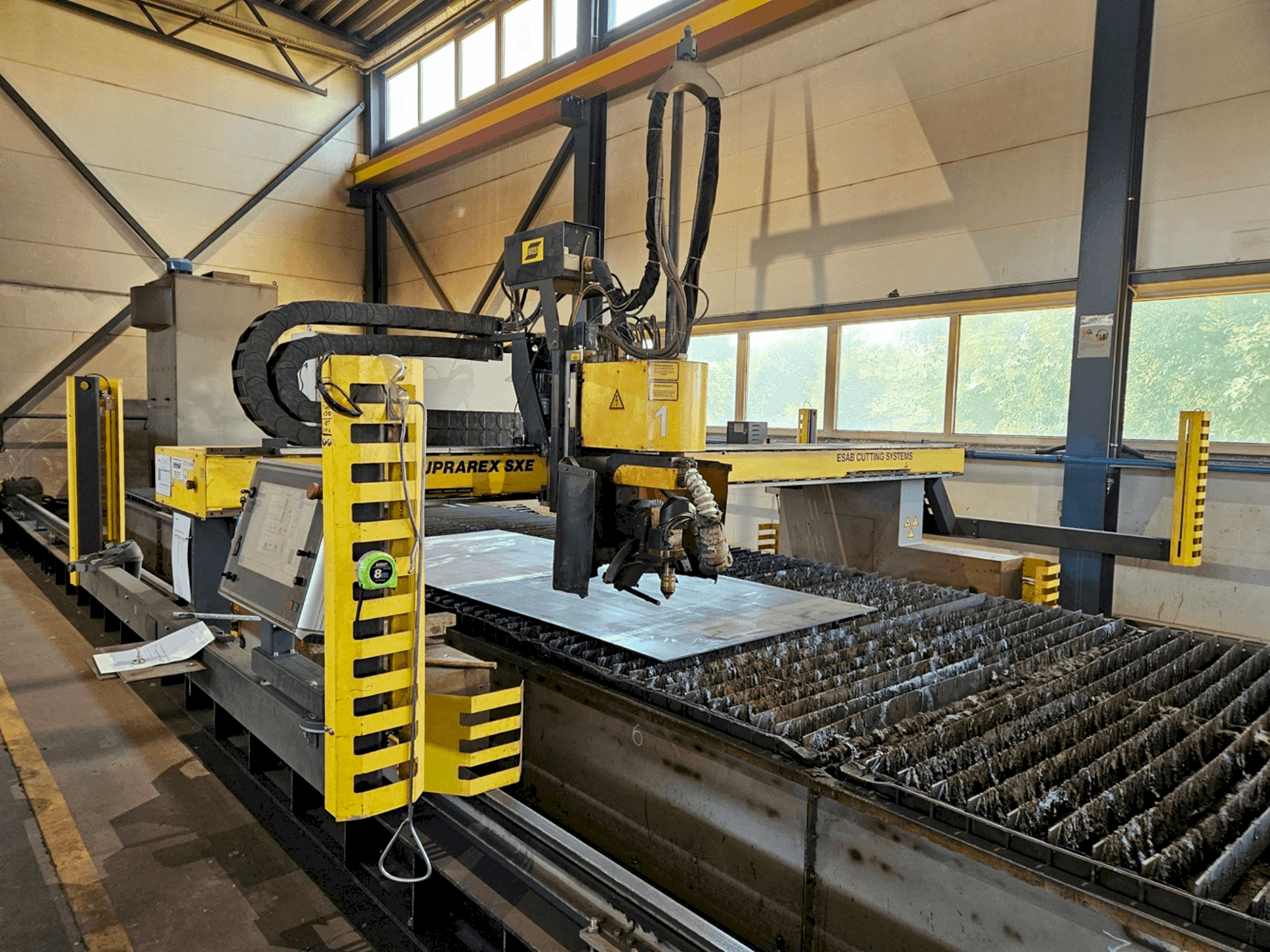

Front view of ESAB Suprarex SXE HD 4000 230 V  machine

ESAB - Suprarex SXE HD 4000 230 VEE-PLA-ESA-2015-00001

£ 50,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ESAB Suprarex SXE HD 4000 230 V plasma cutting machine was manufactured in 2015. It features a robust 360 A plasma power source and a PT36 plasma torch, capable of cutting up to 50 mm thick materials. The machine includes a Vision T5 controller and supports a cutting area of 2500 x 12000 mm. Ideal for those seeking precision in large-scale projects, the ESAB Suprarex SXE HD 4000 230 V represents a significant opportunity. Contact us for more information.

Overview

  • brand: ESAB
  • year: 2015
  • MODEL: Suprarex SXE HD 4000 230 V
  • production hours: 1565
  • application type: Plasma cutting
  • Location: Estonia
  • machine type: Plasma Cutting Machine
  • availability: Immediately
  • control unit brand: Vision T5

Technical Information - ESAB Suprarex SXE HD 4000 230 V

Control Unit

  • Brand: Vision T5

Main drive

  • Spindle motor power: 3.5 kVA

Movement

  • X-AXIS Movement: 2500 MM
  • Y-AXIS Movement: 12000 MM

    Additional Equipment

    • - Cutting Speed Carbon Steel:10 mm: 4400 mm/min // 20 mm: 2800 mm/min (new 3000 mm/min) // 30 mm: 1600 mm/min // 40 mm: 925 mm/min (new 1400 mm/min)
    • - Cutting Angle: According to ISO 9013: class 3
    • - Material Thickness:5 mm min. material thickness // Up to 32 mm max. for a 45 degree cut // Up to 45 mm for a vertical cut // Up to 50 mm when starting from the edge
    • - 1 pc portal cutting machine SHD 4000, rail spacing 3500 mm, rail length 13,800 mm
    • - 1 pc plasma power source M3 360, cutting capacity 50 mm (black metal with piercing)
    • - 1 pc plasma phase cutting head with PT36 plasma torch, fully automatic contour phase cutting with variable angle if necessary
    • - Table and filter for dry cutting

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Cutting current: 360 a
        • - Connection voltage: 400 volts 3 phases 50 hz
        • - Remote control: automatic nc control
        • - Plasma torch: pt 36

      Extra information

      • - machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
