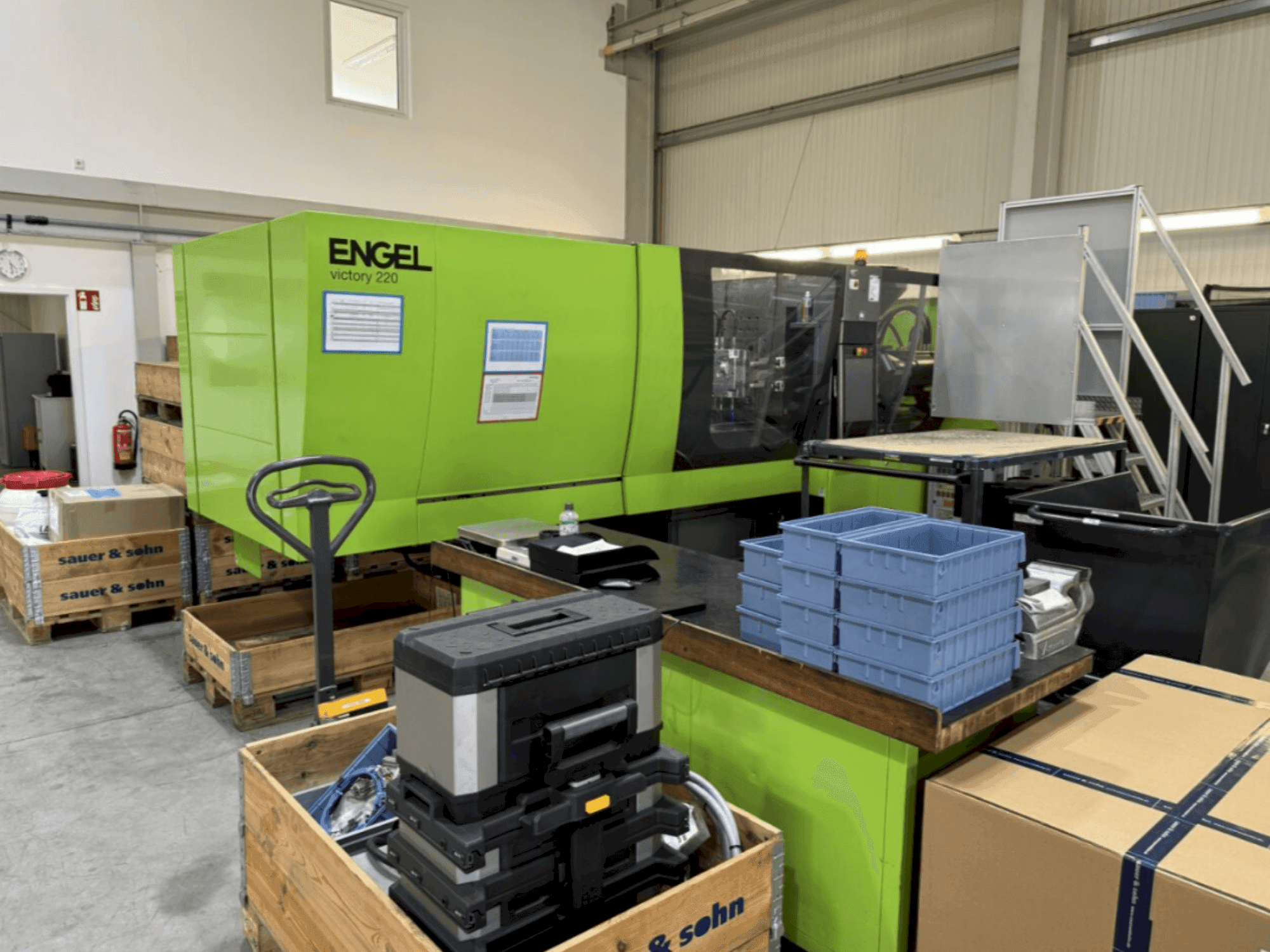

Engel - Victory 750 / 220 spexDE-INJ-ENG-2015-00005

• Control Unit CC300 Microcomputer: Visualization on a 21.5" full HD touchscreen color monitor with high sensitivity

• Ergonomic screen positioning with automatic adjustment

• User authorization system according to Euromap 65 including 3 keycards

• Intuitive and fast navigation with a component- and task-oriented operating concept

• One-touch operation and sensitive motion control with the central e-move control element

• Individual assignment of functions to the freely configurable hand keys

• Cycle sequence freely programmable via graphic symbols

• Optical fault signal display on the control panel

• Setting data storage via USB interface

• Ethernet network interface

• Freely configurable screen pages

• Weekly timer

• Process data log

• Continuous graphical monitoring of process parameters with PD-Graphic I

• Micrograph and Microplast available

• Injection molding machine energy consumption analysis with Ecograph

• Injection Unit Material Package: For processing thermoplastics with a maximum reinforcement of 30%, corrosion-resistant, usable up to 350°C

• Melt Cylinder: M3 Standard Melt Cylinder Bi-metal (Fe-Bass), abrasion- and corrosion-resistant, usable up to 350°C

• Non-Return Valve: Standard Rub with ring for backflow prevention, abrasion- and corrosion-resistant

• Screw: Diameter 45 mm L/D 20, fully hardened, abrasion and corrosion-resistant

• Nozzle: Open, corrosion-resistant, Flange thread M45x3, Nozzle radius 35 mm, Nozzle bore 4 mm

• Clamping Force Double Core Puller: Hydraulic movable clamping plate with shut-off valve and pressure relief

• End Position Monitoring Interface: According to Euromap 13 / AN-147 2-Speed Hydraulic Movable

• Clamping Plate: With shut-off valve and pressure relief

• Media Supply Voltage: 3x400V+N+PE/50 Hz

• Cooling: Separated cooling water connection for machines and/or work cooling

• Interface for Temperature Control Units: Includes locking side and data protocol Engel, 20mA-CL Temperature

• Control Hoses: 1/2" (max. 90°C, 4 bar) with color coding on hose ends: red/blue

• Control Circuits: 3 circuits at the rear of the machine with connection plate (R3/8" thread)

• Extra Information Mounted Devices: Mass hopper mounted on sliding unit with step-up aid for manual filling according to EN ISO 14122 1-4

• Electrical Chain: For potential-free system

• Ejector Safety Interface: Solenoid valve 2/2-way, R1/4 inch, mounted on FAP, only for blowing function

• Extension Package EP2: Includes interface for potentiometer contacts, and 4x digital output/input

Additional equipment

• Polycarbonate Viewing Window

• Injection Unit with Protective Guard and Sliding Guard

• Advanced Material Package

• Moretto Granular Dryer included

• Moretto Kältemaschine included T

• ool Temp Temperature control unit included
