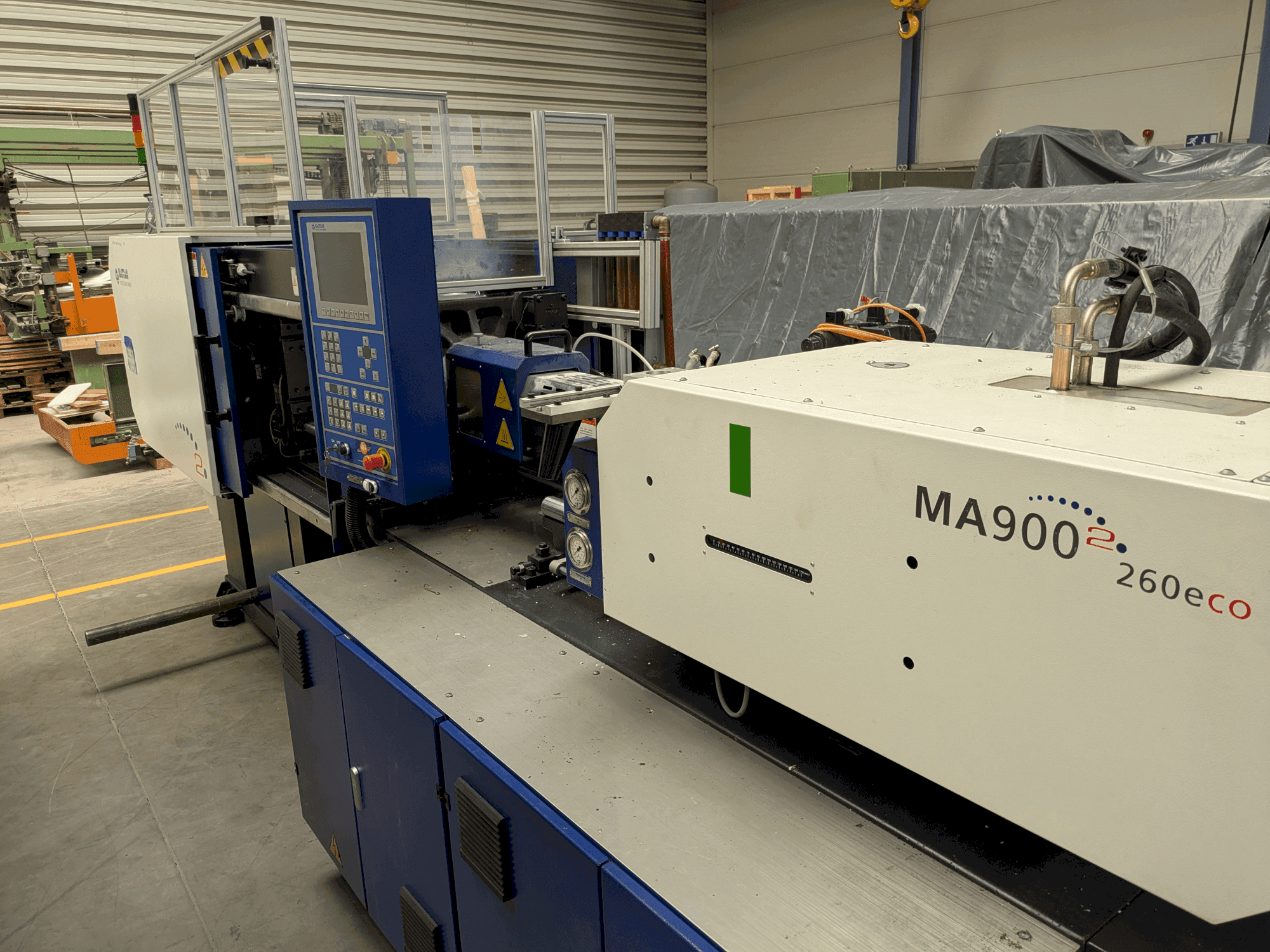

HAITIAN - MA900 II ecoDE-INJ-HAI-2016-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Injection capacity (ps): 110 / 139 / 171 g
  • - Plasticization capacity: 10. 1 / 13. 3 / 16. 1 g/s
  • - Heating power: 7. 85 kw
  • - Tie-bar spacing (hxv): 360 × 360 mm
  • - Die-height available: 150 – 380 mm
  • - Ejector number: 5
  • - Pump motor power: 11 kw
  • - Minimum mold size (l×w): 250 × 250 mm

Extra information

• - Machine Dimensions & Installation Plan Overall Dimensions (L×W×H): 4.53 × 1.24 × 1.91 m Approx. Weight: 3.5 t Required Installation Space: Should allow at least 1 m clearance around the machine for operation and maintenance Machine Foundation & Mat Diagram Foundation Type: Reinforced concrete foundation recommended. Load-bearing Capacity: Must support ≥ 3.5 t machine weight. Level Tolerance: Machine must be installed on a level foundation (≤ 0.2 mm/m slope). Vibration Damping: Use anti-vibration pads or steel plates under machine feet Cable & Electrical Requirements Pump Motor Power: 11 kW Heating Power: 7.85 kW Total Installed Power (approx.): ~19 kW Power Supply: 3-phase, typically 400V / 50Hz (check local spec). Circuit Breaker Recommendation: ≥ 40 A (depends on local standards). Grounding: Reliable grounding required (≤ 4 Ω resistance). Cable Suspension Diagram: Machine must be leveled before connecting cables Cooling & Hydraulic Requirements Oil Tank Capacity: 190 L (use recommended hydraulic oil ISO VG46). Cooling Water Requirement: For Hydraulic Oil Cooler For Mold Cooling Circuits (4 × water passages provided) Water Quality: Clean, non-corrosive, filtered. Water Pressure: 0.2 – 0.4 MPa Environmental Conditions Ambient Temperature: 5 – 40 °C Relative Humidity: ≤ 90% (non-condensing) Installation Location: Indoor, vibration-free, dust-free environment
