Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
EMCO - Turn E 65AT-TUR-EMC-2018-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- EMCO Turn E 65 Lathe

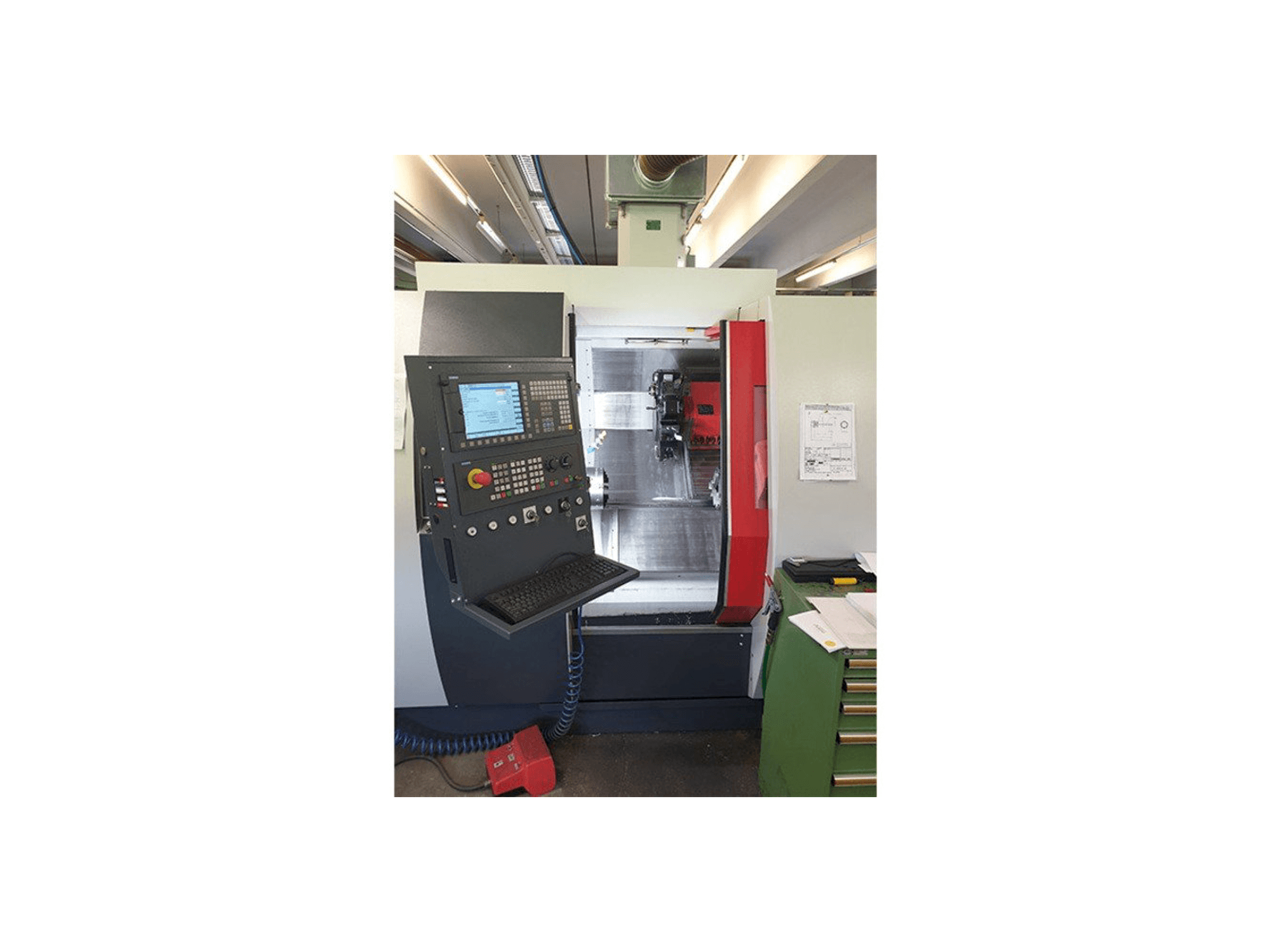

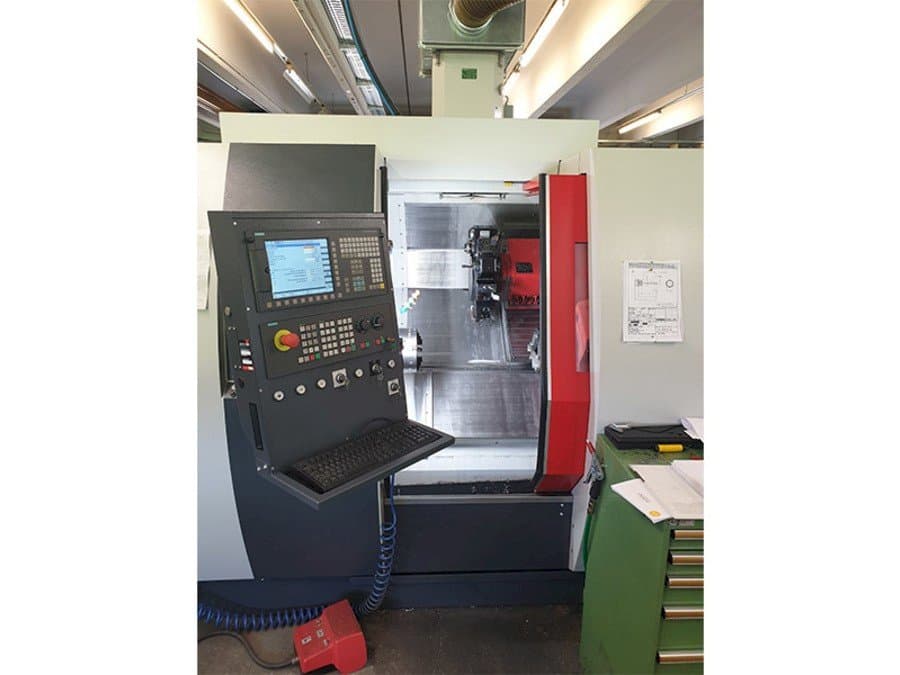

This EMCO Turn E 65 Lathe was manufactured in the year 2018. It has a record of only 388 production hours. It is equipped with a Siemens Sinumerik 828D control unit. This double spindle machine can work wit a spindle speed up to 5000 rpm, a max turning diameter 500 mm, and a max part length 520 mm. It includes some tools as additional equipment.
Overview
- brand: EMCO
- year: 2018
- MODEL: Turn E 65
- production hours: 388
- application type: Turning
- Location: Austria
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - EMCO Turn E 65
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 828D
Movement
- X-axis Travel: 260 mm
- Y-axis Travel: 80 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
- The machine is ready for operation and under power and can be inspected at any time by appointment
Technical Machine Benefits
- Double spindle machine
- Counter spindle with tailstock function. (contact pressure programmable via current consumption)
- Vdi-40 revolver - 12-station, driven
- Automatic door
- Swing diameter over bed 610 mm
- Swing diameter over cross slide 360 mm
- Center distance for tailstock version 682 mm distance main spindle - counter spindle 840 mm
- Max. Turning diameter 500 mm
- Max. Part length 520 mm
- Max. Bar diameter 65 (95) mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
