EMCO Maxxturn 65

Photo Gallery

EMCO - Maxxturn 65AT-TUR-EMC-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO Maxxturn 65 - Lathe For Sale | gindumac.com

Show in original language

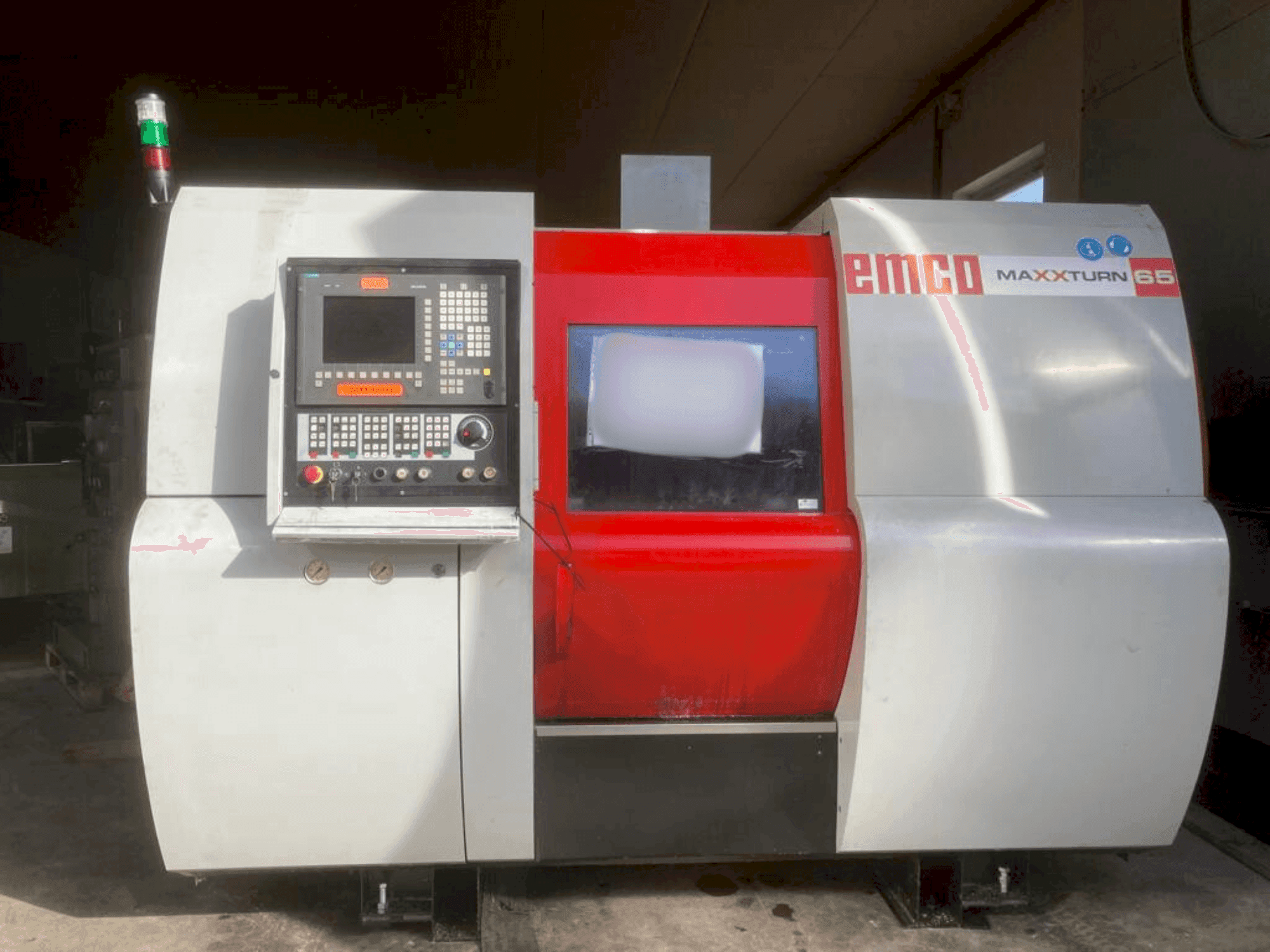

This 4-axis EMCO Maxxturn 65 lathe was manufactured in 2005. It features a Siemens 840 D control system, a 12-position turret with all driven tools, and a tool holder VDI 30. The main spindle operates up to 5000 rpm, while the counter spindle reaches 7000 rpm. It includes a Hainbuch collet chuck, parts catcher, and a chip conveyor. A great opportunity to buy this EMCO Maxxturn 65 lathe. Reach out for more information.

Overview

brand: EMCO
year: 2005
MODEL: Maxxturn 65
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO Maxxturn 65

Control Unit

Control Brand: SIEMENS
Control Model: 840 D

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 80 mm
Z-axis Travel: 610 mm

Technical Specification

Max. Workpiece Diameter: 65 mm
Spindle Speed: 5000 RPM
Taper Size: VDI 30
Tool Stations: 12

Additional Information

Additional equipment

Hainbuch collet chuck on main and counter spindle
Parts catcher
10 tool holders (2 axial, 2 radial, and 6 normal holders)
Emco LM 1200 loading magazine

Machine Benefits

Qualitative Machine Benefits

Advanced control system with siemens 840 d for precise operations
Versatile machining capabilities with driven tools and multiple tool holders

Technical Machine Benefits

Comprehensive tool management with a 12-position turret (all driven)
51,031 operating hours (not spindle hours)
Regularly serviced. The main spindle, two power modules, two servo motors, two safety modules, bar feeder cylinder, ejector springs, control cabinet fan, hydraulic accumulator, and digital control module have been replaced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
