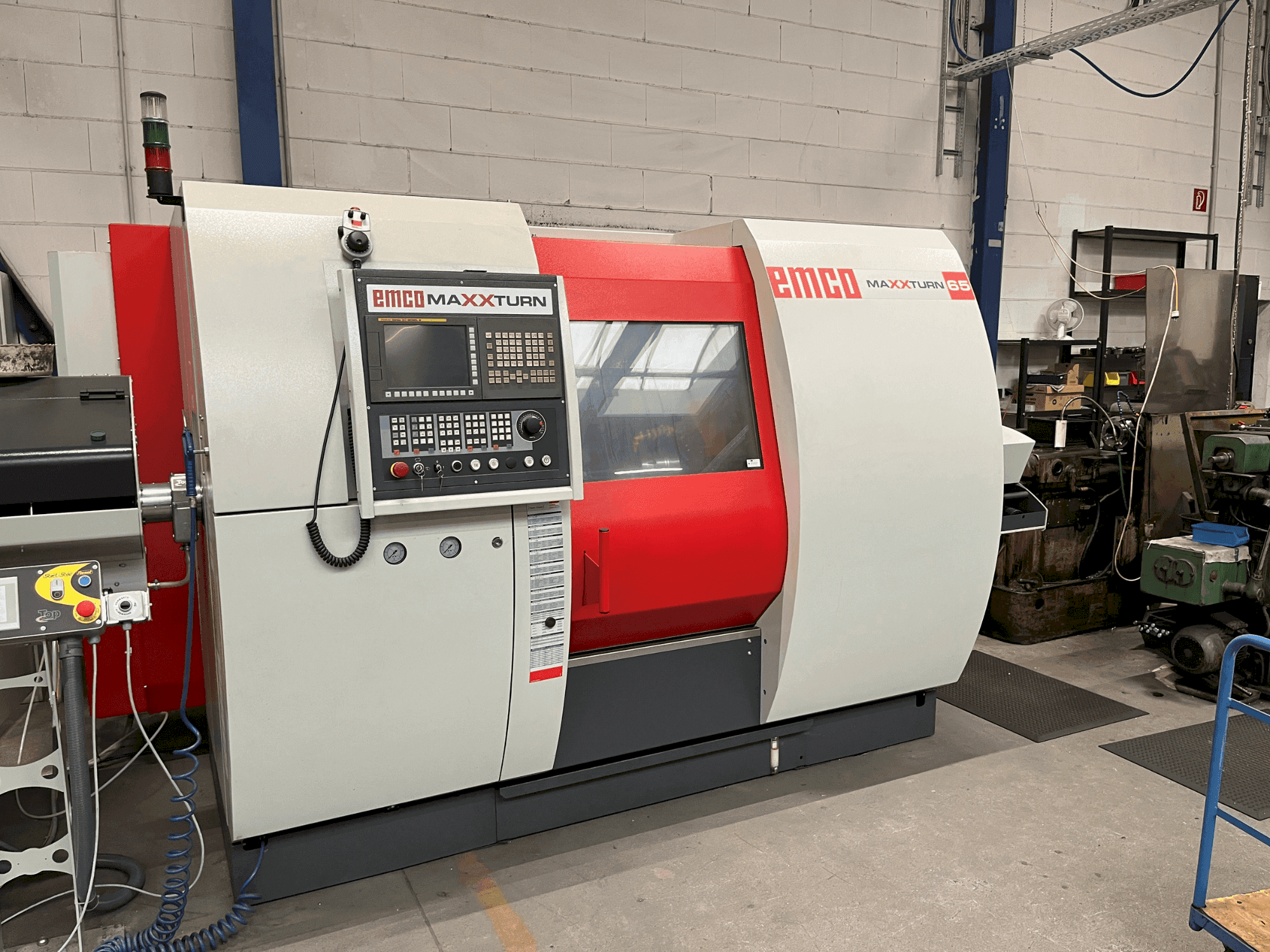

This 3-axis EMCO MaxxTurn 65 SMY was manufactured in 2014, featuring a robust FANUC 31i B control system and a dual spindle setup with C and Y axes for complex machining. It includes a 12-position tool turret and a bar feeder with a capacity of 65 mm diameter and 3200 mm length. Ideal for precision turning and milling, this machine offers a comprehensive solution for advanced metalworking. Contact us for more information about this machine.
Overview
- brand: EMCO
- year: 2014
- MODEL: MaxxTurn 65 SMY
- production hours: 100
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - EMCO MaxxTurn 65 SMY
Control Unit
- Control Brand: FANUC
- Control Model: 31t- Model B
Dimensions
- Machine Depth: 4500 mm
- Machine Height: 1800 mm
- Machine Weight: 2200 kg
Movement
- Number of Axes: 3
Technical Specification
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
Automatic bar loading magazine with adjustable part length and bar diameter
Remnant extraction system
Guide channel made of polyurethane plastic
Displacement system for longitudinal movement
Machine Benefits
Qualitative Machine Benefits
No spindle reduction required
Technical Machine Benefits
Cooling: thermocompensation system
Axes: c-axis and y-axis
System: linear guide system, digital drive system
CATCHING DEVICE Pneumatically operated precast catching device for the gentle unloading of precast elements. The precast elements are transported into a catching box (standard) or onto a conveyor belt (optional). Max. precast element length: 175 mm Max. precast element diameter: 65 mm Max.
Tool system: 12-position tool turret, vdi30 radial
Driven tools: up to 12 driven tools
Sub-spindle speed range: 0–7000 rpm
Bar length capacity: 1200 – 3200 mm
Diameter passage: 20 – 65 mm
Feed speed: 0 – 627 mm/sec
Turning length is 650mm
Extra Information
Control Unit Control: Integrated PLC Features: Fully automatic work cycle, Monitoring and error diagnostics (display output) Tools Max Power: 6.7 kW Max Torque: 25 Nm Speed Range: 0–5000 rpm C-Axis: Available Media Power Supply: 200/220/400 V AC Air Requirements: Min. 7 bar Air Consumption: 45 L/min Mount Position (Assembly) Installation Kit includes vibration-absorbing, height-adjustable leveling shoes, and mounting brackets. Machine History Note: Machine like new with only 100 hours of use
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
