EMCO Maxxmill 750

Photo Gallery

EMCO - Maxxmill 750DE-MIL-EMC-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

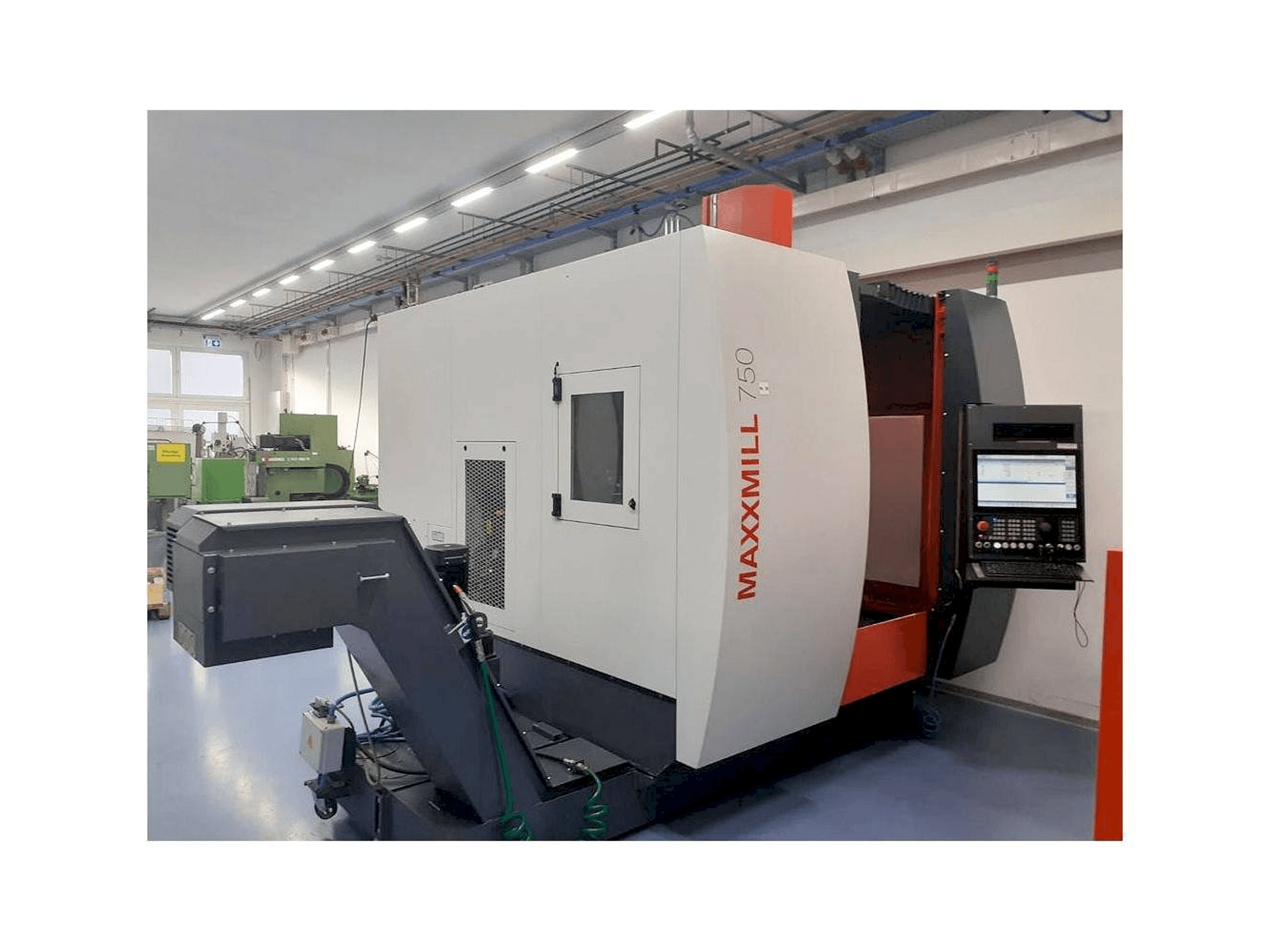

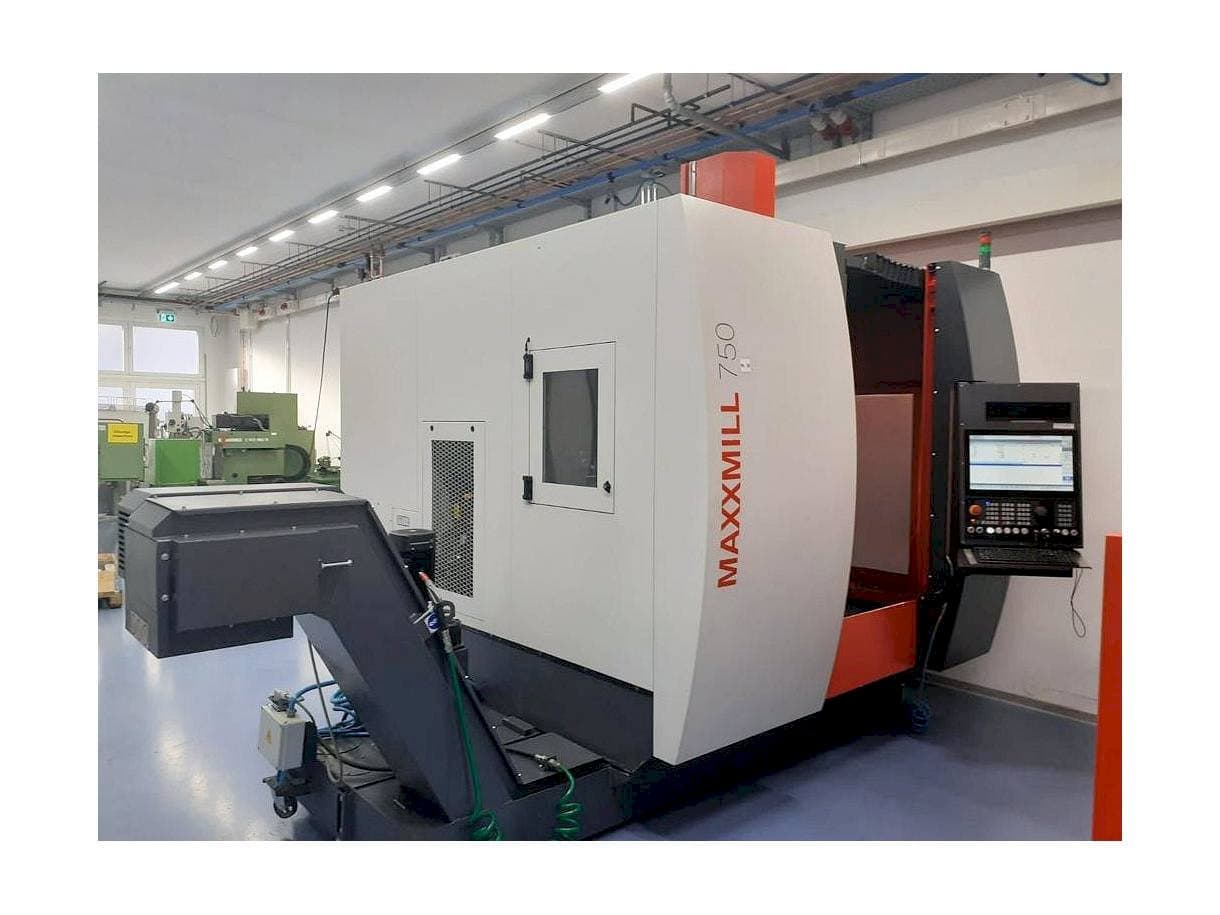

Emco Maxxmill 750 Vertical Machining center

Show in original language

This Emco Maxxmill 750 Vertical Machining Center was manufactured in the year 2018 in Italy. It is equipped with a SIEMENS SHOPMILL control unit and has a 3+2 axis. The machine has a spindle speed of 15000 rpm, is in very good condition, and is well maintained.

Overview

brand: EMCO
year: 2018
MODEL: Maxxmill 750
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - EMCO Maxxmill 750

General Data

Measurements width: 4177 mm
Measurements depth: 3500 mm
Measurements height: 3060 mm
Machine weight: 7900 kg

Control Unit

Model: SHOPMILL
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 3+2

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 750 mm
Outer width: 600 mm

Tools

Slots in storage: 40
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 250 mm
Type of tool holder: DIN 40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition with low hours!

Technical Machine Benefits

B axis +/- 100 degress
C axis 360 degrees (0. 001 degree increment)
Min - max height under spindle 175 - 675mm
Rapid feed rates 30m/minute
Spindle motor power 20kw
Swarf conveyor, coolant, interlocked guards, low volt light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
