➤ Used EMAG VL03 Horizontal Lathe system For Sale | gindumac.com

Show in original language

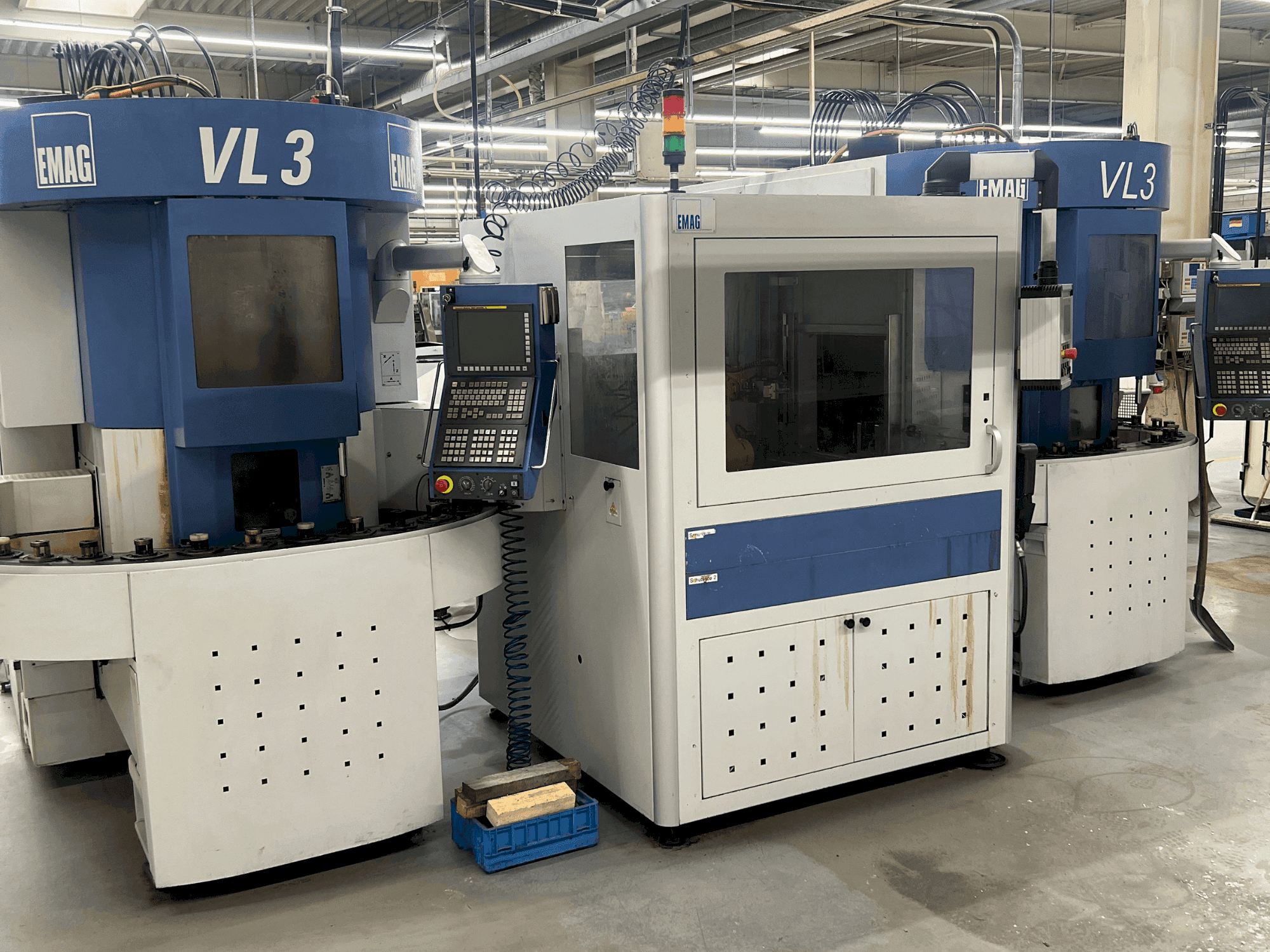

It's System of 2 EMAG VL03 horizontal turning machines that were manufactured in 2012 and 2010. It features a Fanuc control system, Series 32i-Model A, with a travel range of 400x200mm and a spindle speed of up to 7,500 rpm. The system machine includes a 12-station tool turret with VDI 40 tool holders and a tool drive of 6,000 rpm. Consider the opportunity to buy this horizontal turning machine system with robot included. Contact us for more information about this system.

Overview

brand: EMAG
year: 2012
MODEL: VL03
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMAG VL03

General Data

Machine weight: 5500 kg

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 7500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 400 mm
Z-AXIS Movement: 200 mm

Turret

Number of turrets: 1

Tools

Number of stations: 12
Type of tool holder: VDI 40

Media

Internal cooling: Yes

Additional Equipment

- Tool Storage: Conveyor belt for max. 27 workpieces
- Workpiece Feed: Vibratory spiral conveyor, vibrating plate, single workpiece feed
- Handling Robot: 8-axis
- Protective Enclosure: Robot cell
- Scraper Belt Conveyor
- Oil Mist Extraction
- Cooling System: Cooling capacity 3 kW
- Chip Container: 700x700x600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter: 30-130 mm
- - Max height: 145 mm
- - Tool drive: 6000 rpm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
