Elumatec SBZ 122/64

Photo Gallery

Elumatec - SBZ 122/64LU-MIL-ELU-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Elumatec SBZ 122/64 Vertical Machining Center

Show in original language

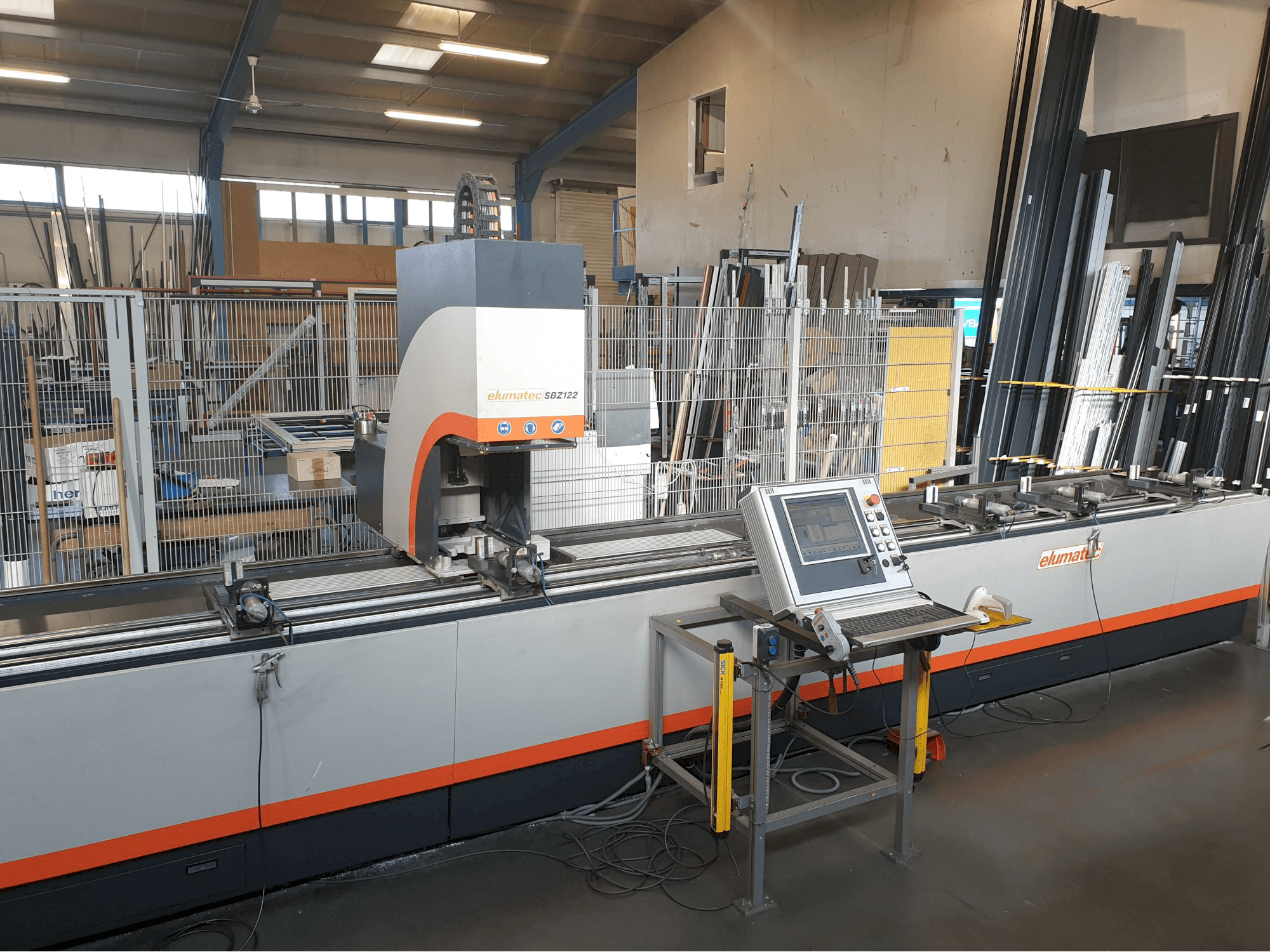

This Elumatec SBZ 122/64 Vertical Machining Center was made in 2009 in Germany and counts with a production time of 2690 working hours since then. Operated with a EluCad Control unit, this machine stands out for its two working zones incorporating an automatic clamp position movement and a power-torque cutting spindle. It counts with a long table for extra long profiles on five sides, capable of working with material like aluminum up to 4 mm of thickness. The machine presents perfect conditions, as it has been given maintenance by Elumatec itself.

Overview

brand: Elumatec
year: 2009
MODEL: SBZ 122/64
production hours: 2690
application type: Milling
Location: Luxembourg
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ 122/64

Dimensions

Machine Depth: 3400 mm
Machine Height: 2560 mm
Machine Weight: 3400 kg
Table Length: 6700 mm

Movement

X-axis Travel: 6700 mm
Y-axis Travel: 350 mm
Z-axis Travel: 280 mm

Technical Specification

Max. Tool Weight: 4 kg
Spindle Speed: 24000 RPM
Through-spindle Coolant: Yes
Tool Stations: 10

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
