- DYE FPF-2C-NC Milling Machine

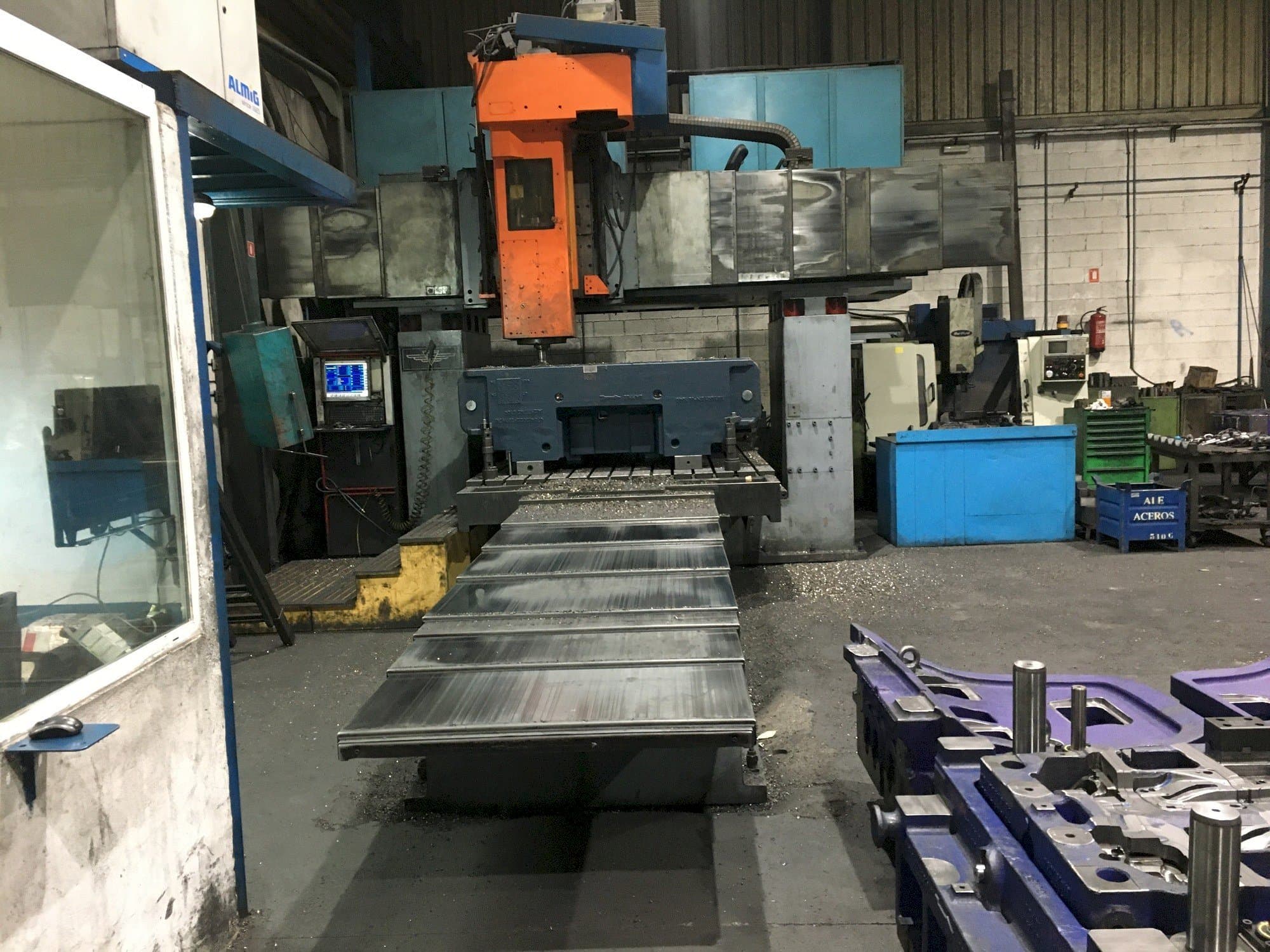

This DYE FPF-2C-NC Milling Machine was built in the year 1989. It is equipped with a Fidia M10 control unit. This machine can operate with a spindle speed up to 2000 rpm. This DYE works with a wide range of movement thanks to its large table. In 2015 the 3 servomotors and regulators were changed.
Overview
- brand: DYE
- year: 1989
- MODEL: FPF-2C-NC
- application type: Milling
- Location: Spain
- machine type: Gantry Milling Machine
- control unit brand: FIDIA
Technical Information - DYE FPF-2C-NC
General Data
- Measurements width: 11200 mm
- Measurements depth: 6300 mm
- Measurements height: 5800 mm
Control Unit
- Model: M10
- Brand: FIDIA
Main drive
- Number of spindles: 1
- Spindle speed range: 2000 1/MIN
Movement
- X-AXIS Movement: 4250 mm
- Y-AXIS Movement: 2600 mm
- Z-AXIS Movement: 1000 mm
Workpiece
- Workpiece weight: 24000 kg
Table
- Outer length: 4000 mm
- Outer width: 2200 mm
- Number of tslots: 14
- Distance between: 150 mm
Additional Information
- Technical Machine Benefits:
- - Wide range of momevent
- - Big table size
- Qualitative Machine Benefits:
- - Change of rules in 2017
- - Replacement of the 3 servomotors and controllers in 2015
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
