DYE FBF-C-N/C

Photo Gallery

DYE - FBF-C-N/CES-MIL-DYE-1986-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

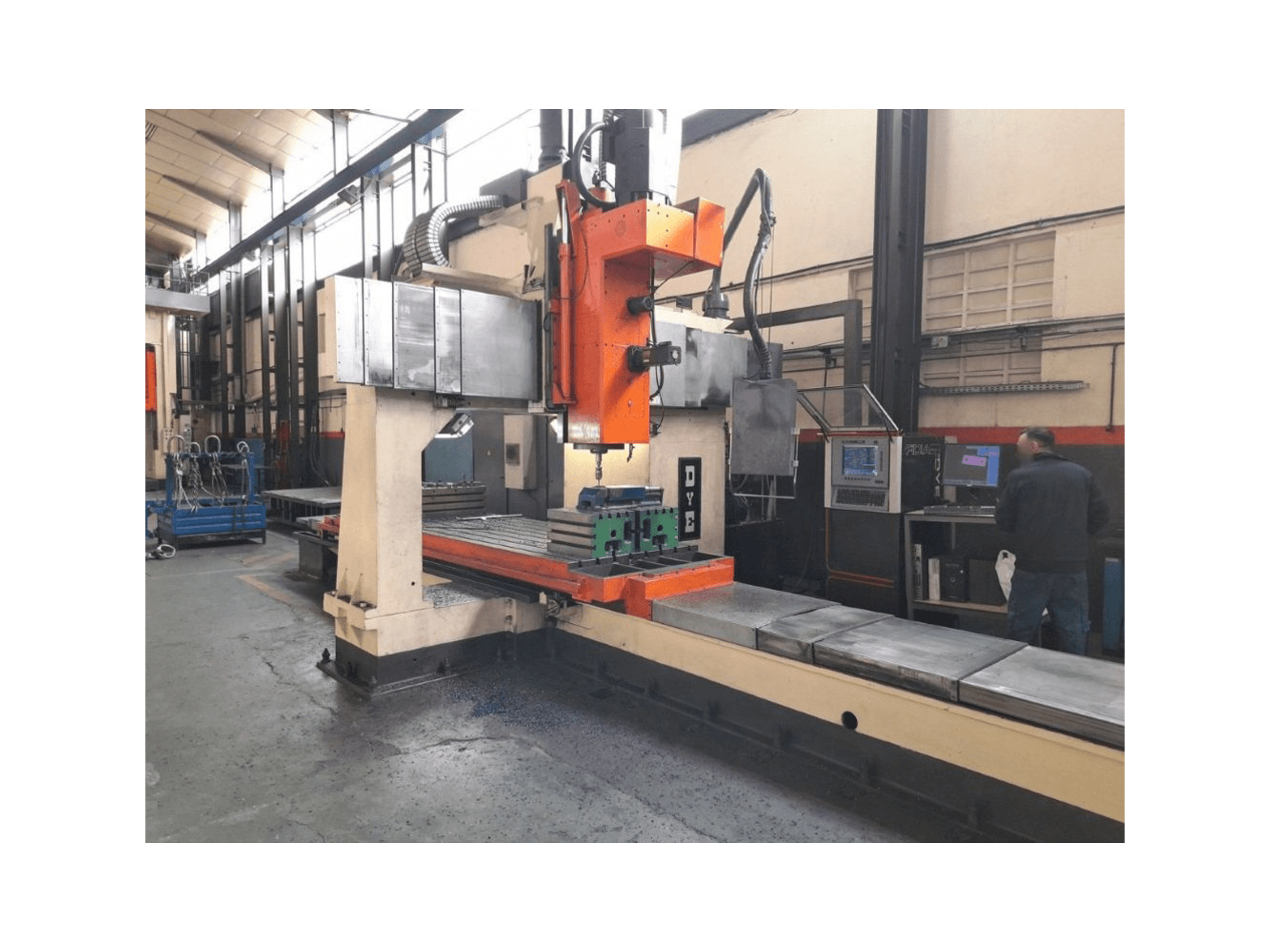

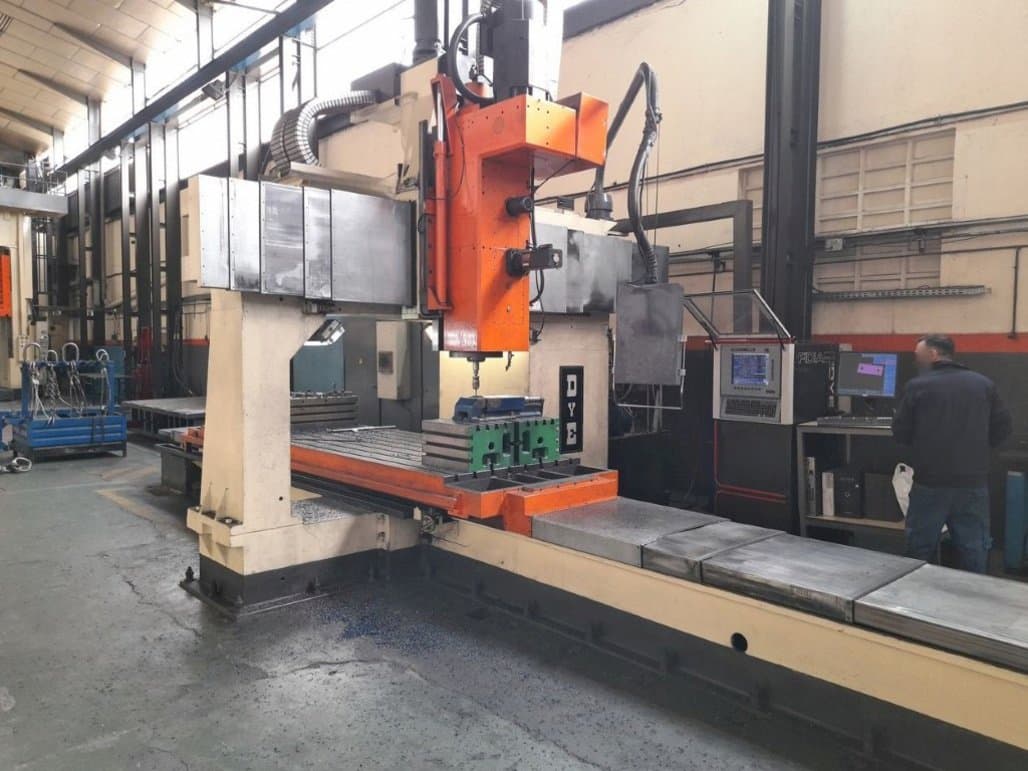

DYE FBF-C-N/C Milling machine

Show in original language

This DYE FBF-C-N/C Milling machine was made in 1986 and has been retrofitted in 1998. It operated through a Fidia PCR-0584 control unit, replaced in 2017. This 3 axis machine has a spindle speed up to 2000 rpm, a table dimension of 4000 x 1250 mm and a double chip conveyor. Always good maintenance.

Overview

brand: DYE
year: 1986
MODEL: FBF-C-N/C
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: FIDIA

Technical Information - DYE FBF-C-N/C

Control Unit

Control Brand: FIDIA
Control Model: PCR-0584

Dimensions

Machine Depth: 4400 mm
Machine Height: 5500 mm
Table Length: 4000 mm
Table Width: 1250 mm

Movement

Number of Axes: 3
X-axis Travel: 4000 mm
Y-axis Travel: 1500 mm
Z-axis Travel: 750 mm

Technical Specification

Spindle Speed: 2000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Control unit replaced in 2017
Retrofitting in 1998
Always good maintenance

Technical Machine Benefits

Distance between columns: 1850 mm
Max. Milling width: 1500 mm
Tool height correction and automatic locking
Double chip conveyor
Range of tools and accesories

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
