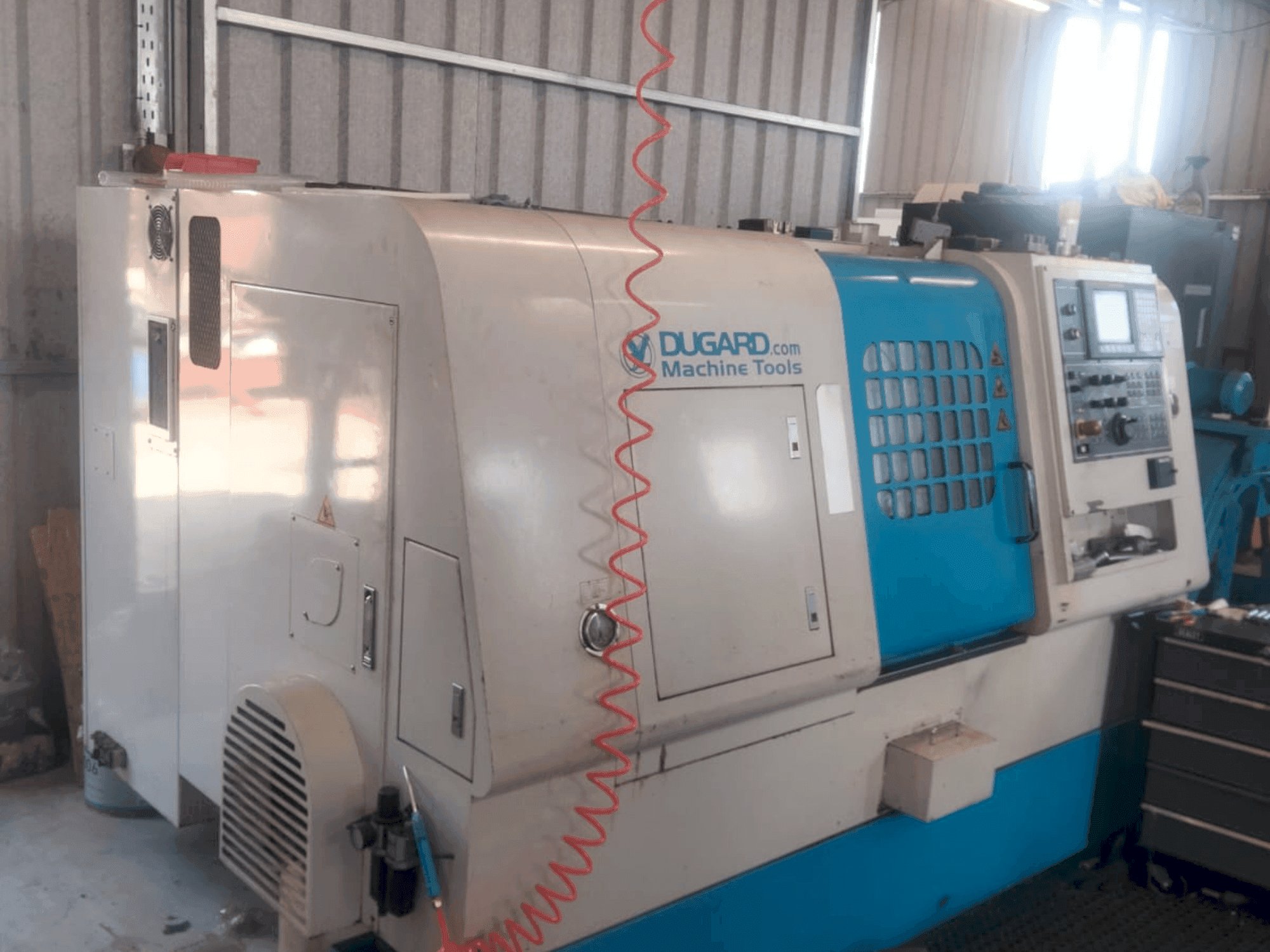

Dugard - Eagle 200IE-TUR-DUG-2006-00001

Additional equipment

• Bed Saddle and Tilting Angles: 45°
• Cone Degree of Inner Hole in 8" Main Shaft: 1/20
• Tool Turret Type: Hydraulic press type
• Hole Diameter of Boring Tool / Location: φ 32 mm / 5
• Turning Tool Sections / Location: □ 20 mm × 20 mm / 5
• Tailstock Axis Diameter: φ 75 mm // Tailstock Stroke: 425 mm
• Quill Type: Fix Quill // Quill Taper: MT No. 4 // Quill Stroke: 100 mm
• Coolant Device Motor: 180 W (1/4 HP) // Cutting Conveyor Motor: 180 W (1/4 HP)
• 6 x Tool Holders
• Swarf Conveyor

Machine Benefits

Qualitative Machine Benefits

• Used on light material only

Technical Machine Benefits

• Max. Workpiece diameter: 470 mm
• Max. Workpiece length: 508 mm
• Z axis servo motor: 1. 4 kw (1. 8 hp) //z axis fast feeding rate: 30 m/min (1181"/min)
• X axis servo motor: 1. 4 kw (1. 8 hp)
• X axis fast feeding rate: 30 m/min (1181"/min)
• Spindle hole diameter of main shaft / pull rod diameter: φ 62 mm / φ 52 mm
• Spindle nose: asa a2-6
• Hydraulic motor: 750 w (1 hp)
• Height from bed foot to spindle center: 900 mm // height from bed to spindle center: 290 mm
• 2 axis cnc lathe with tailstock

Extra Information

Machine still under power
