DOOSAN - PUMA 300 CKR-TUR-DOO-2006-00002

Name: DOOSAN PUMA 300 C
Brand: DOOSAN
SKU: KR-TUR-DOO-2006-00002
Price: 21846 GBP
Availability: InStock

£ 21,846

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN PUMA 300 C For Sale | gindumac.com

Show in original language

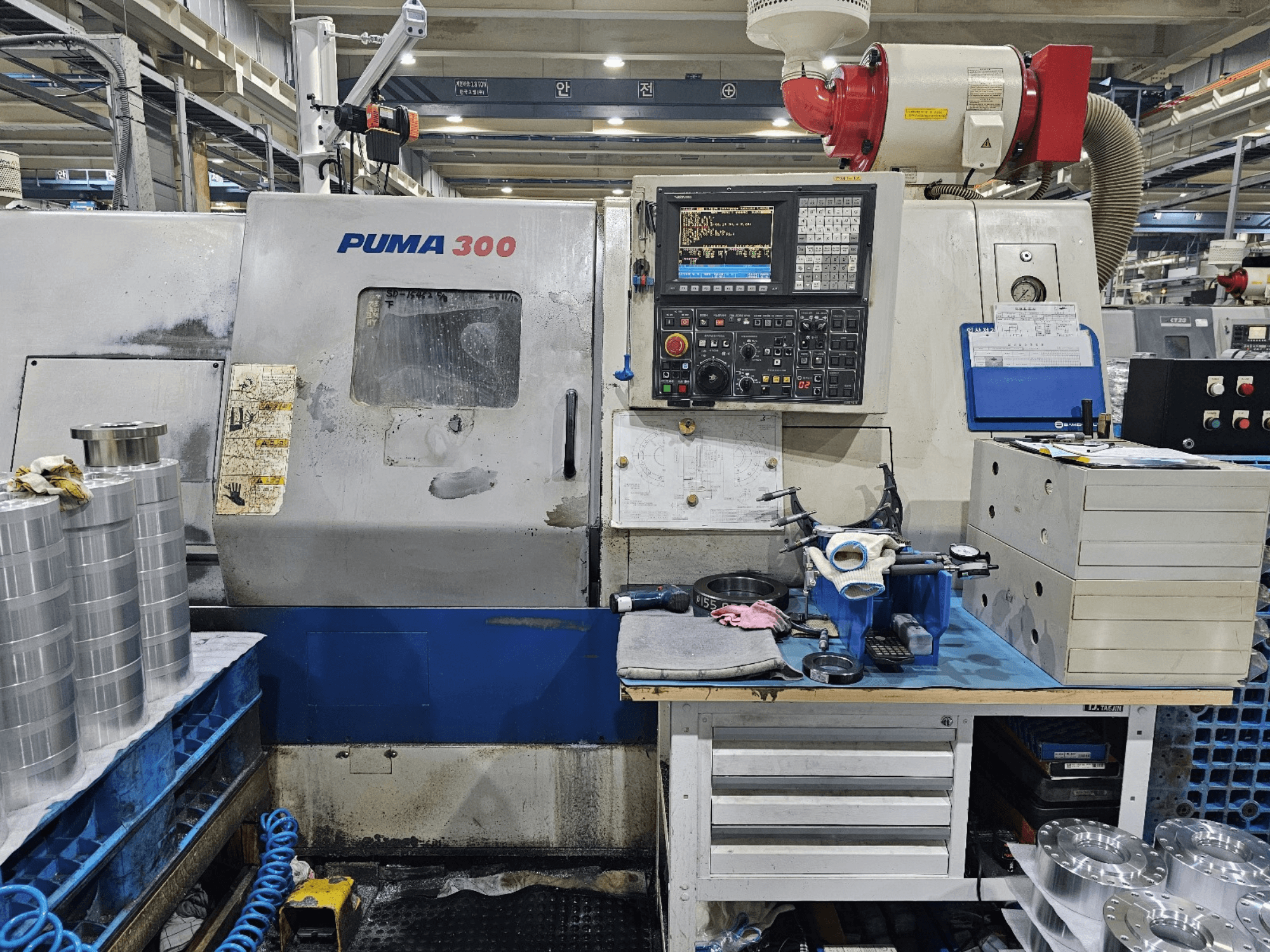

This DOOSAN PUMA 300 C horizontal turning machine was manufactured in 2006. It features a 12-inch chuck, a maximum turning diameter of 350 mm, and a maximum turning length of 760 mm. The spindle supports a speed of up to 3,500 rpm with a bar capacity of 76 mm. Ideal for precision turning, it also includes a servo indexing tool post with 12 tools. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2006
MODEL: PUMA 300 C
application type: Turning
Location: South Korea
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN PUMA 300 C

Control Unit

Control Brand: FANUC

Dimensions

Machine Depth: 3130 mm
Machine Weight: 5600 kg

Movement

Number of Axes: 2
X-axis Travel: 260 mm
Z-axis Travel: 790 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 3500 RPM

Additional Information

Additional equipment

4 units available

Machine Benefits

Technical Machine Benefits

Recommended turning diameter: 250 mm
Max. Turning diameter: 350 mm // max. Turning length: 760 mm
Bar working diameter: 76 mm
Tool size (od/id): 25 mm / 50 mm
Indexing type: servo
Quill diameter: 100 mm
Quill travel: 100 mm
Quill taper: mt#4
Electric power supply (kva): 30. 2
Maintenance done by doosan

Extra Information

12 Inch Chuck Spindle Nose: A2-8 Spindle Bearing Diameter (Front): 120 mm Spindle Bore Diameter: 102 mm Spindle Bar Capacity: 76 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
