Dugard 42 TT

Photo Gallery

Dugard - 42 TTIE-TUR-DUG-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

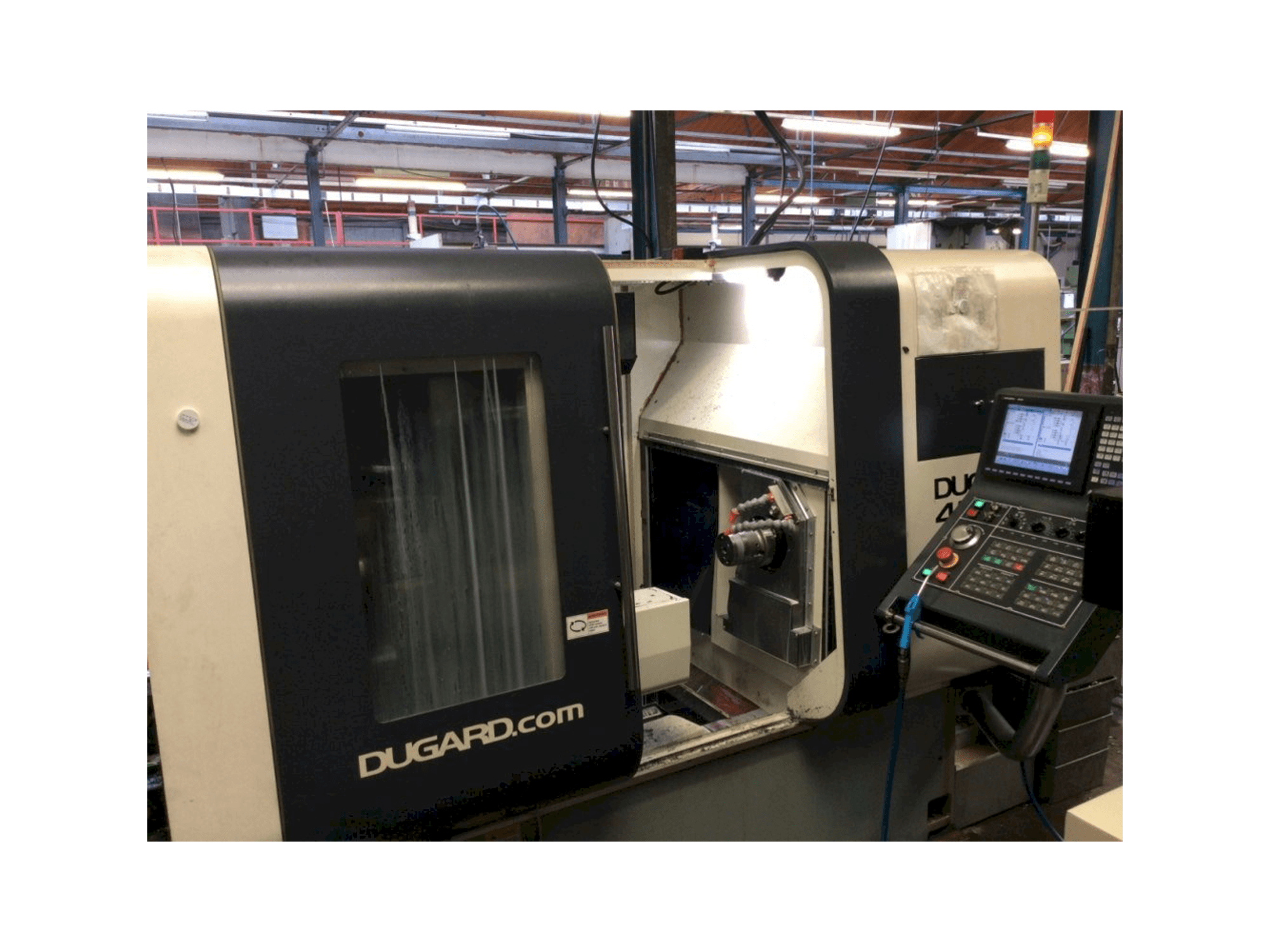

Dugard 42 TT Lathe

Show in original language

This Dugard 42 TT Lathe was made in 2012 in Taiwan. It is equipped with a Mitsubishi M700 control unit. This 2 spindle machine can work with a spindle speed up to 4000/3000 rpm. It includes a barload M06 bar feed as an additional equipment. It has been well maintained.

Overview

brand: Dugard
year: 2012
MODEL: 42 TT
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
control unit brand: MITSUBISHI

Technical Information - Dugard 42 TT

Control Unit

Control Brand: MITSUBISHI
Control Model: M700

Dimensions

Machine Depth: 1700 mm
Machine Height: 1900 mm
Machine Weight: 4200 kg

Movement

X-axis Travel: 140 mm
Y-axis Travel: 410 mm
Z-axis Travel: 230 mm

Technical Specification

Max. Workpiece Diameter: 60 mm
Spindle Speed: 4000 RPM
Tool Stations: 6

Additional Information

Additional equipment

Barload M06 Bar Feed

Machine Benefits

Qualitative Machine Benefits

Well maintained machine

Technical Machine Benefits

Spindle bore: 42/60mm
Max bar cap: 42/30mm
Spindle nose: a2-6/a2-5
Main spindle motor: mitsubishi ac spindle 7. 5kw
Sub spindle motor: mitsubishi ac spindle 3. 7kw
X1/y/z1 travels: 410/410/360mm
12 axis (8 + 2 + 2) cnc dual turning & milling complex lathe
8 aixs & 2 spindles with both x & z positioning
Live tooling on main and sub spinlde tooling blocks
12 live tools for axial & radial milling, drilling & tapping ops

Machine History

End product

Cylinder parts

Material type

Mildsteel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
