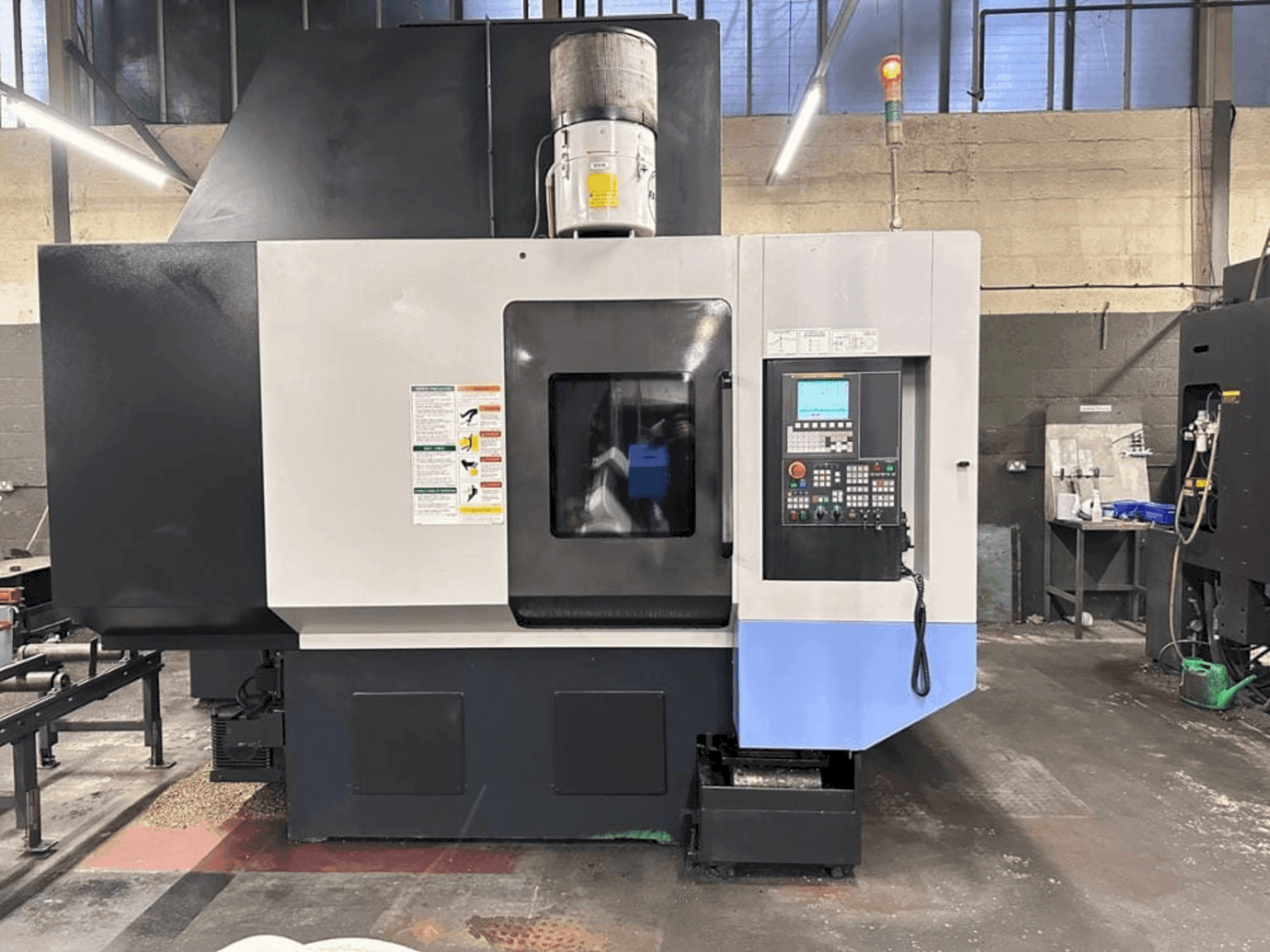

This 3-axis DOOSAN VC-510 was manufactured in 2013. It features a twin pallet vertical machining center with a table size of 2 x 860 x 570mm, a maximum workpiece height of 520mm, and a spindle speed of 10,000rpm. The machine includes a 40 tool ATC, X-axis travel of 762mm, Y-axis travel of 516mm, and Z-axis travel of 570mm. Consider the opportunity to buy this DOOSAN VC-510 vertical machining center. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2013
- MODEL: VC-510
- production hours: 29083
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN VC-510
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Weight: 9500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 762 mm
- Y-axis Travel: 570 mm
- Z-axis Travel: 570 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Additional Equipment
Selection of BT40 tool holders included
Extra Information
Workpiece
Max Workpiece Height: 520mm
Table
Table Size: 2 x 860 x 570mm
Tools
Tool Capacity: 40 tool ATC
Various BT40 Back End Spindle Tools
Media
Pumps and Equipment WPB 10-1000 Hydrajet High Pressure Coolant System
Kaukan Chiller Unit
LNS Turbo HB Swarf Conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
