DOOSAN Puma ST32G

DOOSAN - Puma ST32GCZ-TUR-DOO-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma ST32G Lathe

Show in original language

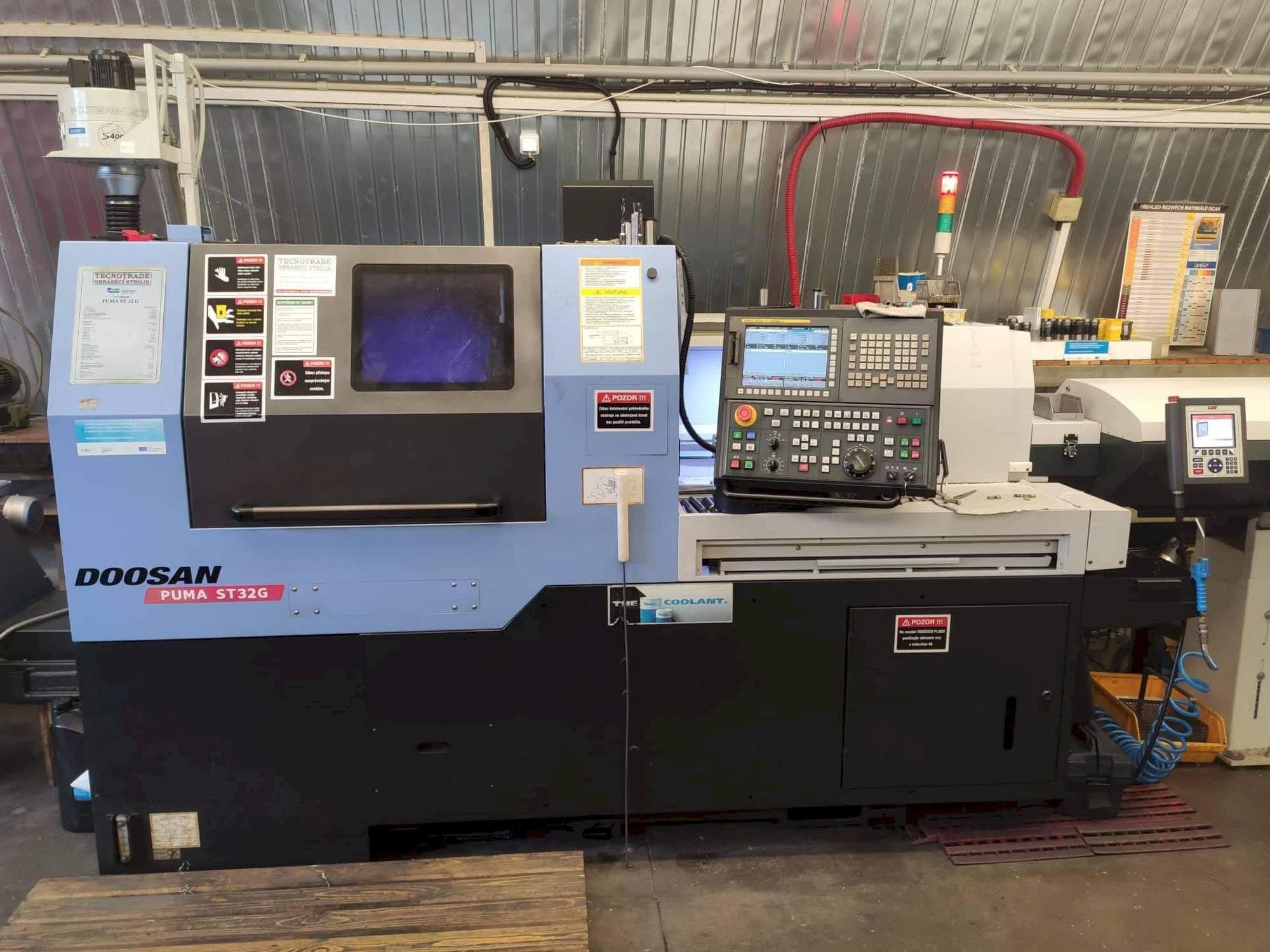

This Doosan ST32G Lathe was manufactured in the year 2013. It counts with just 1500 working hours. It is equipped with a Fanuc Series 31i-MODEL A control unit. This 7 axis machine counts with 2 spindles, the main spindle can work with a spindle speed up to 8000 rpm, and the sub-spindle can work with a spindle speed of to 6000 rpm. It includes a set of tools, tool holders, and a bar feeder 3000 mm.

Overview

brand: DOOSAN
year: 2013
MODEL: Puma ST32G
production hours: 1500
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Puma ST32G

Control Unit

Control Brand: FANUC
Control Model: Series 31i- MODEL A

Dimensions

Machine Depth: 1300 mm
Machine Height: 1800 mm
Machine Weight: 3500 kg

Movement

Number of Axes: 7
X-axis Travel: 114 mm
Y-axis Travel: 404 mm

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Set of tools and tool holders
Bar feeder 3000 mm

Machine Benefits

Qualitative Machine Benefits

Very good condition, low hours.

Technical Machine Benefits

7 axis automatic lathe
Max. Machining diameter 32 mm
Max. Machining length 320 mm
Main spindle 8. 000 rpm, 5. 5/7. 5 kw
Subspindle 6000 rpm, 2. 2/3. 7 kw
C1 & c2 indexation 0,001 deg.
Axes x2: 393 mm, z2: 343 mm
Servo motor: x1, z1, y, x2, z2: 1. 0 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
