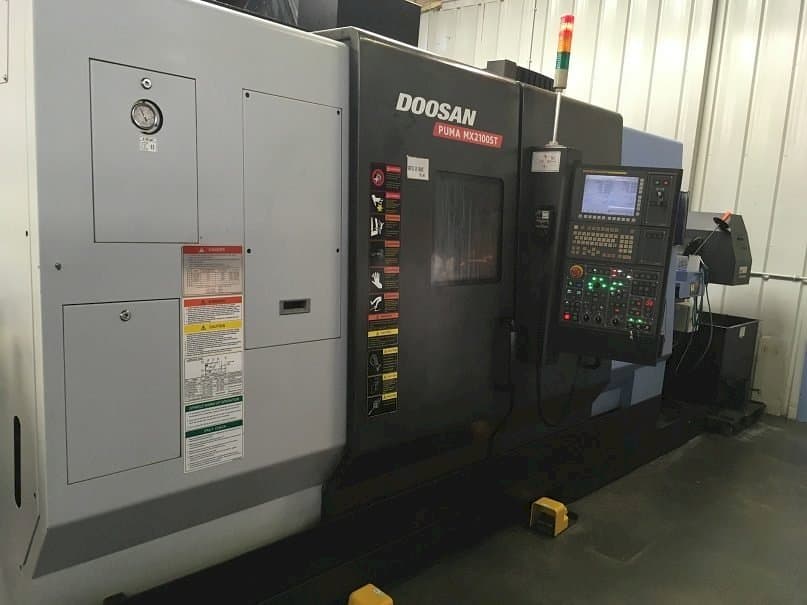

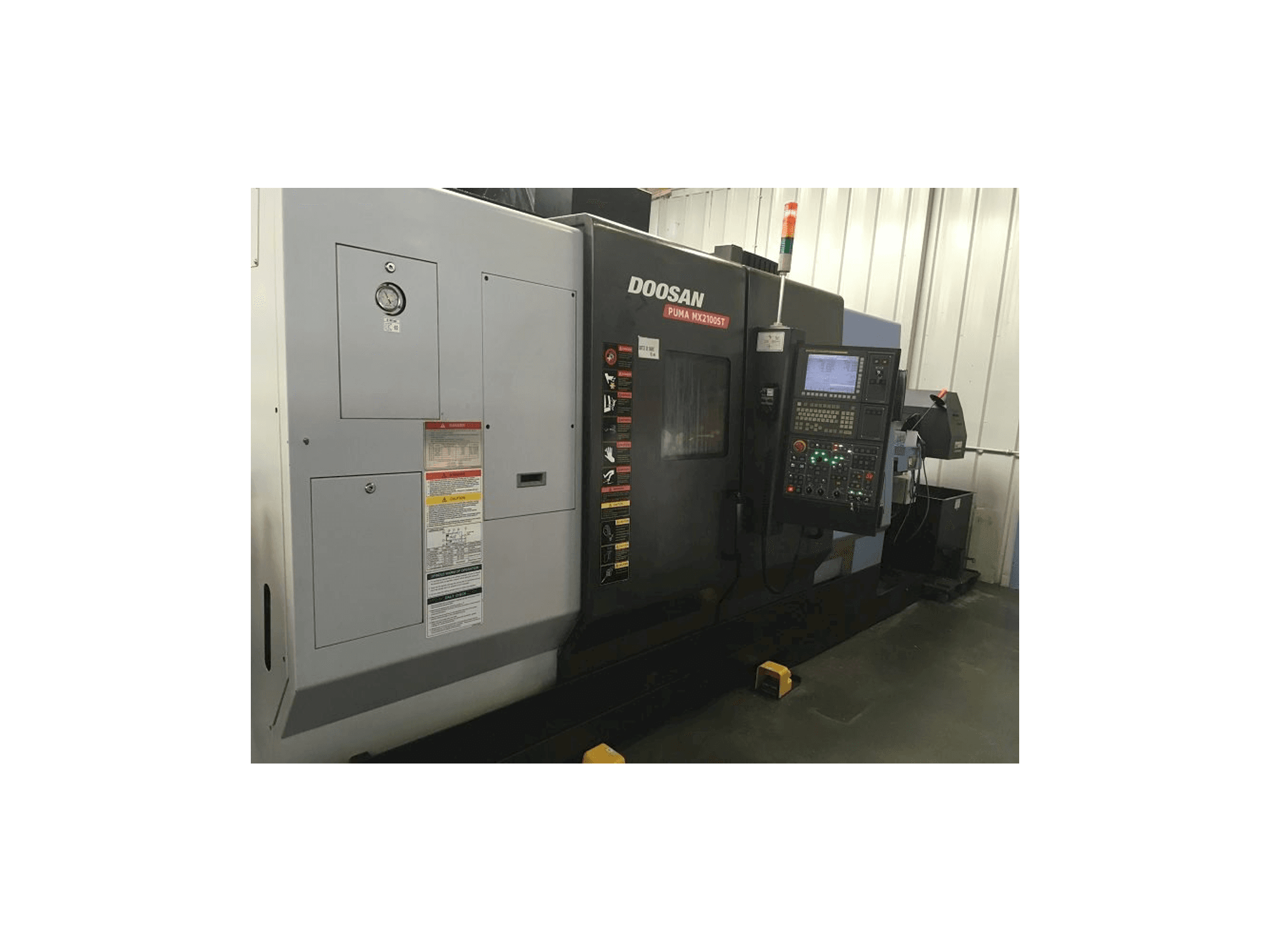

Front view of Doosan Puma MX 2100 ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma MX 2100 ST

Photo Gallery

DOOSAN - Puma MX 2100 STFR-TUR-DOO-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma MX 2100 ST Lathe

Show in original language

This Doosan MX 2100 ST Lathe was built in the year 2008 in Korea. Operated through a Fanuc 31 I Control unit, this 9 axis machine can work with a spindle speed up to 5000 rpm.

Overview

brand: DOOSAN
year: 2008
MODEL: Puma MX 2100 ST
application type: Turning
Location: France
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DOOSAN Puma MX 2100 ST

General Data

Measurements width: 7000 mm
Measurements height: 2500 mm
Machine weight: 11500 kg

Control Unit

Model: 31 I
Brand: FANUC

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 29 kW
Number of axis: 9

Movement

X-AXIS Movement: 565 mm
X-AXIS Rapid traverse: 36 mm/min
Y-AXIS Movement: 170 mm
Y-AXIS Rapid traverse: 26 mm/min
Z-AXIS Movement: 1050 mm
Z-AXIS Rapid traverse: 36 mm/min

Workpiece

Workpiece weight: 1000 kg

Tools

Number of stations: 12
Slots in storage: 40
Max tool diameter: 90 mm

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Soft jaws
Automatic power off
Tool setter
Bar feeder
Bar puller
Servo driven steady rest
Minimum quantity lubrication (mql) system

Technical Machine Benefits

Max turning diameter: 540 mm
Max turning length: 1020 mm
Turning and milling operations horizontal/vertical with y-axis
Tool taper: milling capto c 6/ turning km 63
Subspindle, c-axis, b-axis, y-axis
40-fold automatic tool changer
Automatic tool measuring device with swivel arm
Misc. Tool holders 20 capto halter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
