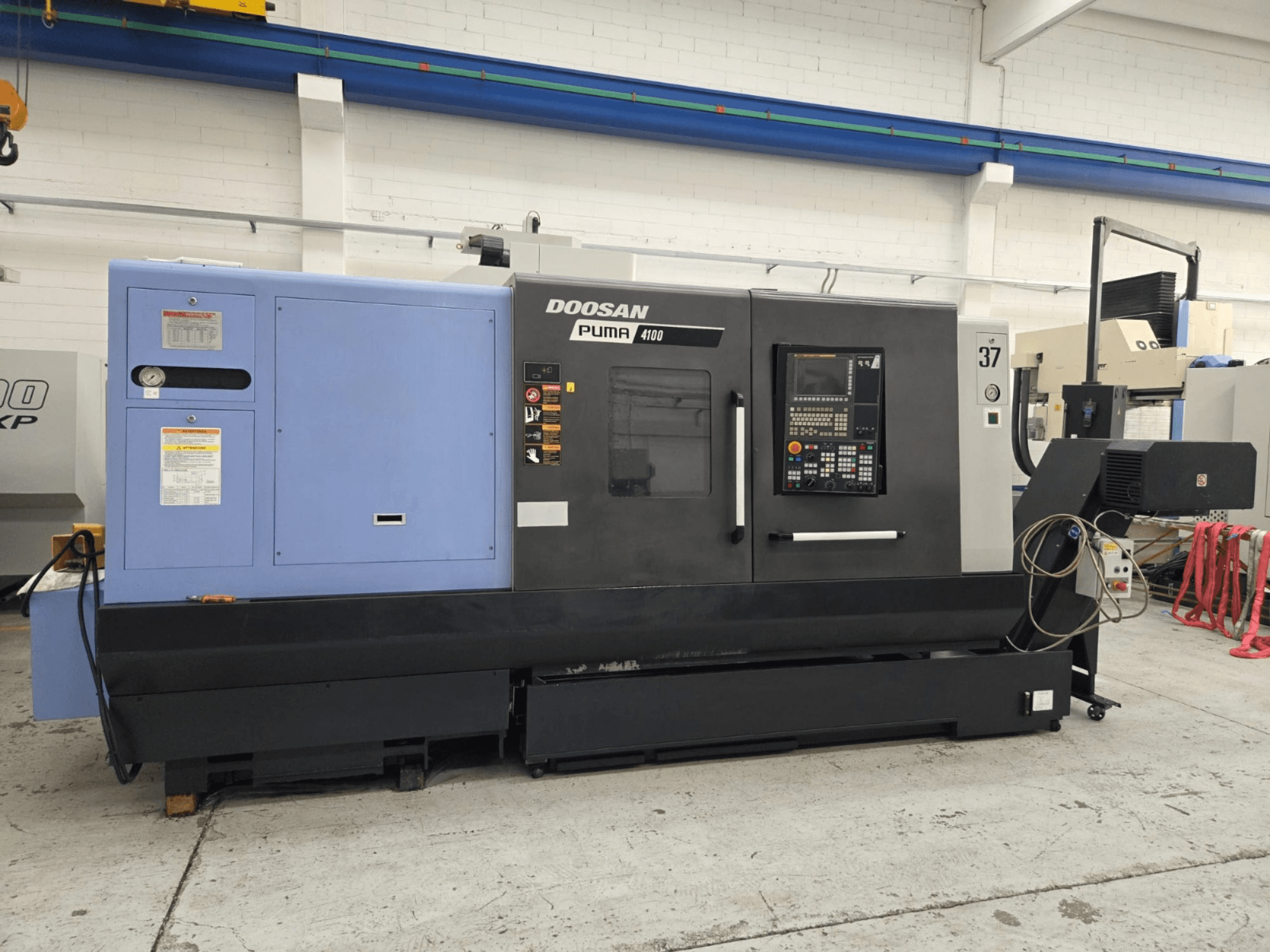

This DOOSAN PUMA 4100 B horizontal turning machine was manufactured in 2019. It features a maximum turning diameter of 550 mm and a maximum turning length of 1,042 mm. With a spindle speed of 2,000 rpm and 10 tool stations, it offers efficient machining capabilities. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA 4100 B machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2019
- MODEL: PUMA 4100 B
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DOOSAN PUMA 4100 B
Control Unit
- Control Brand: FANUC
Movement
- Number of Axes: 2
- X-axis Travel: 352 mm
- Z-axis Travel: 1105 mm
Technical Specification
- Spindle Power: 35 kW
- Spindle Speed: 2000 RPM
Additional Information
Swing over bed: 790 mm
Swing over carriage: 590 mm
Recommended turning diameter: 380 mm
Maximum turning diameter: 550 mm
Maximum turning length: 1,042 mm
Bar diameter: 116.5 mm
Spindle nose: ASA A2#11
Front spindle bearing diameter: 180 mm
Spindle bore diameter: 132 mm
Number of tool stations: 10
Maximum tool size (external): 32 x 32 mm
Boring bar diameter: 60 mm
Indexing time: 0.25 sec
Rapid feed X-axis: 16 m/min
Rapid feed Z-axis: 20 m/min
Quill diameter: 120 mm
Motorized quill bore taper: MT#6
Quill travel: 120 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
