DOOSAN Puma 2600YB II

Photo Gallery

DOOSAN - Puma 2600YB IIIT-TUR-DOO-2019-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma 2600YB II For Sale | gindumac.com

Show in original language

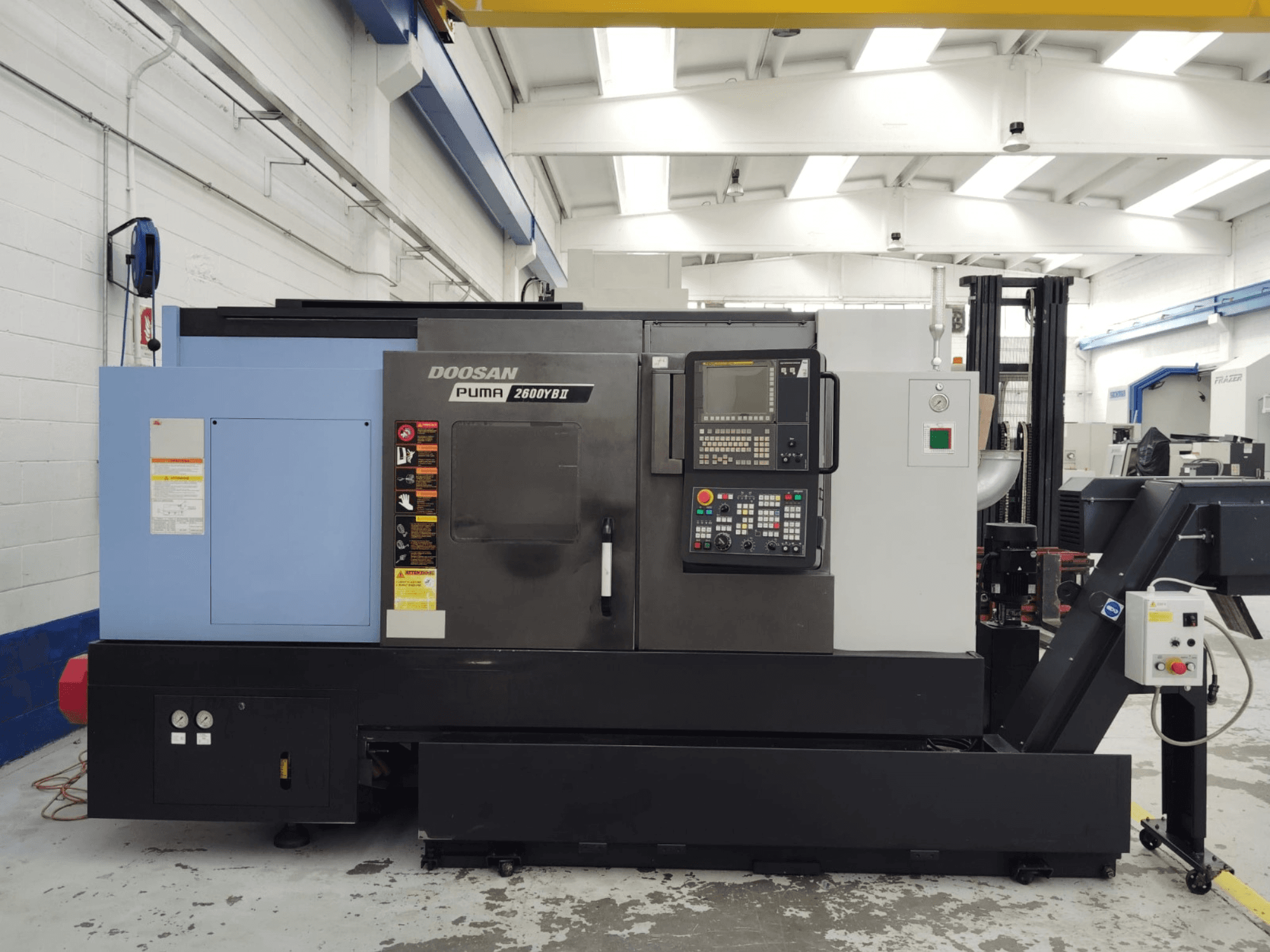

This 4-axis DOOSAN Puma 2600YB II was manufactured in 2019. It features a maximum turning length of 725 mm and a swing over bed of 780 mm. The machine is equipped with a FANUC i Series controller and includes 12 turret stations for enhanced productivity. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600YB II machine we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2019
MODEL: Puma 2600YB II
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600YB II

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Height: 2163 mm
Machine Length: 3873 mm
Machine Width: 1945 mm

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 105 mm
Z-axis Travel: 830 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Speed: 2800 RPM

Additional Information

Working hours: 4436 h
Parts count: 305
Swing over bed: 780 mm
Swing over carriage: 630 mm
Max turning length: 725 mm
Bar capacity: 102 mm
Spindle nose: ASA A2#11
C-axis indexing: 0.001 degrees
Turret stations: 12
Driven tool speed: 5,000 rpm
Rapid traverse (X/Z): 30 m/min
Tailstock taper: MT#5

Additional equipment

Chip conveyor
Tool setter
Manuals
CE Declaration

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
