DOOSAN - NHM 8000FR-MIL-DOO-2014-00002

Name: DOOSAN NHM 8000
Brand: DOOSAN
SKU: FR-MIL-DOO-2014-00002
Price: 149664 GBP
Availability: InStock

£ 149,664

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN HM 8000 For Sale | gindumac.com

Show in original language

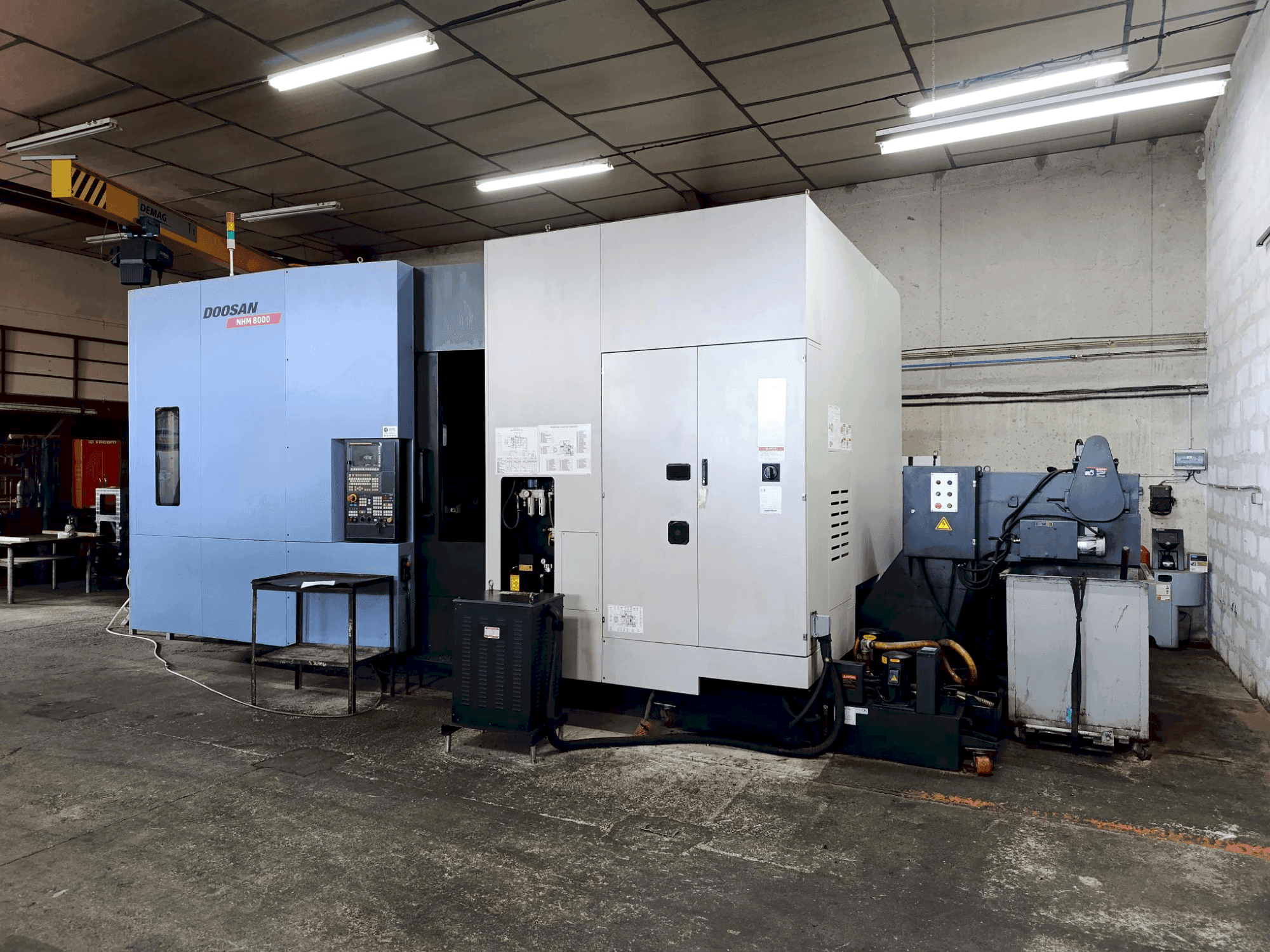

This 4-axis DOOSAN HM 8000 horizontal machining center was manufactured in 2014. Equipped with Fanuc 31i CNC control, it features a maximum workpiece diameter of 1450 mm and weight capacity of 2000 Kg. It includes a high-pressure through-spindle coolant system, chip conveyor, and both workpiece and tool probes. If you are looking to get high-quality milling capabilities consider the DOOSAN HM 8000 machine we have for sale. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2014
MODEL: NHM 8000
application type: Milling
Location: France
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN NHM 8000

Control Unit

Control Brand: FANUC
Control Model: 31i CNC

Dimensions

Machine Depth: 8150 mm
Machine Height: 3760 mm
Machine Length: 8150 mm
Machine Weight: 26000 kg
Machine Width: 4325 mm

Movement

Number of Axes: 4
X-axis Travel: 1400 mm
Y-axis Travel: 1050 mm
Z-axis Travel: 1200 mm

Technical Specification

Max. Tool Weight: 30 kg
Spindle Power: 35 kW
Spindle Speed: 6000 RPM
Taper Size: BT 50
Tool Stations: 60

Additional Information

Max. workpiece diameter: 1450 mm
Max. workpiece weight: 2000 kg
Travel (X/Y/Z): 1400 x 1050 x 1200 mm
Pallet size: 800 x 800 mm
Spindle motor power: 22/35 kW
Max. torque: 1732 N·m
B-axis: indexable by degree
Max. tool diameter: 130/320 mm
Max. tool length: 630 mm

Additional equipment

Belt-type oil skimmer
Triple light tower
Pallet centering device
Shower coolant
Through-spindle coolant 70 bar, 7.5 kW, with cyclone filtration
Automatic shutdown
Tool load monitoring
Chip conveyor
Workpiece probe OMP60
Tool probe TS27R

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
