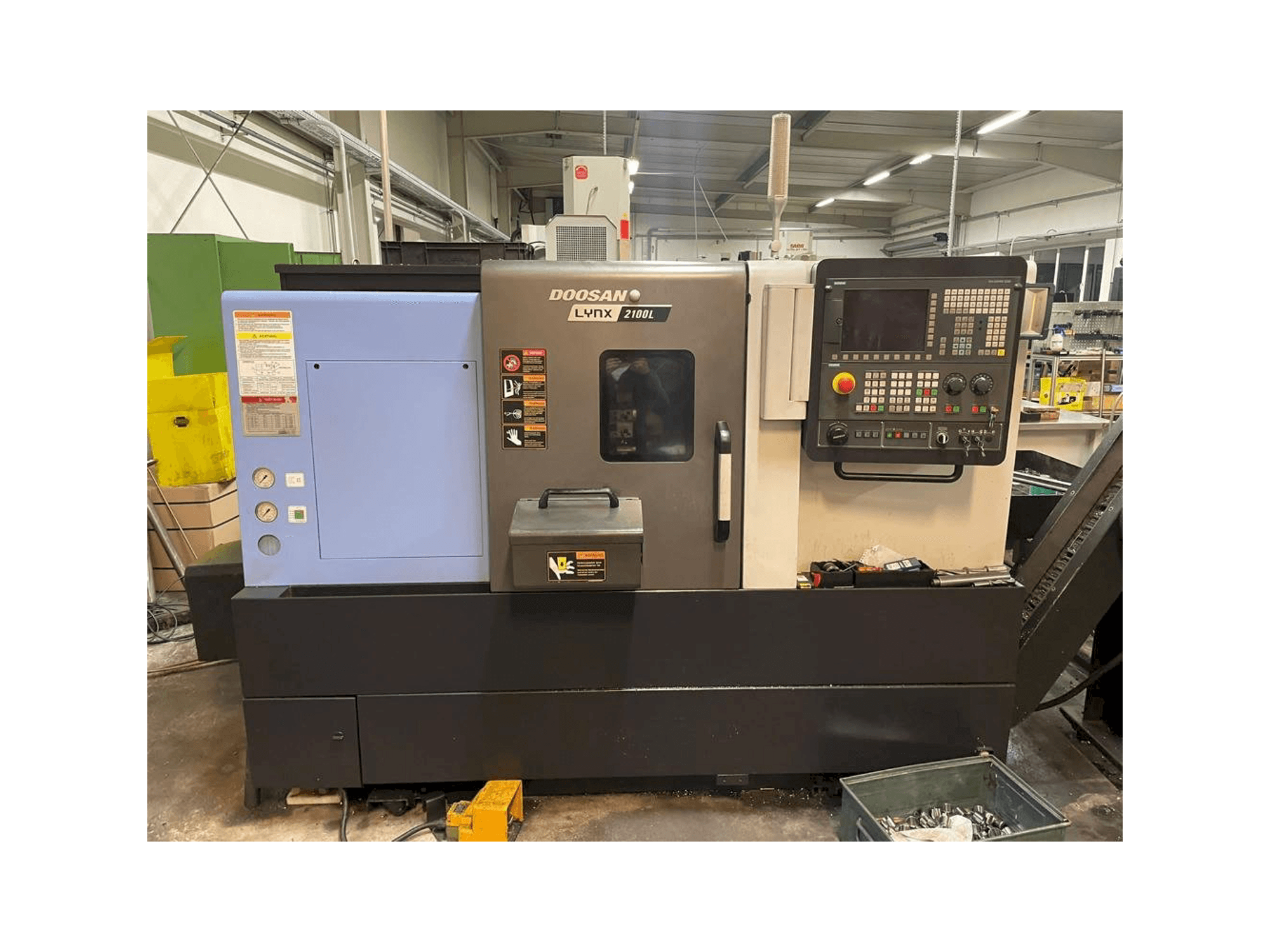

Front view of Doosan Lynx 2100LB machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 2100LB

Photo Gallery

DOOSAN - Lynx 2100LBGB-TUR-DOO-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 2100LB Lathe

Show in original language

This Doosan Lynx 2100LB Lathe was made in 2019 in South Korea. It is equipped with a Siemens Sinumerik 828D control unit and has 2 axis. The machine has a spindle speed of 4500 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2019
MODEL: Lynx 2100LB
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DOOSAN Lynx 2100LB

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 828D

Dimensions

Machine Depth: 1595 mm
Machine Height: 1693 mm
Machine Weight: 2950 kg

Movement

Number of Axes: 2
X-axis Travel: 205 mm
Z-axis Travel: 560 mm

Technical Specification

Number of Tools: 12
Spindle Speed: 4500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 600 mm, over carriage 400 mm
Maximum machining diameter 300 mm
Maximum machining length 550 mm
Bar capacity 65 mm
Main spindle motor power 15. 7/10. 5kw
Rapid feedrates xz: 30 x 36m/minute
Spindle nose a2-6
Tailstock travel 360 mm (taper mt #4, quill diameter 65)
Tool setter, parts catcher, coolant, 3 jaw chuck, usb port

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
