DOOSAN - Lynx 2100A HU-TUR-DOO-2021-00002

Name: DOOSAN Lynx 2100A
Brand: DOOSAN
SKU: HU-TUR-DOO-2021-00002
Price: 47020 GBP
Availability: InStock

£ 47,020

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Lynx 2100A For Sale | gindumac.com

Show in original language

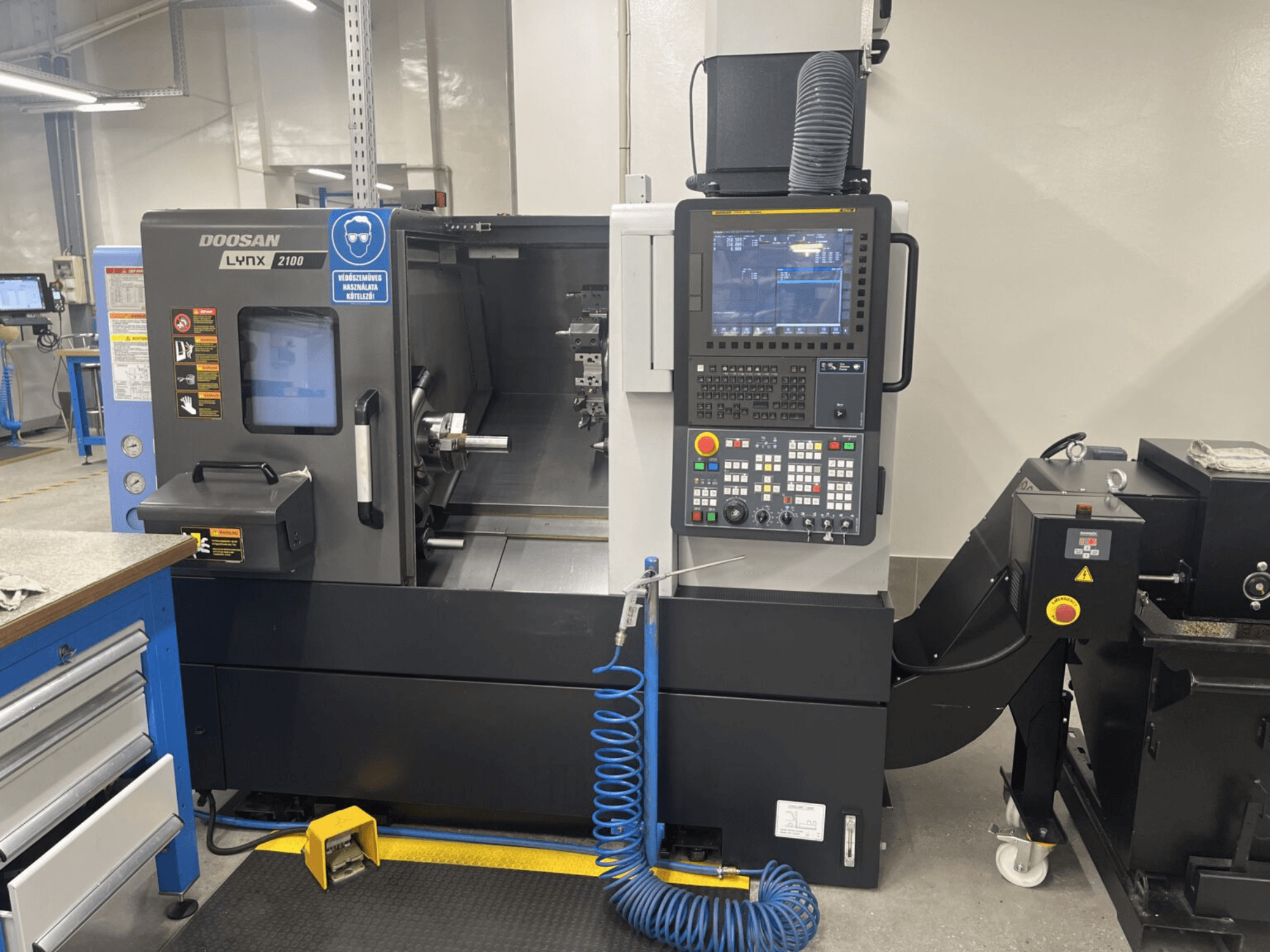

Horizontal turning machine manufactured in 2021. This DOOSAN Lynx 2100A features a maximum turning diameter of 350 mm and a turning length of 330 mm. It is equipped with a spindle speed of 6,000 rpm and a chuck size of 6” (160 mm). If you are looking to get high-quality turning capabilities, consider the DOOSAN Lynx 2100A machine we have for sale. Contact us for further details.

Overview

brand: DOOSAN
year: 2021
MODEL: Lynx 2100A
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine

Technical Information - DOOSAN Lynx 2100A

Dimensions

Machine Weight: 3100 kg

Movement

Number of Axes: 2
X-axis Travel: 205 mm
Z-axis Travel: 340 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 6000 RPM

Additional Information

Chuck size: 6" (160 mm)
Bar capacity through spindle: Ø52 mm
Max turning diameter: Ø350 mm
Max turning length: 330 mm
Rapid traverse (X/Z): 36 m/min
Tool size: 25 x 25 mm (OD), Ø32 mm (ID)
Turret: 12 stations, tool change time 0.15 s
Tailstock: Programmable with rotating tip
Options/features: Doosan tool load monitoring system; Automatic tool setting; High‑pressure coolant 7 bar (1.1 kW); Oil separator; Electrical noise suppression; Bar feeder preparation
Certification/Power: CE certification; Transformer
Operating hours: 2,898 h

Additional equipment

Basic tool holder set
Oil mist extractor
Chip conveyor
Workpiece collecting box (parts collection)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
