DOOSAN Lynx 2100A

Photo Gallery

DOOSAN - Lynx 2100A HU-TUR-DOO-2018-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Lynx 2100A For Sale | gindumac.com

Show in original language

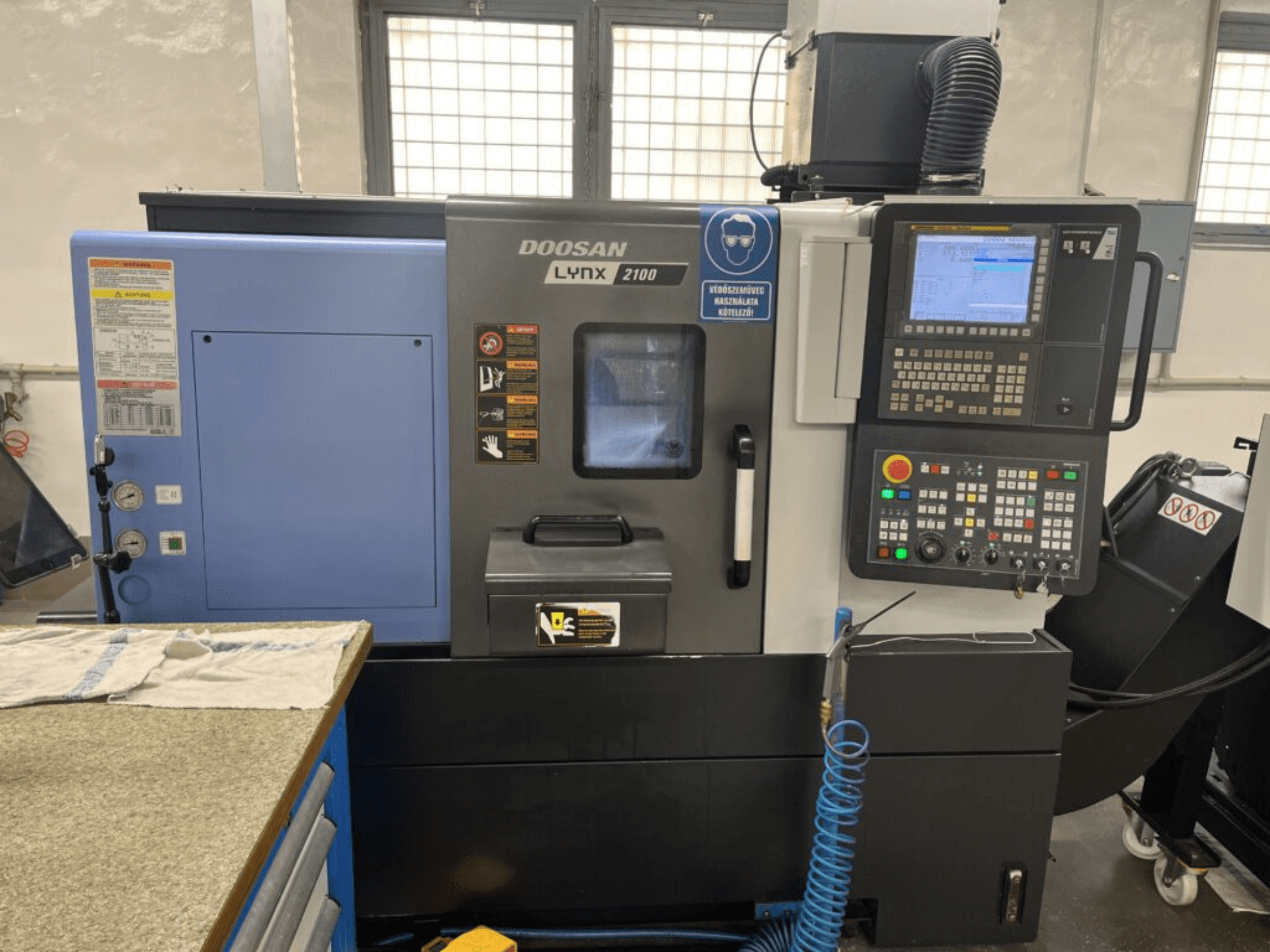

Horizontal turning machine manufactured in 2018. This DOOSAN Lynx 2100A features a maximum turning diameter of 350 mm and a turning length of 330 mm. It is equipped with a spindle speed of 5,000 rpm and a chuck size of 8” (210 mm). If you are looking to get high-quality turning capabilities, consider the DOOSAN Lynx 2100A machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: DOOSAN
year: 2018
MODEL: Lynx 2100A
production hours: 6193
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100A

Control Unit

Control Brand: FANUC
Control Model: F0i

Movement

Number of Axes: 2
X-axis Travel: 205 mm
Z-axis Travel: 340 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 15 kW
Spindle Speed: 5000 RPM

Additional Information

Control: Fanuc F0i
Operating hours: 6,193 h
Spindle: 8" chuck (210 mm); bar capacity Ø52 mm
Capacity: Max turning diameter Ø350 mm; max turning length 330 mm
Axes: rapid traverse X/Z 30 m/min
Turret: 12 stations; tool change time 0.15 s; tool shank 25 x 25 mm; boring bar Ø32 mm
Tailstock: Programmable with rotating tip
Certification: CE
Software/monitoring: Doosan tool load monitoring system

Additional equipment

Basic tool holder set
Oil mist extractor
Transformer
Bar feeder preparation
Workpiece catch with collection box
Automatic tool gauge
High-pressure cooling 7 bar (1.1 kW)
Oil separator
Chip collector
Electrical noise suppression

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
