- DOOSAN HM 630 Horizontal Machining center
Show in original language

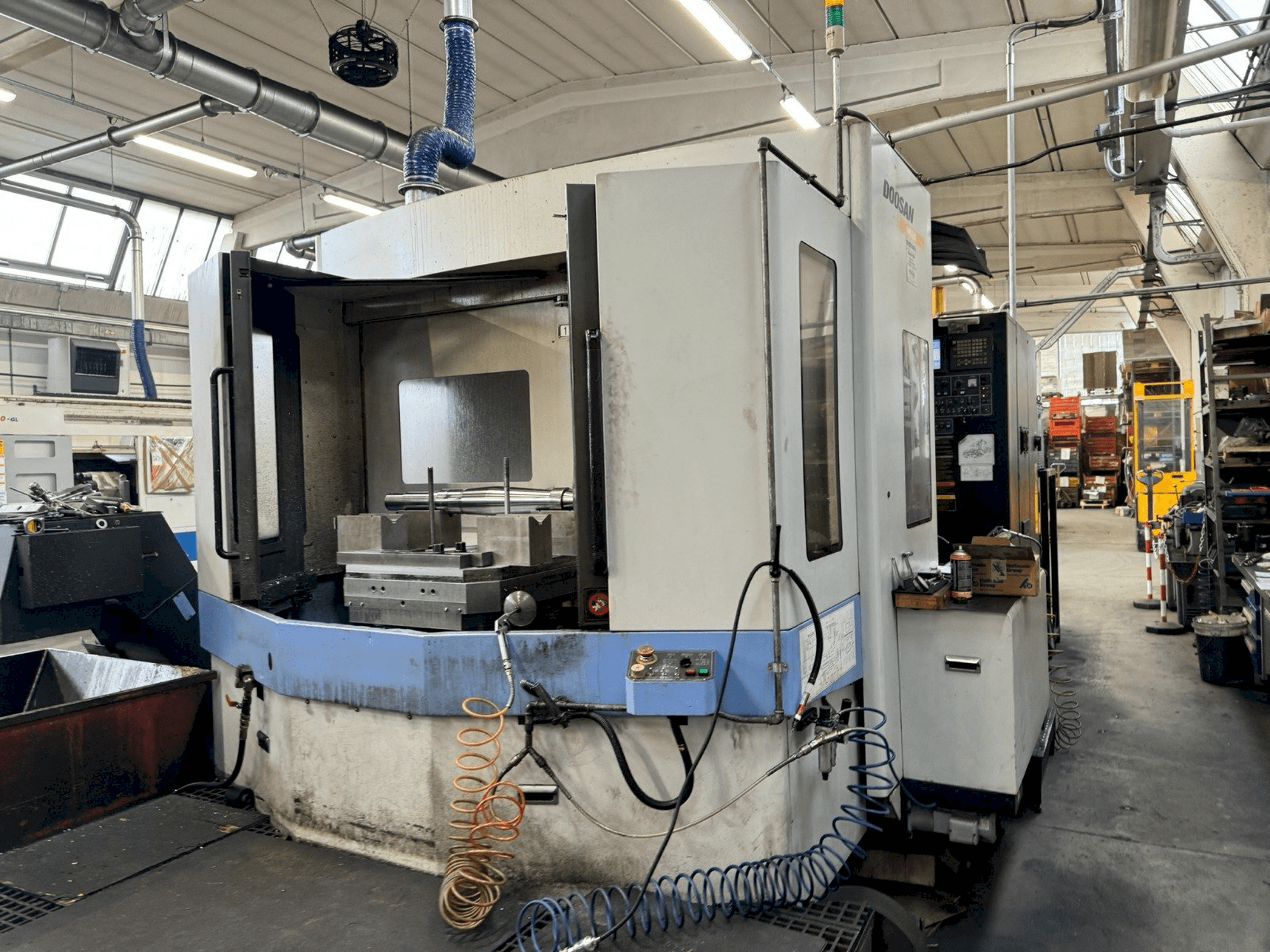

This DOOSAN HM 630 Horizontal Machining center was manufactured in the year 2007 and has 11272 production hours. It is equipped with a Fanuc Series 18i-MB control unit and has 4 axis. The machine has a spindle speed of 6000 rpm.
Overview
- brand: DOOSAN
- year: 2007
- MODEL: HM 630
- production hours: 11272
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN HM 630
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-MB
Dimensions
- Machine Depth: 3860 mm
- Machine Height: 3048 mm
- Machine Weight: 18000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 850 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Through spindle coolant
- 10 iso attachments included
- Dimensions: 6370 x 3860 x 3048 mm.
- Tot power 65 kva
- Working hours 11272
- Spindle cooler
- Conveyor
Technical Machine Benefits
- Pallet size mm. 630 x 630 x mm. 1000 y mm. 800 z mm. 850
- Iso 50 din 69871-a
- Indexed 1deg with hirth crown
- Renishaw probe rmp 60
- 30 hp
- Weight 18000 kg.
- Cnc fanuc 18i-mb
- 6000 rpm spindle
- High pressure
- Tool changer 60 positions, chain type
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
