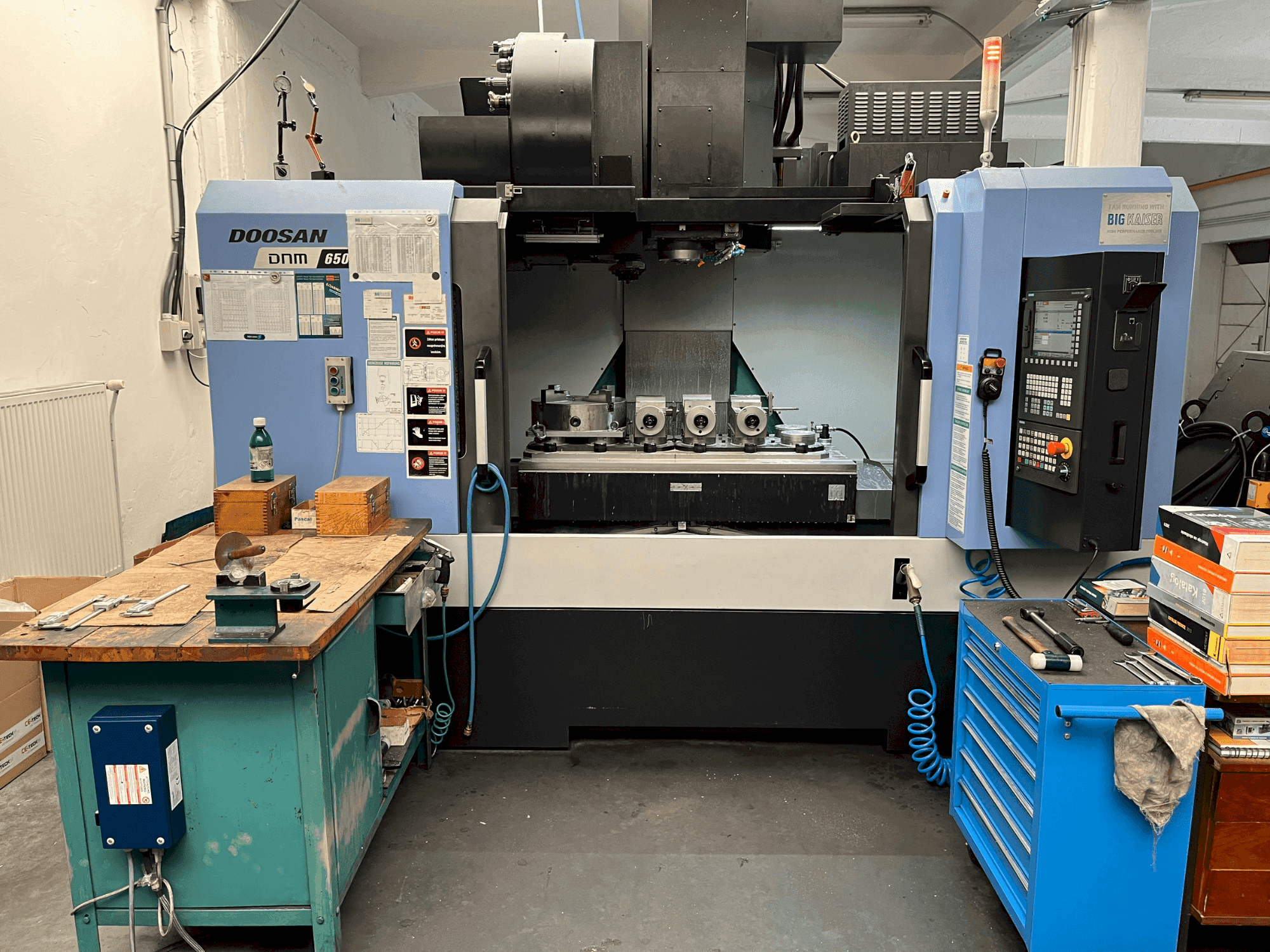

Front view of DOOSAN DNM 650 II machine
Front view of DOOSAN DNM 650 II machine

DOOSAN - DNM 650 IISK-MIL-DOO-2015-00001

£ 53,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DOOSAN DNM 650 II vertical machining center was manufactured in 2015. It features a Siemens 828D control, a spacious 1300 x 670mm table, and a robust 18.5 kW spindle motor achieving speeds up to 12000rpm. The machine includes a 30-position tool changer and SK40 tool taper, enhanced by a RENISHAW probe and internal cooling capabilities. If you are looking to get high-quality milling capabilities consider the DOOSAN DNM 650 II machine we have for sale. Contact us for more information.

Overview

  • brand: DOOSAN
  • year: 2015
  • MODEL: DNM 650 II
  • application type: Milling
  • Location: Slovakia
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - DOOSAN DNM 650 II

General Data

  • Measurements width: 2720 mm
  • Measurements depth: 4345 mm
  • Measurements height: 2815 mm
  • Machine weight: 8500 kg

Control Unit

  • Brand: SIEMENS
  • Model: 828D

Main drive

  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 18.5 kW
  • Tool taper: SK40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1270 mm
  • X-AXIS Rapid traverse: 36 m/minute
  • Y-AXIS Movement: 670 mm
  • Y-AXIS Rapid traverse: 36 m/minute
  • Z-AXIS Movement: 625 mm
  • Z-AXIS Rapid traverse: 30 m/minute

Workpiece

  • Workpiece weight: 1000 kg

    Additional Equipment

    • - RENISHAW tool and workpiece probe
    • - Internal cooling through the spindle: 12 Bar
    • - External spindle cooling with air and cutting fluid
    • - Belt chip conveyor
    • - Rinsing gun
    • - Coolant tank: 380 l
    • - Preparation for the 4th person
    • - External memory: 1 GB
    • - Block reading for 3D machining
    • - Handwheel

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Table size: 1300 x 670 mm
        • - Min - max height under spindle: 150 ~ 775 mm
        • - Spindle centre to column distance: 747 mm
        • - Tool changer: 30 positions

      Extra information

      • - Tooling, clamps, magnets available at extra charge. Machine was used for custom production in single-shift operation most of the time.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
