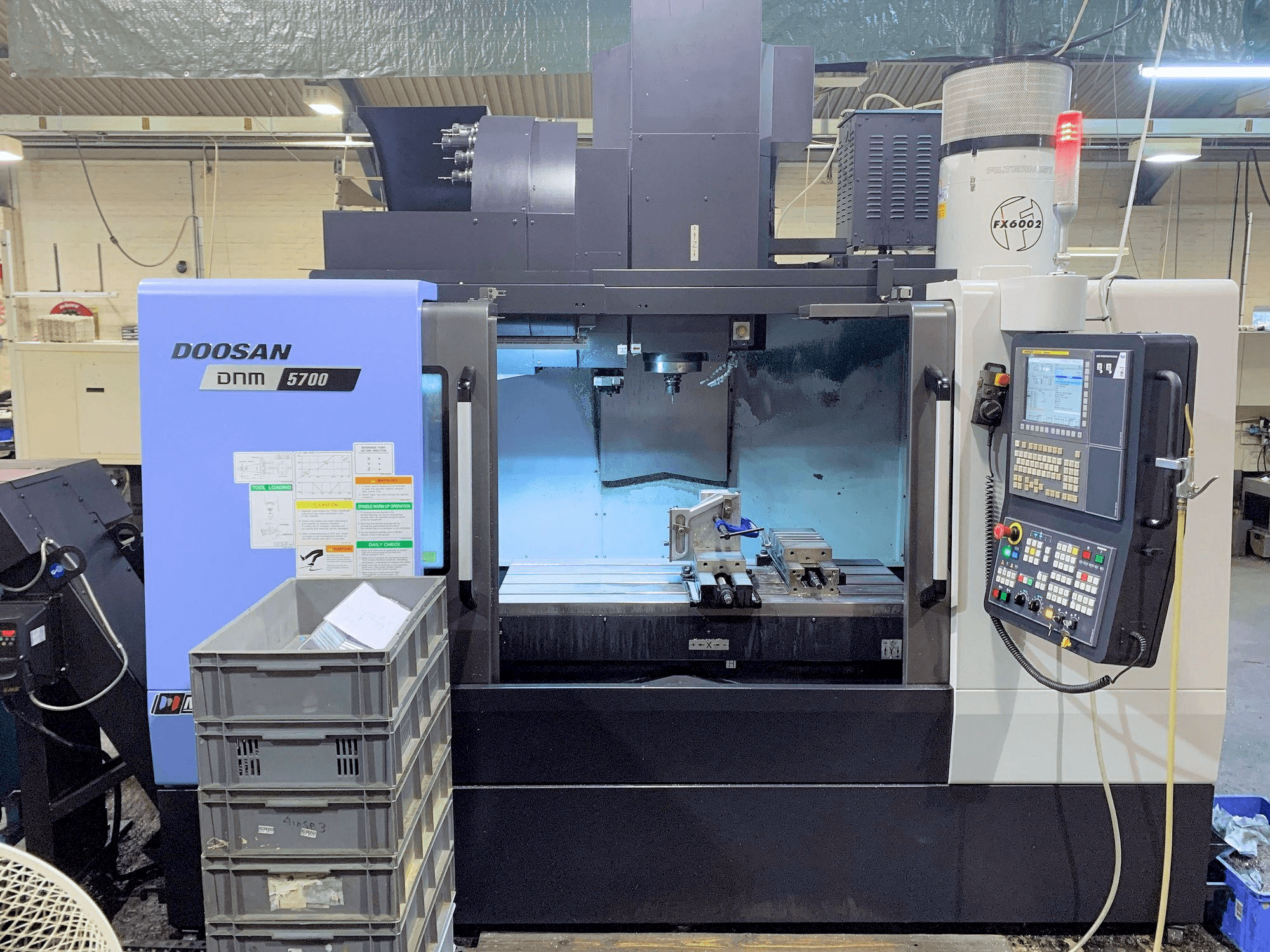

This Doosan DNM 5700 Vertical Machining Center was manufactured in South Korea in the year 2016. It has a record of 6637 power on hours, of which 2564 are running time and 1706 are cutting hours. It is equipped with a DOOSAN-FANUC i Series control unit. This 3 axis machine can work with a spindle speed of 12000 rpm. It comes with a programmable coolant nozzle and a mist extractor. This machine is in good condition.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: DNM 5700
- production hours: 6637
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN DNM 5700
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 2221 mm
- Machine Height: 2985 mm
- Machine Weight: 6500 kg
- Table Length: 1300 mm
- Table Width: 570 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1050 mm
- Y-axis Travel: 570 mm
- Z-axis Travel: 510 mm
Technical Specification
- Number of Tools: 30
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Good condition
Technical Machine Benefits
- Min-max height under spindle 150-660 mm
- Through spindle coolant
- Programmable coolant nozzle
- Mist extractor
- Coolant
- Swarf conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
