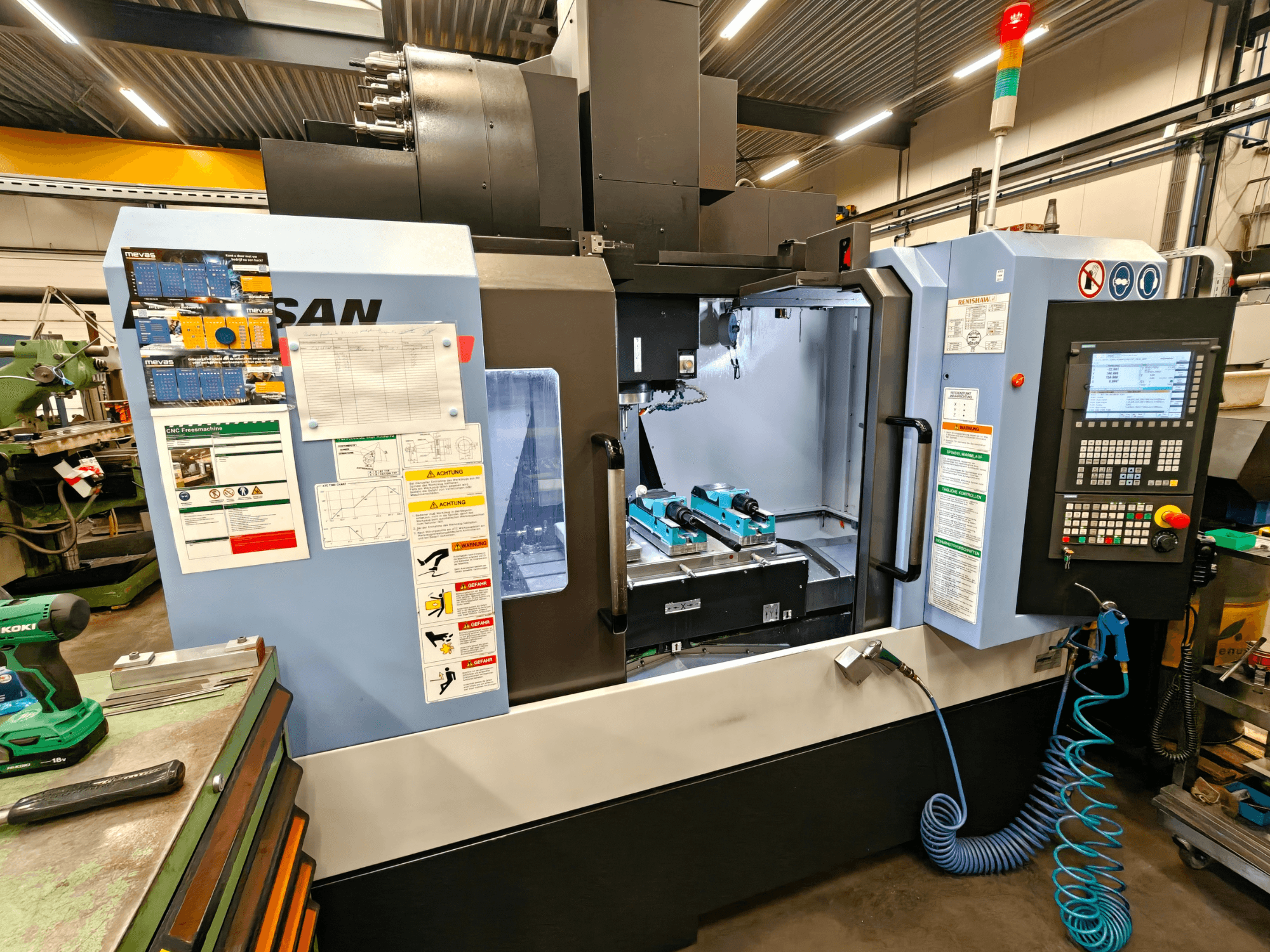

DOOSAN - DNM 400 IINL-MIL-DOO-2014-00001

• Capacity and travels:

  • Spindle nose to table: 150–660 mm

• Worktable:

  • Size: 920 x 435 mm (36.2" x 17.1")

• Spindle:

  • Max torque: 117 N·m (86.3 ft-lbs)

  • Taper: BIG-PLUS Dual Contact #40 (BT40 / CAT40)

  • Cooling: Through-spindle coolant (included)

• Automatic Tool Changer (ATC):

  • Capacity: 30 tools (cam-type double arm)

  • Tool-to-tool time: 1.3 s

  • Max tool length: 300 mm

• Feed rates and motion:

  • Rapid traverse (X/Y): 36 m/min (1,417 IPM)

  • Rapid traverse (Z): 30 m/min (1,181 IPM)

  • Max cutting feedrate: 10,000 mm/min

Additional equipment

• Workpiece clamps, tools, and toolholders available at additional cost (not included)
