Doosan Puma 700L Lathe

Show in original language

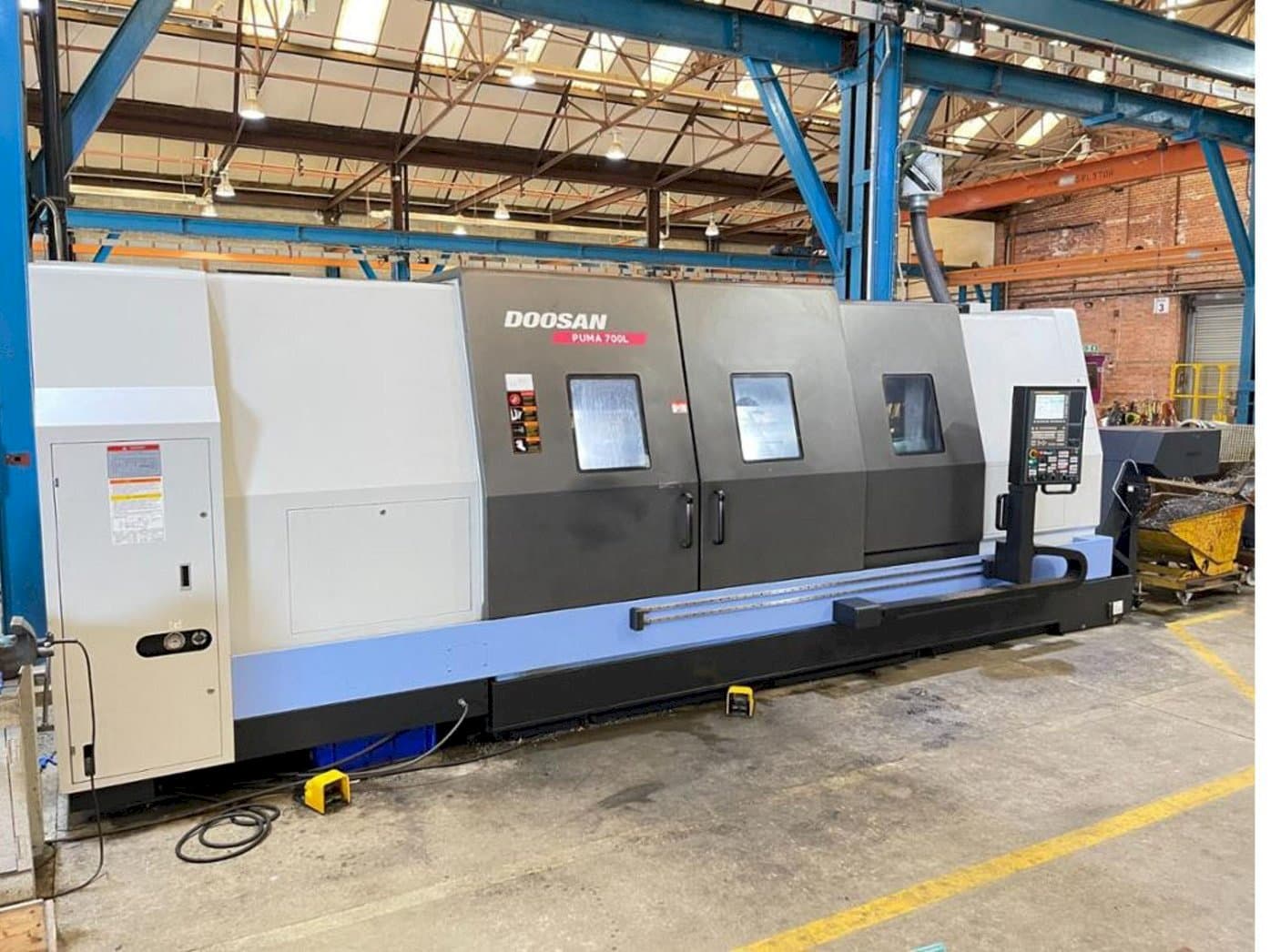

This Doosan 700L Lathe was manufactured in the year 2014 in South Korea. It is equipped with a Fanuc Series 32i-Model B control unit and has 2 axis. The machine has a spindle speed of 1500 rpm.

Overview

brand: DOOSAN
year: 2014
MODEL: 700L
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN 700L

Control Unit

Control Brand: FANUC
Control Model: Series 32i-Model B

Dimensions

Machine Depth: 2770 mm
Machine Height: 2590 mm
Machine Weight: 21800 kg

Movement

Number of Axes: 2
X-axis Travel: 470 mm
Z-axis Travel: 470 mm

Technical Specification

Number of Tools: 12
Spindle Speed: 1500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Max. Swing 1030 mm
Swing over the cross-slide: 800mm
Maximum cutting diameter : 900mm
Maximum cutting length: 3200mm
Bar capacity: 164mm
Chuck size: 609mm
Rapid feedrates: xz: 12 x 10m/minute
Spindle motor power: 45/37kw
Tailstock body travel: 3135mm, quill diameter 160mm, quill stroke 150mm, taper mt #6
Spindle nose: a1-15

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
