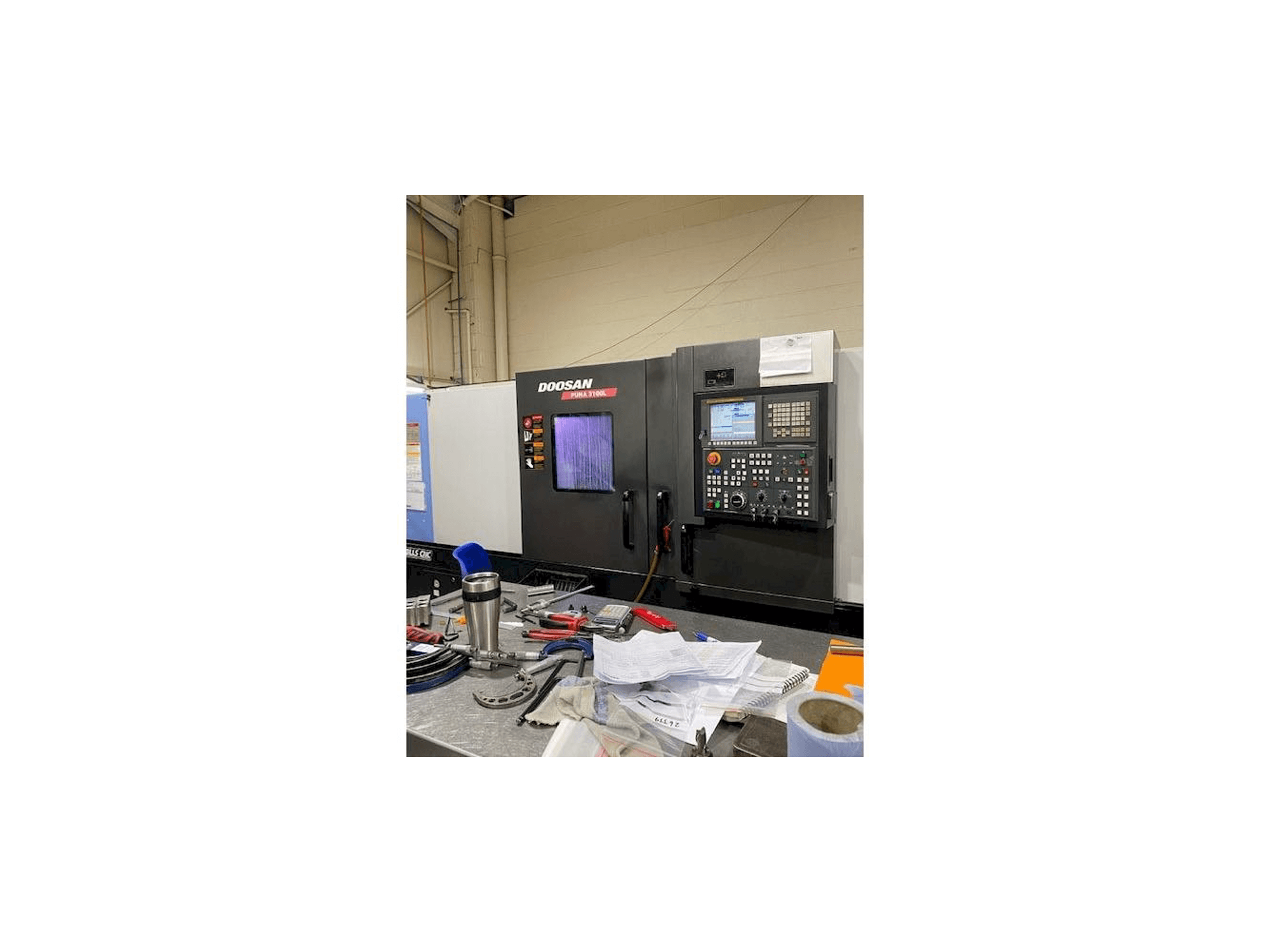

Doosan Puma 3100L Lathe

Show in original language

This Doosan Puma 3100L Lathe was made in 2013 in the United States. It is equipped with a FANUC i Series with iGuide control unit and has 2 axis. The machine has a spindle speed of 2800 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2013
MODEL: 3100L
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN 3100L

Control Unit

Control Brand: FANUC
Control Model: i Series with iGuide

Dimensions

Machine Depth: 2067 mm
Machine Height: 2010 mm
Machine Weight: 7350 kg

Movement

Number of Axes: 2
X-axis Travel: 293 mm
Z-axis Travel: 1350 mm

Technical Specification

Spindle Speed: 2800 RPM
Tool Stations: 10

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition!
Chuck diameter: 300mm

Technical Machine Benefits

Swing over bed 850 mm
Swing over the cross-slide: 670mm
Maximum cutting diameter: 525 mm
Maximum cutting length: 1310mm
Spindle motor power: 22/18. 5kw
Spindle nose: a2-11
Bar capacity: 102mm
Rapid feedrates: xz: 30m/minute
3tailstock quill diameter 100mm, mt #5
Swarf conveyor, tool setter, 3 jaw chuck, tooling, coolant, interlocked guards, low volt light
