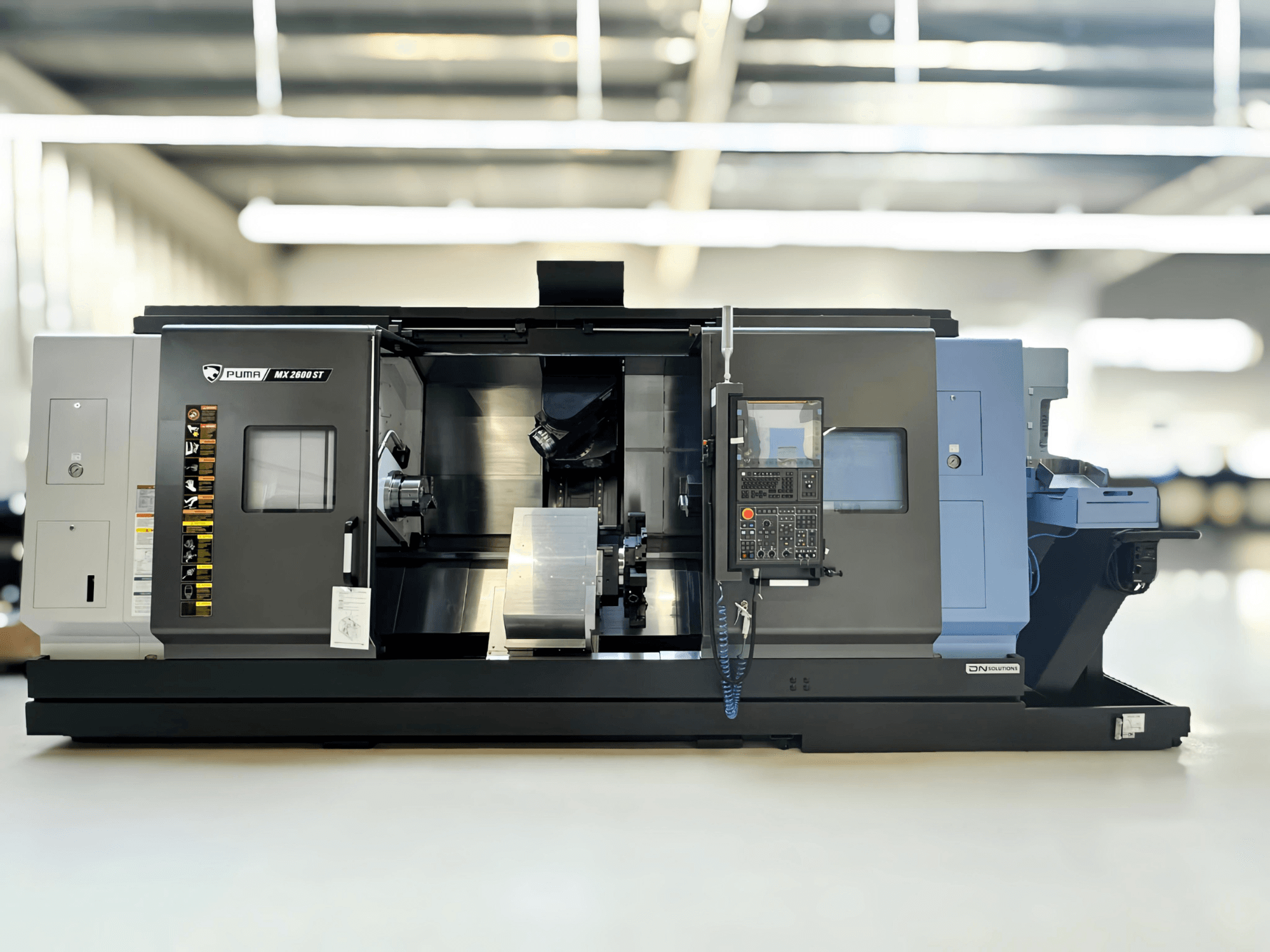

Puma MX2600ST Mill-Turn Centre in side view, featuring detailed control panel and machining area with visible tools.
Puma MX2600ST Mill-Turn Centre in side view, featuring detailed control panel and machining area with visible tools.

DN SOLUTIONS - PUMA MX2600STDE-MIL-PUM-2023-00001

£ 279,848
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 7-axis DN SOLUTIONS PUMA MX2600ST was manufactured in 2023. It features a maximum spindle speed of 4,000 RPM and a bar capacity of 76 mm. The machine is equipped with a multi-tasking configuration, including 3 spindles and a lower turret with 12 stations. If you are looking to get high-quality milling and turning capabilities, consider the DN SOLUTIONS PUMA MX2600ST mill-turn centre we have for sale. Contact us for further details.

Overview

  • brand: DN SOLUTIONS
  • year: 2023
  • MODEL: PUMA MX2600ST
  • application type: Milling
  • Location: Germany
  • machine type: Mill-Turn Centre
  • control unit brand: FANUC

Technical Information - DN SOLUTIONS PUMA MX2600ST

Control Unit

  • Control Brand: FANUC
  • Control Model: 0i-F with 15" display

Dimensions

  • Machine Height: 3025 mm
  • Machine Length: 5125 mm
  • Machine Width: 2360 mm

Movement

  • Number of Axes: 7
  • X-axis Travel: 630 mm
  • Z-axis Travel: 1585 mm

Technical Specification

  • Spindle Power: 26 kW
  • Spindle Speed: 4000 RPM

Additional Information

  • Configuration: Multi-tasking with 3 spindles and lower turret

  • Chuck size: 10" (255 mm)

  • Bar capacity: 76 mm

  • Travels:

    • X1 / X2: 630 / 230 mm

    • Z: 1,585 mm

  • Axis count: 7 (fully controlled)

    • X1 / Z1 / Y1: Milling spindle axes

    • B-axis: Milling spindle swivel/tilt (approx. 240° range)

    • X2 / Z2: Lower turret axes

    • C-axis: Spindle indexing/rotation

  • Spindle motor power: 26 / 22 kW

  • Spindle architecture: 3 spindles including top-mounted milling spindle

  • Lower turret: 12 stations, BMT 65 interface

  • Tooling interface: CAPTO C6 (milling head)

  • Guideway type: Linear guideway

  • Precision: 0.001° indexing accuracy in B and C axes

  • Thermal control: Intelligent heat compensation and optimized cooling to minimize thermal displacement

  • Cooling system: Coolant flushing for right/left spindle; high-pressure coolant through lower turret and milling spindle

  • Filtration/monitoring: Level monitoring; flow monitor

  • Data/software: AICC contouring; Data Server 1 GB

Additional equipment

  • Renishaw RMP60 probe

  • Tool setter

  • Auto door (automation)

  • Oil skimmer


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
