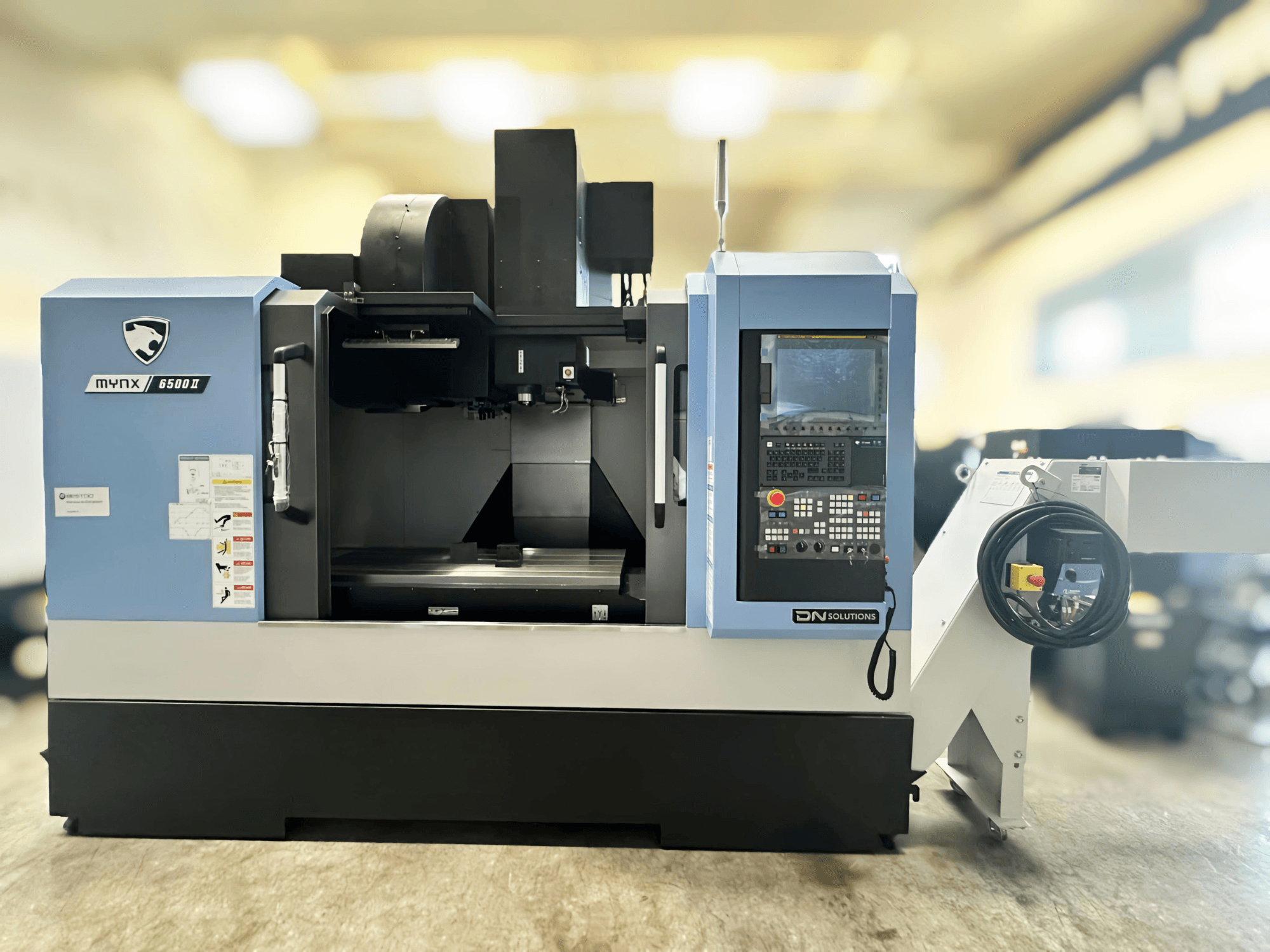

This 3-axis DN SOLUTIONS MYNX 6500 II was manufactured in 2022. It features a table size of 1,400 x 670 mm, with an impressive X-axis travel of 1,270 mm and a Z-axis travel of 625 mm. The machine is equipped with a maximum spindle speed of 12,000 RPM and a tool magazine capacity of 40 stations. If you are looking to get high-quality milling capabilities, consider the DN SOLUTIONS MYNX 6500 II vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2022
- MODEL: MYNX 6500 II
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS MYNX 6500 II
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F
Dimensions
- Machine Height: 3107 mm
- Machine Length: 2692 mm
- Machine Width: 3350 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1270 mm
- Y-axis Travel: 670 mm
- Z-axis Travel: 625 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
Table size: 1,400 x 670 mm
Rapid traverse (X/Y/Z): 30 / 30 / 24 m/min
Tool magazine capacity: 40 stations
Maximum workpiece weight: 625 kg
Guideway type: Box guideways on all axes
Memory: 400 tool offset memory slots
Cooling system: Milling spindle cooling
Stability/construction: Highly stable design for heavy-duty milling; box guideways provide maximum rigidity and vibration damping
Spindle: High-performance spindle with high torque characteristics
Automation/Safety (machine features): Load monitoring; Auto shut-off
Additional equipment
Oil skimmer (filtration)
Bar feeder interface (prepared for external bar feeder)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
