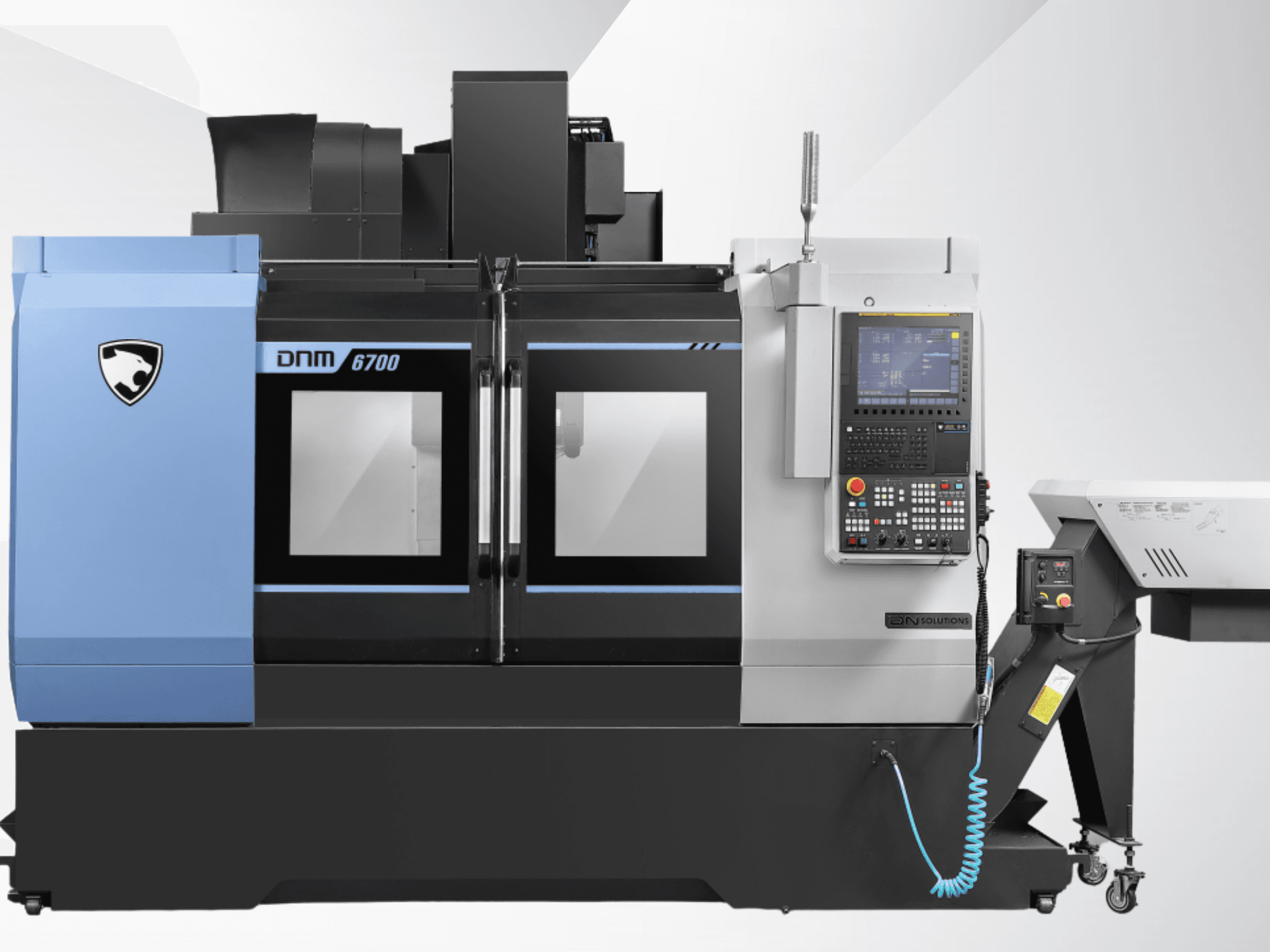

This 3-axis DN SOLUTIONS DNM 6700 was manufactured in 2024. It features an impressive X-axis travel of 1,300 mm, Y-axis travel of 670 mm, and Z-axis travel of 625 mm. The machine includes a robust table size of 1,500 × 670 mm and a maximum table load of 1,300 kg. If you are looking to get high-quality machining capabilities, consider the DN SOLUTIONS DNM 6700 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2024
- MODEL: DNM 6700
- application type: Milling
- Location: Portugal
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS DNM 6700
Control Unit
- Control Brand: FANUC
- Control Model: i series
Dimensions
- Table Load: 1300 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1300 mm
- Y-axis Travel: 670 mm
- Z-axis Travel: 625 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 12000 RPM
- Tool Stations: 30
Additional Information
15" color touchscreen display
Absolute feedback system
CE certified
Metric configuration
Power supply: 3-phase AC 380V / 50Hz
Table size: 1,500 × 670 mm
Spindle motor power: 15 / 11 kW
Spindle taper: BIG PLUS BT40
Spindle head cooling system
Tool magazine type: geared driven
Tool holder type: BIG PLUS BT40
Rapid traverse (X/Y/Z): 36 / 36 / 30 m/min
Flood coolant pump: 0.4 kW / 0.15 MPa / 40 L/min
Through-spindle coolant: 1.5 kW / 2.0 MPa (20 bar)
Embedded Ethernet
Program storage: 5,120 m (2 MB)
Program capacity: 1,000 programs
AICC II – 200 blocks
iHMI Easy Operating System (EZI & Machining Cycle)
Built-in transformer
Electrical line filter
Additional equipment
Hinged belt chip conveyor (right side)
Portable MPG handwheel
Additional axis preparation (1 axis wiring & pneumatics)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
