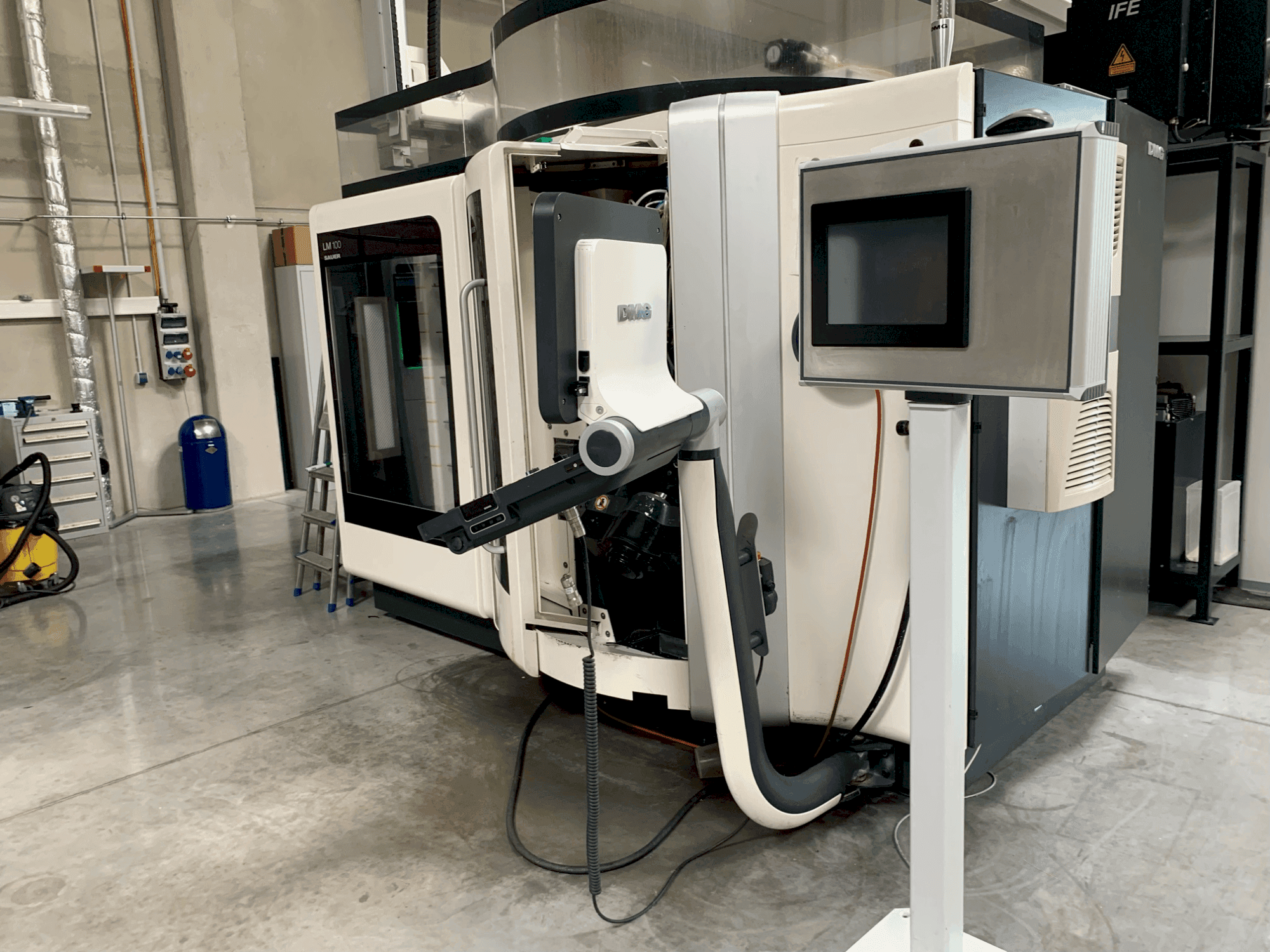

Front view of DMG Ultra Sonic 20 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG Ultra Sonic 20 linear

Photo Gallery

DMG - Ultra Sonic 20 linearDE-MIL-DMG-2010-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG Ultra Sonic 20 linear For Sale | gindumac.com

Show in original language

This 5-axis DMG Ultra Sonic 20 linear was manufactured in 2010, featuring a Siemens Sinumerik 840D control system and a robust 60-fold tool magazine. It includes a swiveling range of -10° to 130° and a rotary table diameter of 200mm. Ideal for intricate universal machining tasks, if you are looking to get high-quality machining capabilities consider the DMG Ultra Sonic 20 linear machine we have for sale. Contact us for more information about this machine.

Overview

brand: DMG
year: 2010
MODEL: Ultra Sonic 20 linear
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG Ultra Sonic 20 linear

Control Unit

Brand: SIEMENS
Model: sinumerik 840D

Main drive

Tool taper: HSK 32
Number of axis: 5

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 280 mm

Tools

Max tool diameter: 30 mm
Max tool length: 200 mm

Additional Information

Additional equipment

EROWA ITS 100 Quick Clamping System
Electronic Handwheel
Oil and Emulsion Mist Separator
Renishaw Laser System NC-4 III
DMG PowerProbe 400 Infrared Measuring Probe
Cooling Unit for Control Cabinet
3D QuickSET
Clamping Pallet for Glass Ceramic Block Material // Clamping Pallet/Tray Holder for Dental Blanks with Diameter of 98-98.5 mm
Matrix Thickness: 1-24 mm
Collar Height: 10 mm

Machine Benefits

Technical Machine Benefits

Max speed hsk e32: 42000 rpm // max speed hsk s32: 40000 rpm
Torque max: 6 nm
Max workpiece height adjustable to: 250 mm
C-axis rotary table diameter: 200 mm // rotation range: 0 to 360°
Fixed table with t-slots
24 magazine positions for hsk32 // 22 magazine positions for hsk40
60-fold tool magazine
Automatic tool changer with chain magazine
Omron software defective, needs to be controlled over normal siemens control unit
Internal cooling switched off

Extra Information

Hoses defective Brake defective Control works but NC does not switch on due to error messages

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
