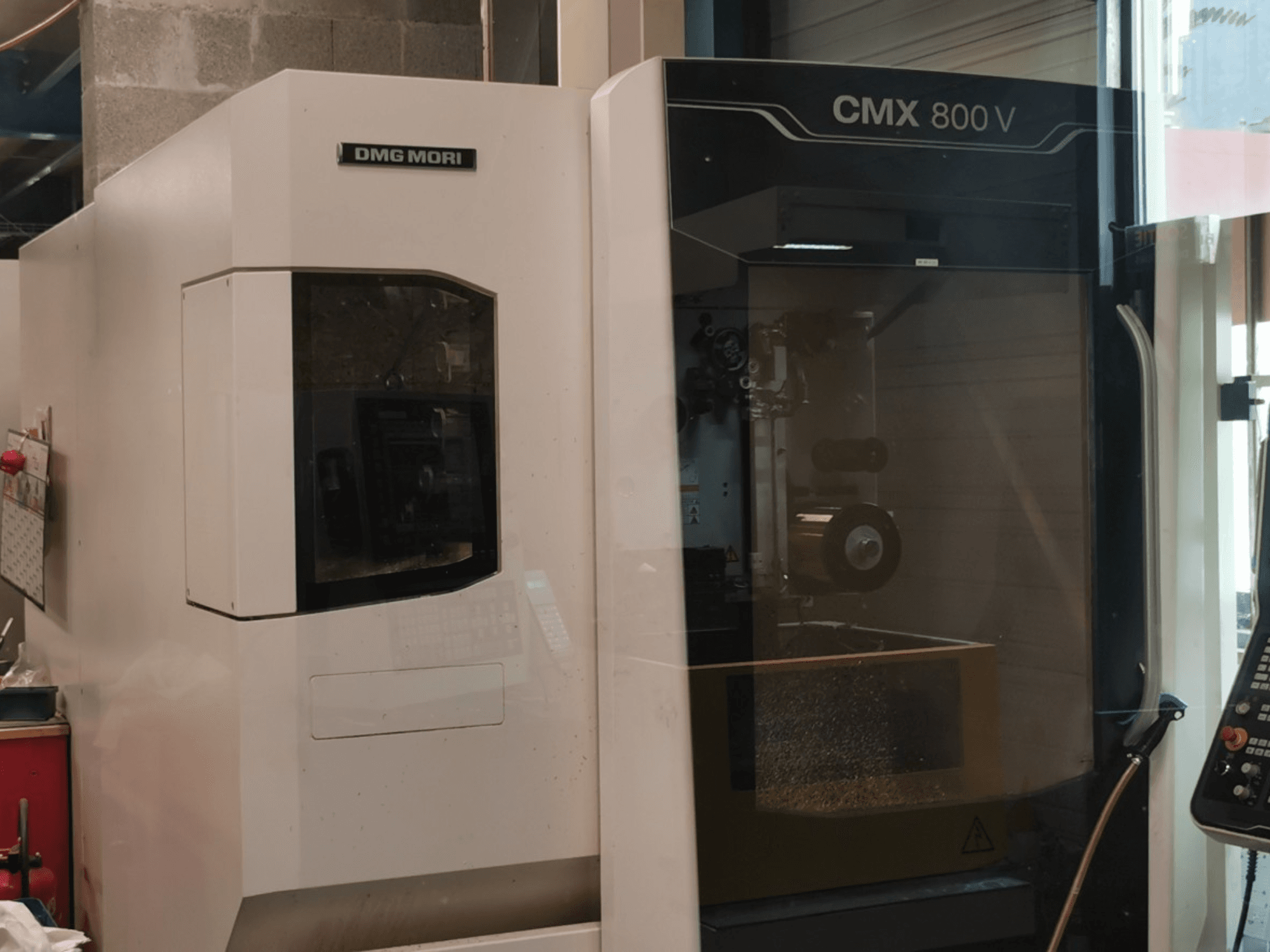

DMG Mori Seiki - CMX 800 VCH-MIL-DMG-2017-00001

- CNC Control: HEIDENHAIN TNC 620 (SLIMline Control Panel / MC 7420D PC & Screen + TE 715D Keyboard)

- Table Clamping Surface: 1,100 x 560 mm

- Max Table Load (Center): 800 kg

- Table Loading Height (Floor to top edge): 850 mm

- T-Slots: 4 / 18H12 (Distance between slots: 100 mm; 1 reference slot: 18H7)

- Spindle Speed Range: 20 – 12,000 rpm

- Spindle Drive Power (40% ED / 100% ED): 13 kW / 9 kW

- Spindle Torque (40% ED / 100% ED): 82 Nm / 54 Nm

- Tool Taper / Interface: SK40 (DIN 69871 / DIN 69872 Form A/B pull stud)

- Tool Clamping Force: 10 kN (SK40 / BT40)

- Tool Magazine Capacity: 30 pockets (chain type)

- Max Tool Diameter (with adjacent tools): 80 mm

- Max Tool Diameter (with free adjacent pockets): 125 mm

- Max Tool Length (from spindle nose): 300 mm

- Max Tool Weight (Automatic tool change): 8 kg

- Max Total Magazine Load: 240 kg

- Feed Drives: AC Servomotors on X, Y, and Z axes

- Rapid Traverse Rate (X / Y / Z): 30 / 30 / 30 m/min

- Feed Speed Range (X, Y, Z): up to 20,000 mm/min

- Position Measurement Resolution: 1 µm

- Positioning Uncertainty P (VDI/DGQ 3441): 6 µm

- Chip Management: Integrated scraper conveyor (bande grattante, 220 L coolant tank, 20 L/min pump at 5 bar)

- External Coolant & Air Supply: External adjustable coolant nozzles and blow air (M25)

- Internal Cleaning: Work area rinsing / flushing gun (pistolet de rinçage)

- Manual Axis Movement: Electronic handwheel (HR 510FS)

- Access / Safety Authorization: DMG MORI SMARTkey electronic mode selector

- Apparent Power: 32 kVA

- Rated Supply Voltage: 400 V AC ±10% (3/N/PE)

- Mains Frequency: 50/60 Hz

- Control Voltage: 230 V AC / 24 V DC

- Full Load Current (In max): 52 A

- Main Fuse: 63 A

- Short Circuit Breaking Capacity (Ics): 0.63 kA

- Basic Machine Weight: approx. 5,400 kg

- Chip Conveyor Weight: 500 kg
