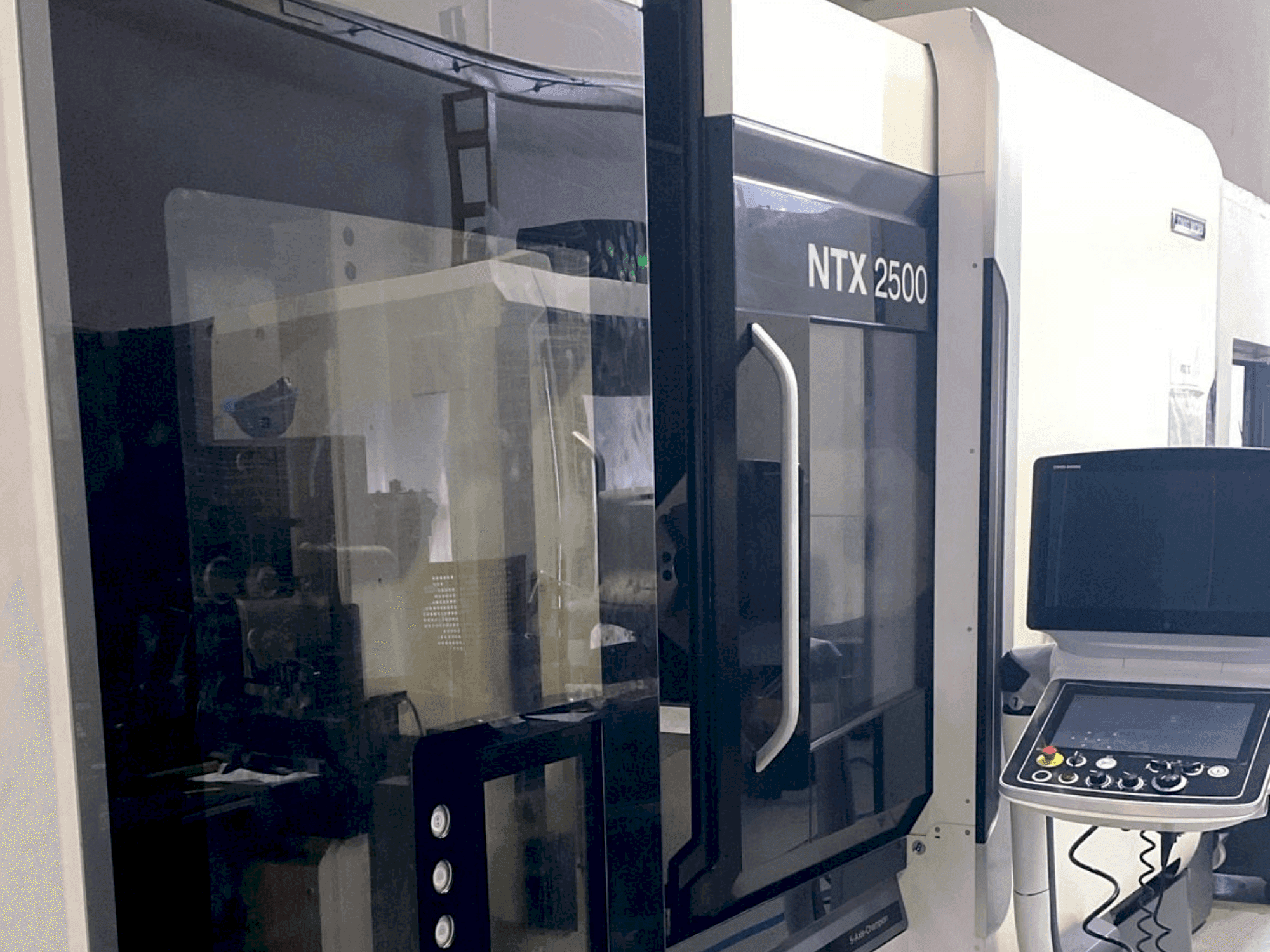

Front view of DMG MORI NTX2500 / 1500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI NTX2500 / 1500

Photo Gallery

DMG MORI - NTX2500 / 1500TR-MIL-DMG-2019-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI NTX2500 / 1500 For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI NTX2500 / 1500 mill-turn centre was manufactured in 2019. It features a high-capacity tool storage with 38 tools and a 12-station turret. Both spindles support a through-spindle hole diameter of 91 mm and a speed of 4,000 min⁻¹. The machine includes a super-high-pressure coolant system at 7 MPa and an in-machine workpiece measuring system. If you are looking to get high-quality milling and turning capabilities, consider the DMG MORI NTX2500 / 1500 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2019
MODEL: NTX2500 / 1500
application type: Milling
Location: Turkey
machine type: Mill-Turn Centre
control unit brand: FANUC

Technical Information - DMG MORI NTX2500 / 1500

Control Unit

Control Brand: FANUC

Movement

Number of Axes: 5

Additional Information

Additional equipment

Signal lamp: 4 colors (Red, Yellow, Green, Blue)
Air blow for chuck (Right Spindle)
Chip conveyor interface: Right discharge, hinge type

Machine Benefits

Technical Machine Benefits

12-station bolt-tightened turret
Tool storage capacity: 38 tools // tool spindle speed: 12000 min⁻¹, power 23/22. 2 kw
Workpiece left spindle through-spindle hole diameter: 91 mm, 4000 min⁻¹
Workpiece right spindle through-spindle hole diameter: 91 mm, 4000 min⁻¹
Workpiece left spindle chuck: 12-inch hollow chuck
Workpiece left spindle bar work capacity: 80 mm
Workpiece right spindle chuck: 12-inch hollow chuck
In-machine workpiece measuring system: radio signal transmission type touch sensor
Coolant type: water-soluble coolant super-high-pressure
Coolant system: 7 mpa through-spindle coolant movement

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
