➤ Used DMG MORI M2 For Sale | gindumac.com

Show in original language

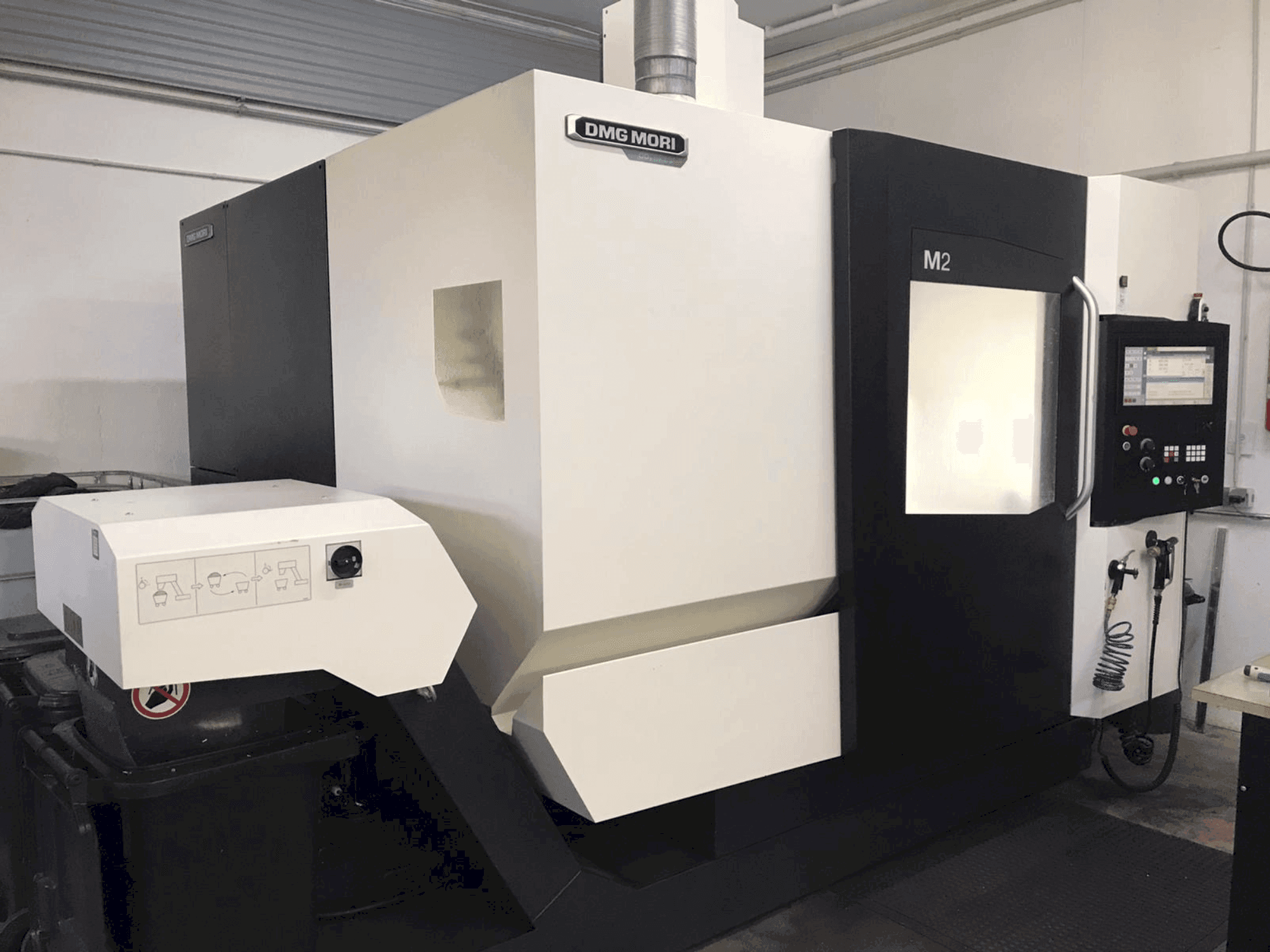

This 4-axis DMG MORI M2 vertical machining center was manufactured in 2023. It features a spindle speed range of 20 to 12,000 rpm, a tool magazine for 24 tools, and a chip conveyor. The machine offers a travel path of X/Y/Z - 1100/550/510 mm and a table size of 1400 x 600 mm. If you are looking to get high-quality milling capabilities, consider the DMG MORI M2 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2023
MODEL: M2
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI M2

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik one

Dimensions

Machine Depth: 3605 mm
Machine Height: 2855 mm
Machine Weight: 6950 kg
Table Load: 1700 kg

Movement

Number of Axes: 4
X-axis Travel: 1100 mm
Y-axis Travel: 550 mm
Z-axis Travel: 510 mm

Technical Specification

Spindle Power: 9 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Chip Conveyor in Scraper Belt Design
Coolant Spray Gun
Internal Coolant Supply 20 Bar
Bed Flushing via M-function

Machine Benefits

Technical Machine Benefits

Software option: dxf import
Dmg mori iot connector and net service
Siemens sinumerik job shop package
Drive type: inline spindle
Spindle torque: 83 nm (40% dc) / 57 nm (100% dc)
Table clamping area: 1400 x 600 mm
Tool magazine: 24 tools with double gripper
Tool clamping according to din 69872
Renishaw touch probe kit
Tool change time: average chip-to-chip time 2. 4 s

Extra Information

Machine History Manual chuck (three-jaw) diameter 160 mm for NC Rotary Table Manual tailstock for NC rotary table (stroke: 40 mm) Mechanical preparation for oil mist separator (diameter: 150 mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
