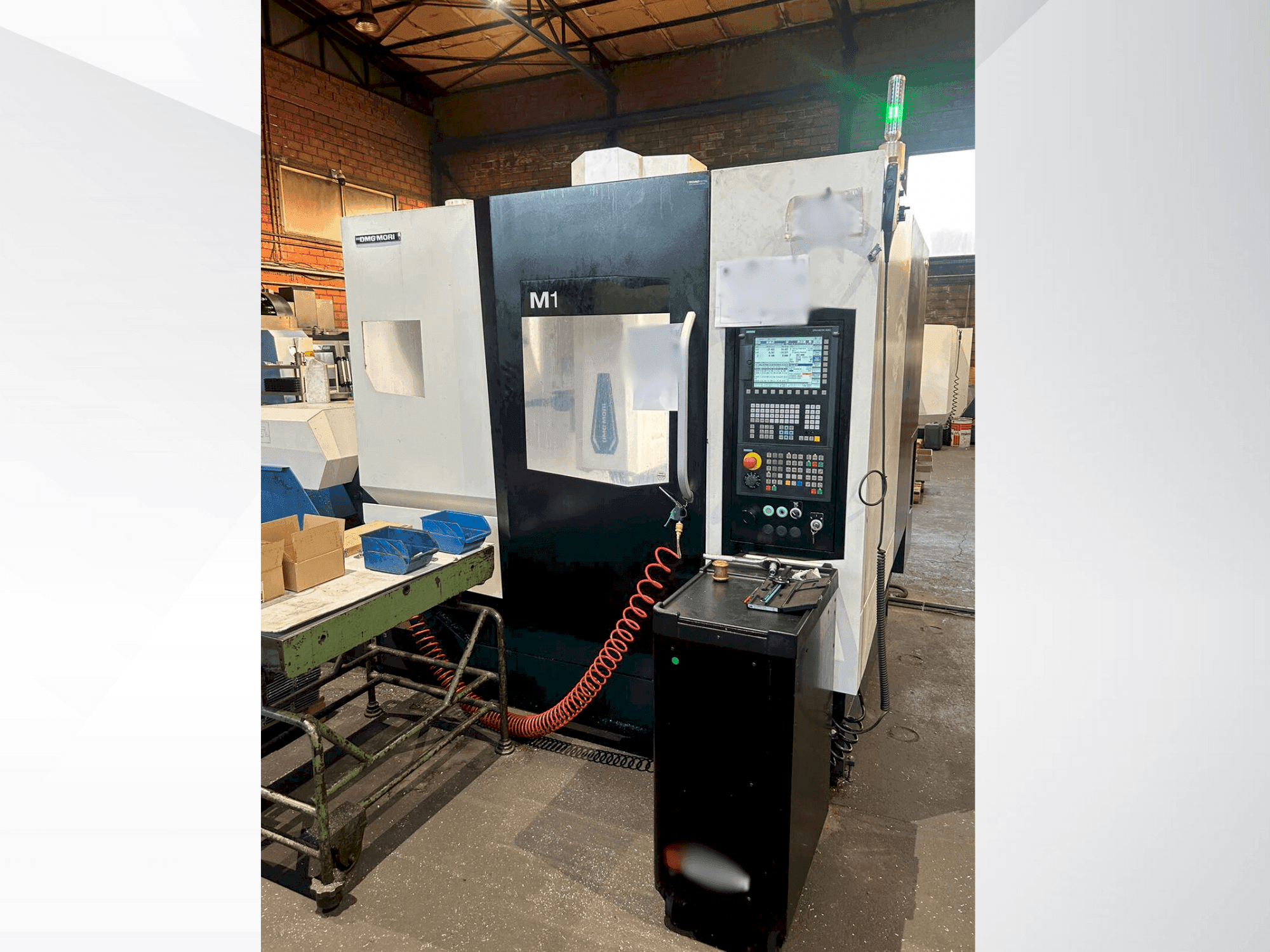

This 3-axis DMG MORI M1 PRO vertical machining center was manufactured in 2020. It features a robust SK40 spindle with speeds up to 12,000 rpm and a torque of 83/57 Nm. Equipped with a 24-slot tool magazine, rapid feed rates reach 24 m/min across X/Y/Z axes. The machine includes a high-pressure coolant system and a chip conveyor, enhancing productivity and maintenance. Ideal for precision machining, buy this DMG MORI M1 PRO vertical machining center. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2020
- MODEL: M1 PRO
- application type: Milling
- Location: Greece
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI M1 PRO
Control Unit
- Control Brand: SIEMENS
- Control Model: C-B3096F
Dimensions
- Table Length: 850 mm
- Table Width: 650 mm
Movement
- X-axis Travel: 550 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Technical Specification
- Number of Tools: 24
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Mechanical Preparation for Oil-Mist Extractor Unit (Opening Diameter: D150 mm)
- Renishaw Touch Probe-Kit
- Spray Gun
- Cabin Roof
- Real-time simulation
- Measuring cycles
- DMG MORI IoTconnector and NETservice
- Machine 3D Model in STEP Format
- External Electronic Handwheel (C-H3025F)
- ShopMill
Machine Benefits
Qualitative Machine Benefits
- Display: 10. 4" with ascii keyboard
- Job shop package for siemens 828d
- Signal lamp: 4 colours
- Screen text language: german/english
- Chip conveyor scraper type chip conveyor
- 20 bar pump installed on the chip conveyor
Technical Machine Benefits
- Internal coolant supply: 20 bar
- Bed flushing: via m-function
- Torque: 83 nm (40% dc) 57 nm (100% dc)
- Tool clamping force: sk40: 10 kn (+2/-1 kn)
- Tank capacity: 200 l
- 10,000 spindle hours
Extra Information
Machine still under power.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
