DMG MORI - EcoTurn 450PL-TUR-DMG-2015-00002
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- DMG MORI EcoTurn 450 Lathe
Show in original language

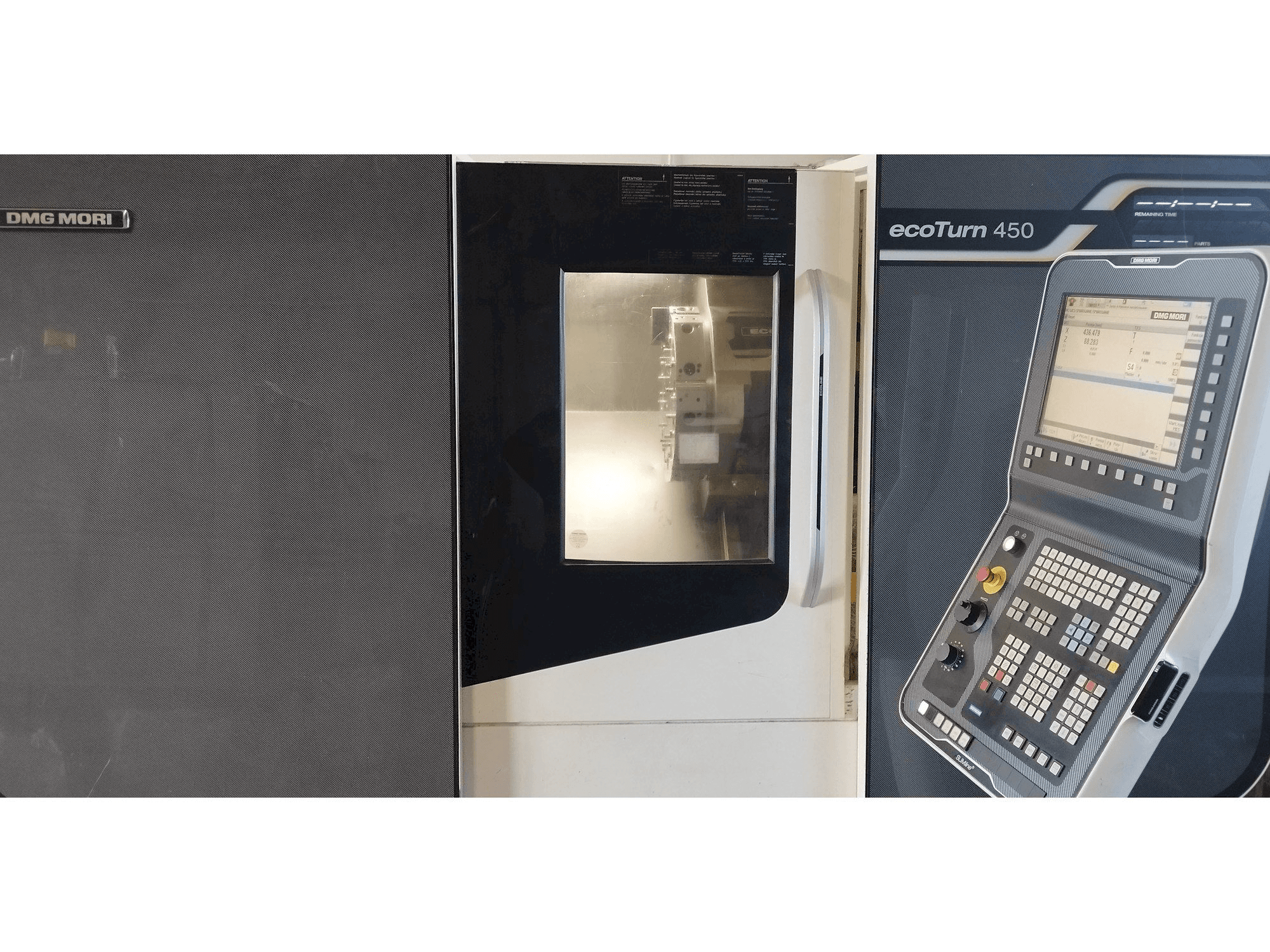

This DMG MORI EcoTurn 450 Lathe was made in 2015 and has 8055 production hours, of which 4360 are spindle hours. It is equipped with a DMG MORI SIEMENS 840D / SLIMline control unit and has 2 axis. The machine has a spindle speed of 4000 rpm, is in good condition and well maintained.
Overview
- brand: DMG MORI
- year: 2015
- MODEL: EcoTurn 450
- production hours: 8055
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
Technical Information - DMG MORI EcoTurn 450
Dimensions
- Machine Depth: 2440 mm
- Machine Height: 1905 mm
- Machine Weight: 5200 kg
Movement
- Number of Axes: 2
- X-axis Travel: 267.5 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Torque (40% / 100% ed) 370 / 280 nm
- Number of driven tools: 12
- Tool interface: vdi 40
- The machine in very good condition ready for test.
Technical Machine Benefits
- Maximum swing: 650 mm
- Swing over cross slides: 465 mm
- Max turning diameter. : 400 mm
- Max turning z axis: 550 mm
- Diameter of collet chucks 250/315 mm
- Spindle tip diameter (flange) fl170 h5 mm
- Spindle passage diameter: 87 mm
- Max bar capacity: 600 mm
- Front bearing diameter :130 mm
- Ac main drive power (40% / 100% ed) 17. 5 / 12. 5 kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
