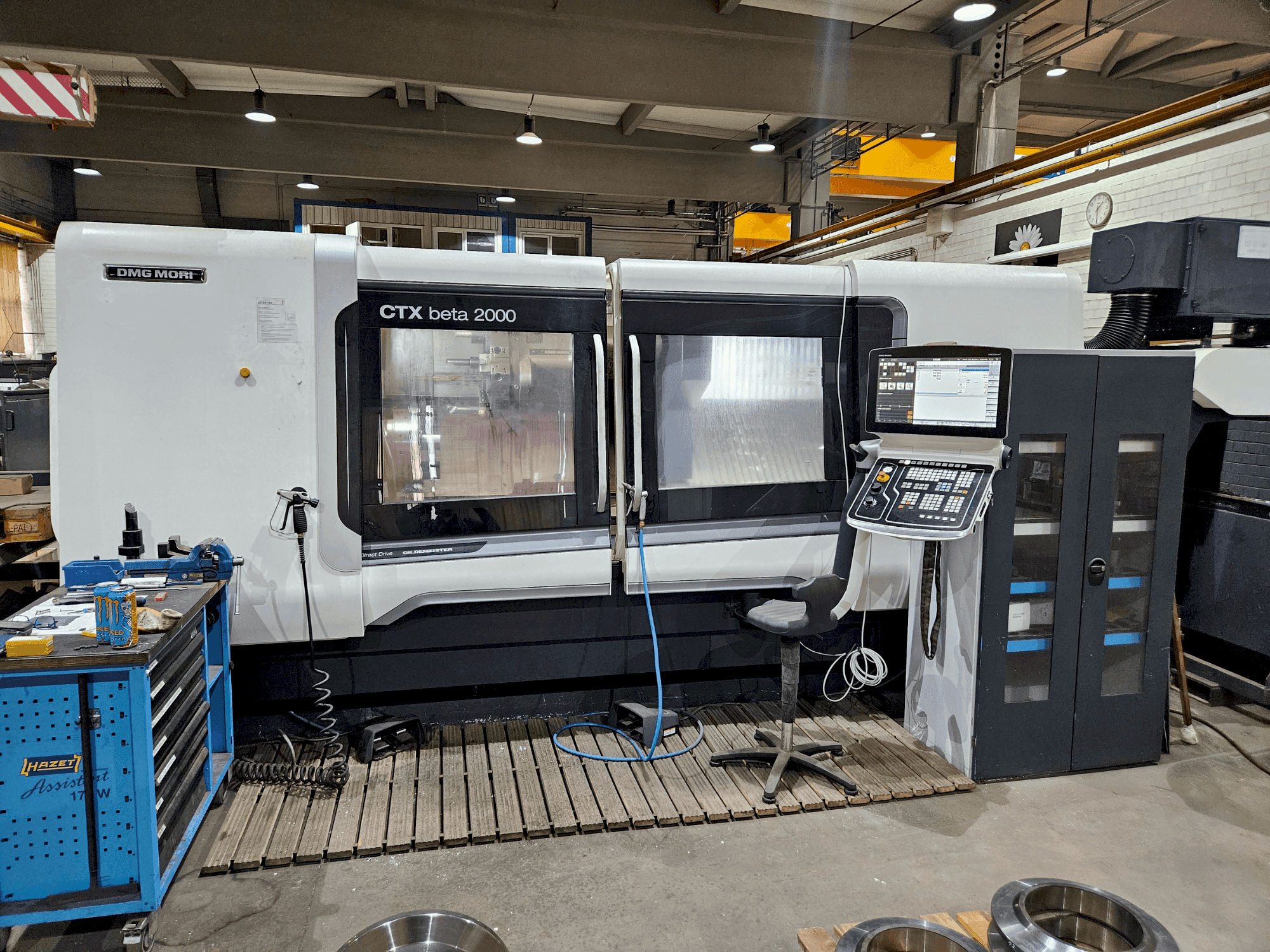

Front view of DMG MORI CTX beta 2000  machine

DMG MORI - CTX beta 2000DE-TUR-DMG-2019-00003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 2-Axis DMG MORI CTX beta 2000 turn-mill centre was manufactured in 2019. It has a turning length of 2000 mm and a turning diameter of 600 mm. Equipped with a 12-position Sauter disc turret, VDI 50 holder, and tool drive, it also includes a hinged belt chip conveyor. If you are looking to get high-quality turning capabilities, consider the DMG MORI CTX beta 2000 machine we have for sale. Contact us for more information.

Overview

  • brand: DMG MORI
  • year: 2019
  • MODEL: CTX beta 2000
  • application type: Turning
  • Location: Germany
  • machine type: Turn-Mill Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - DMG MORI CTX beta 2000

Control Unit

  • Brand: SIEMENS
  • Model: 840D

Main drive

  • Spindle speed range: 4000 1/MIN
  • Number of axis: 2

Turret

  • Number of turrets: 12-position Sauter disc turret
  • Tool taper: VDI 50

    Additional Equipment

    • - Hinged belt chip conveyor incl. coolant tank
    • - Tool drive included
    • - Coolant spray gun
    • - Reinforced coolant pump 12 bar, with flow rate of 23 l/min
    • - Mechanical oil mist separator 1100 m³/h, filter class H13
    • - Double switching filter with filter elements, filtration group or Hydac, standard filter fineness: 50µm
    • - Screen cleaning of the safety screen of the work area door with compressed air
    • - DMG MORI IoT connector
    • - DMG MORI Messenger V2
    • - Renishaw RP3 (Tool measurement system)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Turning diameter: up to 600 mm
        • - Turning length: 2000 mm
        • - Celos® with siemens 840d sl operate
        • - Three-jaw power chuck with bore hole and quick jaw change system, type thw 400 - 120
        • - Direct measuring system in the x-axis
        • - Tailstock group with tailstock displacement through automatic coupling to the z-axis slide / the machine has a tailstock. A steady rest is not included
        • - Hydraulic quill
        • - Drawtube inner Ø 102 mm
        • - Partial hollow clamping device (hydr. )
      • Qualitative Machine Benefits:
        • - C-axis and spindle brake (hydr. )
        • - Technology cycle alternating

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
