DMG MORI - CMX 50UDE-MIL-DMG-2019-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI CMX 50U For Sale | gindumac.com

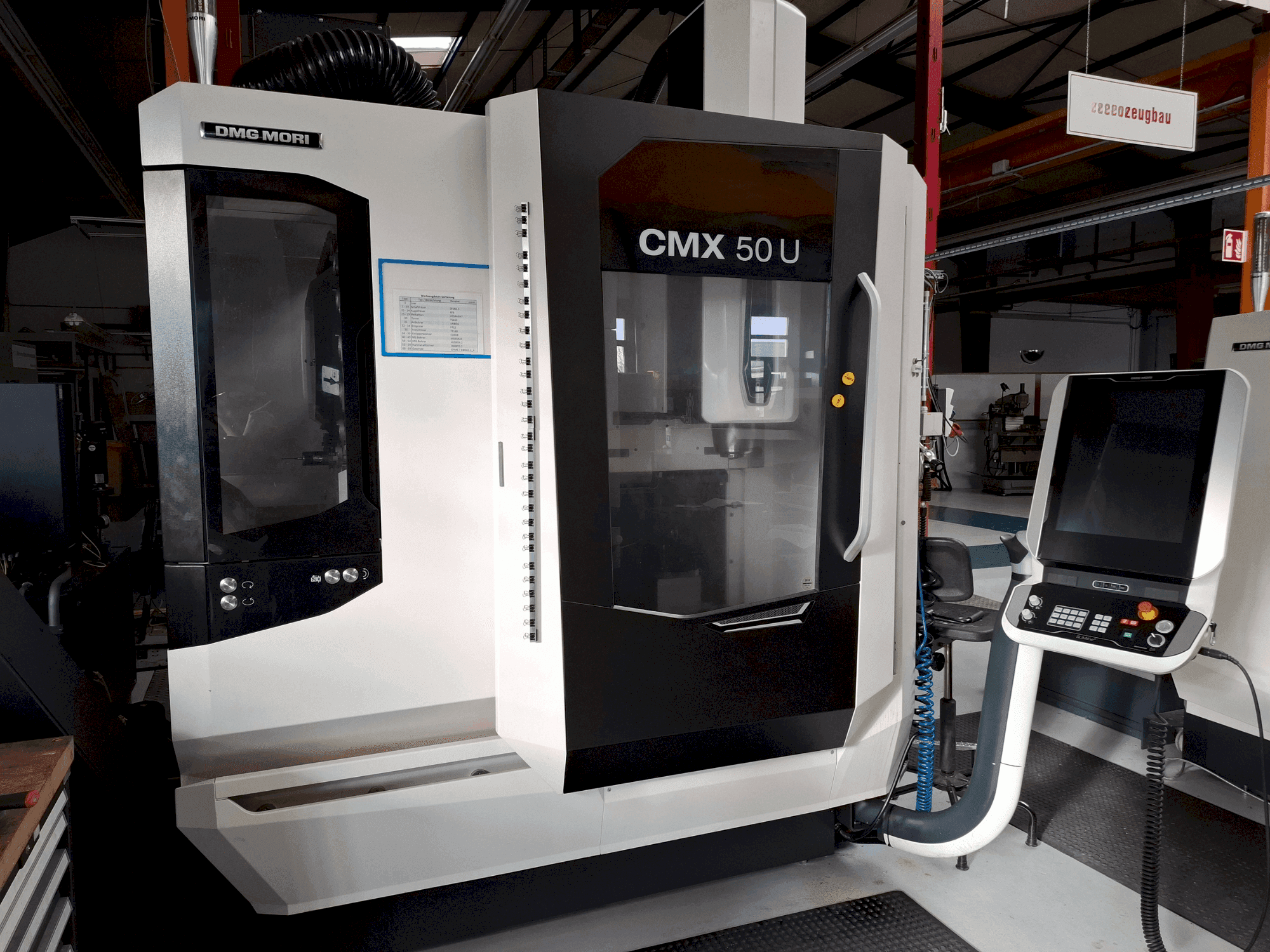

This 5-axis DMG MORI CMX 50U vertical machining center was manufactured in 2019. If you are looking to get high-quality milling capabilities, consider the DMG MORI CMX 50U machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: CMX 50U
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - DMG MORI CMX 50U
Dimensions
- Machine Depth: 2910 mm
- Machine Height: 2710 mm
- Machine Weight: 4700 kg
Movement
- B-axis Max: 110°
- B-axis Min: 5°
- C-axis: 360°
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
Additional Information
Additional equipment
- Coolant Spray Gun
- Infrared Measurement Probe
- Paper Band Filter with Tank Capacity 600L
- Chip Conveyor (Scraper Band) with Tank Capacity 250L (Left)
- Internal Coolant Supply 40 Bar
- Bed and ATC (Automatic Tool Changer) Flushing via M-function
- Oil and Emulsion Mist Separator
- Cabin Roof
- Blow Air through Spindle Center (can be activated)
Machine Benefits
Technical Machine Benefits
- Tool magazine for 30 tools with double gripper
- Speed range: continuously programmable (20–12000 rpm)
- Rated power (100% duty cycle): 9 kw
- Maximum spindle torque (40% duty cycle): 83 nm
- Rated torque (100% duty cycle): 57 nm
- Feed rate up to 30000 mm/min (continuously programmable)
- Rapid traverse: 30 m/min
- Footprint (l × w): 5500 × 6020 mm
Extra Information
Chip Conveyor: Dimensions: Length: 3070 mm, Width with coolant tank: 1636 mm, Height: 1360 mm Weight: 525 kg Tank Capacity: 250 liters Belt Filter System: Dimensions: Length: 1816 mm, Width: 1331 mm, Height: 1803 mm Filling volume: 600 liters Internal Coolant Supply: Pressure: 40 bar Flow rate: 19 l/min Oil/Emulsion Mist Separator: Dimensions: Length: 778 mm, Width: 400 mm, Height: 520 mm Weight: 50 kg Airflow: 600 m³/h Motor Power: 0.5 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
