➤ Used DMG MORI CMX 1100 V For Sale | gindumac.com

Show in original language

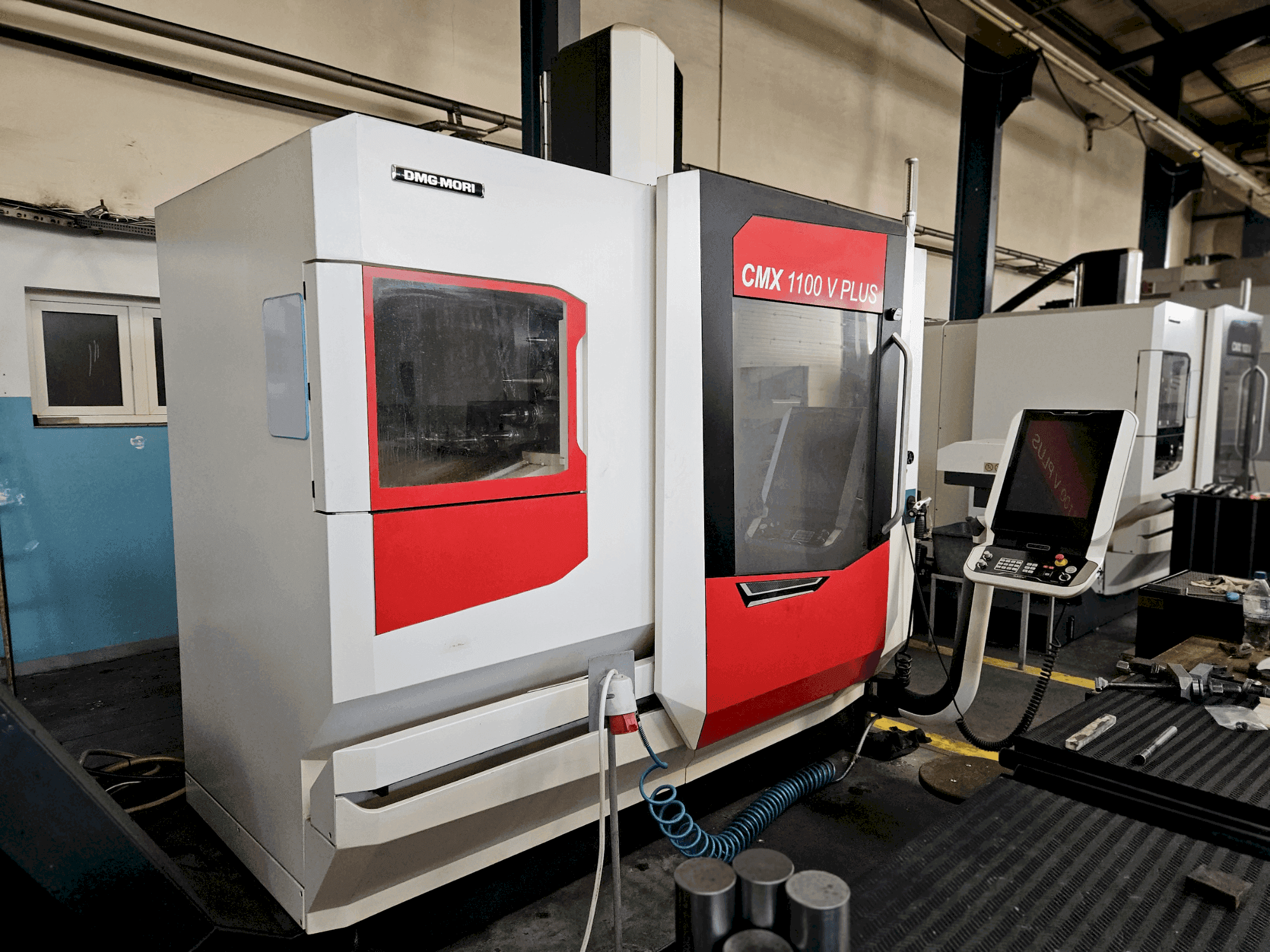

This 3-axis DMG MORI CMX 1100 V was manufactured in 2019 and features a robust C-Frame design. It offers a spindle speed range of 20 to 12000 rpm and a power output of 13 kW. The machine has a large table clamping surface of 1400 x 560 mm and can handle a maximum load of 1000 kg. Ideal for precision machining, buy this DMG MORI CMX 1100 V vertical machining centre. The machine is official DMG's colours black and white, the red part is a foil which can be easyly removed. Contact us for further details regarding this vertical machining centre.

Overview

brand: DMG MORI
year: 2019
MODEL: CMX 1100 V
production hours: 13143
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - DMG MORI CMX 1100 V

Control Unit

Model: 19″ DMG MORI SLIMline with HEIDENHAIN

Main drive

Spindle speed range: 20-12000 1/MIN
Spindle motor power: 13 kW (40% ED), 9 kW (100% ED)
Tool taper: SK40 DIN69871

Movement

X-AXIS Movement: 1100 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1400 mm
Outer width: 560 mm
Min distance between vertical spindle and table: 120 mm
Max distance between vertical spindle and table: 630 mm
Table load: 1000 kg

Clamping unit

Clamping force: 9 kN

Additional Equipment

- Tool Magazine: 30-position chain magazine with double gripper
- Internal coolant supply at 12 bar
- Machine Protection Control: MPC 2.0
- Tool Probe with calibration pin for the tool probe
- Handwheel
- Coolan Flushing Gun
- 4-color signal lamp
- Scraper-type chip conveyor with a 250-liter tank (left side)
- Work area flushing with M function
- Automatic roof for the work area (controlled by M function)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C-frame mechanical design
- - Torque: 83 nm (40% ed), 57 nm (100% ed)
- - Direct measuring system for x, y, z axes: includes linear scales with air purge for the measurement system
- - Working hours: power on 13143h, spindle: 5404h

Extra information

- The machine is safely stored in a warehouse. Before disassembly, the machine was thoroughly inspected by the service team. A service report with geometry measurements is available. The equipment includes a tool probe, handwheel, chip flushing gun, and calibration pin for the tool measurement probe. The workpiece probe is not included.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
