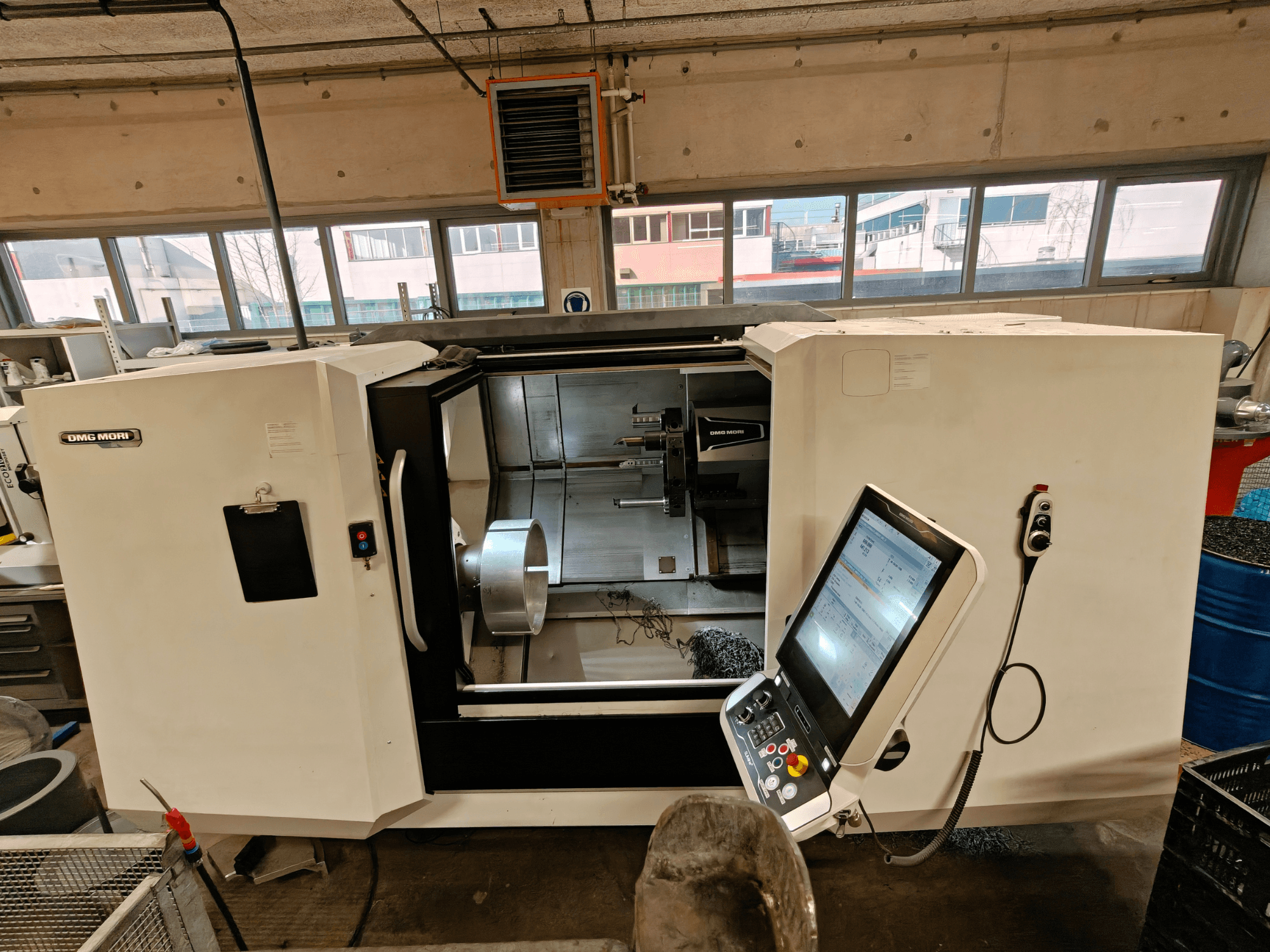

Horizontal turning machine manufactured in 2021. This DMG MORI CLX 550 features a maximum turning diameter of 480 mm and a turning length of 1,240 mm. It is equipped with a 12-position turret and a maximum spindle speed of 3,250 rpm. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 550 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: DMG MORI
- year: 2021
- MODEL: CLX 550
- production hours: 489
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- Available from: 31/10/2026
- control unit brand: SIEMENS
Technical Information - DMG MORI CLX 550
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 33 kW
- Spindle Speed: 3250 RPM
Additional Information
Main spindle
Spindle type: A2-8", AC motor
Max. torque: 630 Nm (40% duty cycle)
Bar capacity: Ø 80 mm
Working range and capacity
Max. turning diameter: 480 mm
Max. turning length: 1,240 mm
Rapid traverse (X/Z): 30 m/min
Axes: Linear guideways in all axes (size 45 mm)
Bed: Improved bed construction for stability
Tooling and turret
Turret type: VDI 40
Stations: 12-position turret (one position defect) + 6 BT stations
Measuring system: Direct measuring system for the X-axis
Control and software
Control panel: DMG MORI SLIMline Multi-Touch
CNC: 19" SIEMENS 840D
Software: ShopTurn, 3D control technology
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
